1. INSTALLATION

1.1 Mounting the Loud Hailer

The Loud Hailer can be mounted on a desktop, on the overhead, on a bulkhead or flush
mounted in a panel (optional kit required). Refer to the mounting template (supplied) for
installation instructions.
Mounting considerations
When planning the location for the Loud Hailer, keep in the mind the following
considerations.
Locate the unit where the front panel can be easily viewed and operated.
Leave sufficient space at the sides and rear of your unit for ease of maintenance.
Locate the unit as near to the power source as possible.
The location should be out of direct sunlight because of heat that can build up inside the
cabinet.
Choose a location not subject to rain and salt spray.
Locate the unit well away from sources of noise such as motors, alternators and
generators.
Mounting procedure
Desktop, bulkhead, overhead mounting

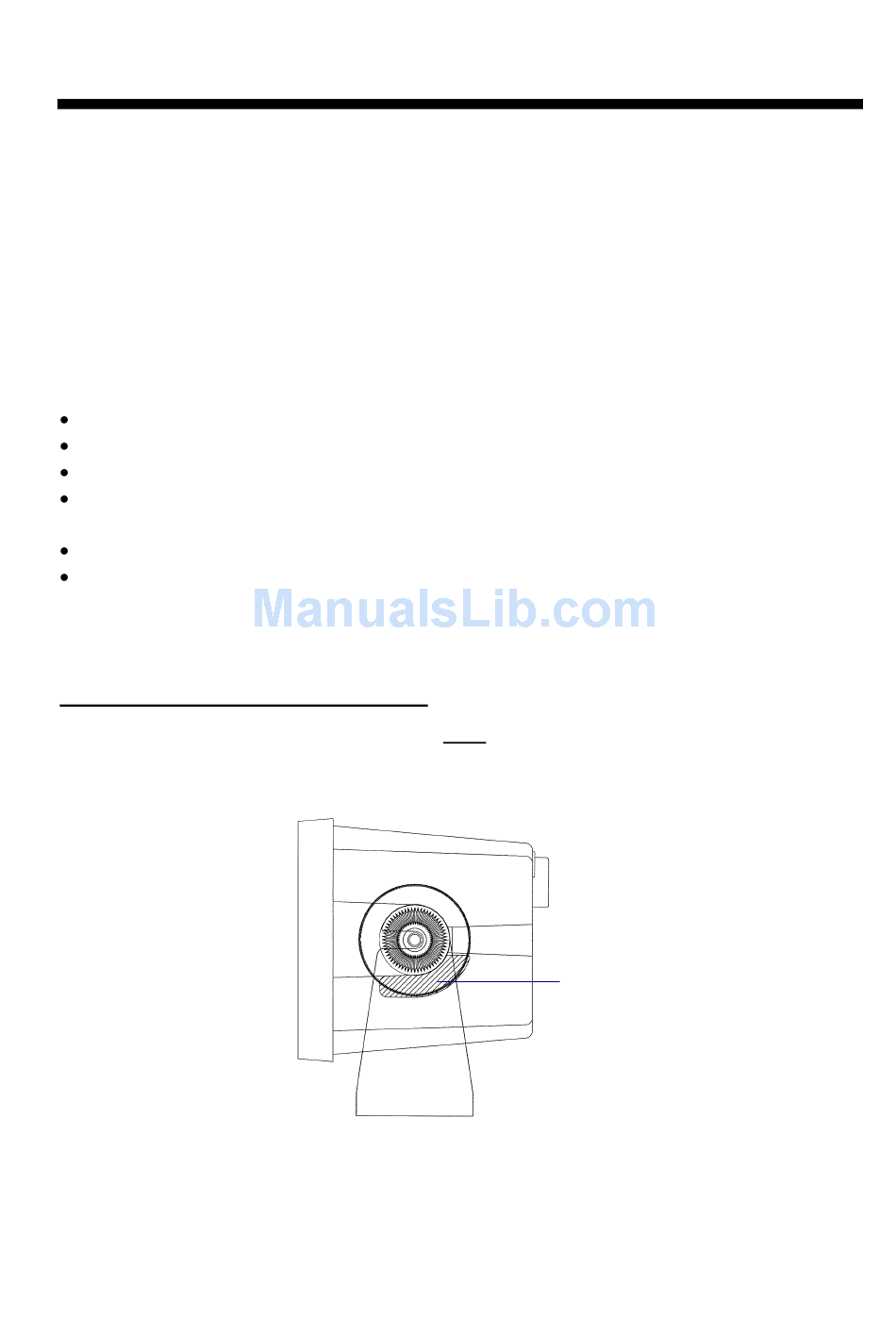

1. Attach rubber cushions (supplied) to the body of the Loud Hailer. Position the cushions
so they locate across from the bottom of the slot in the hanger regardless of mounting
method.
2. Fix the hanger to the mounting location with tapping screws (6x20).
3. Screw knob bolts into the Loud Hailer.
4. Set the Loud Hailer to the hanger and tighten knob bolts.
Rubber
cushion
1
