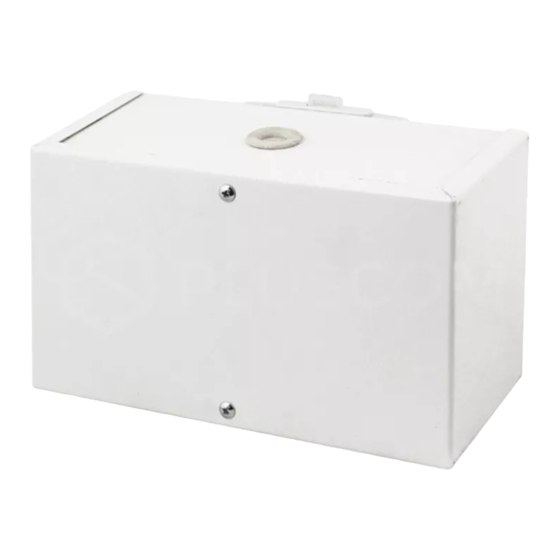

Metal casings for 12v battery (sealed lead acid)

Advertisement

1. Przeznaczenie:
Obudowy AWO417 zaprojektowane zostały jako elementy systemów SSWiN, KD, itp.
Przeznaczone są do montażu:
Akumulatora 12V (bezobsługowe akumulatory ołowiowo-kwasowe, szczelne: SLA)
2. Montaż:
Obudowa przeznaczona jest do montażu przez wykwalifikowanego instalatora, posiadającego odpowiednie
wymagane i konieczne dla danego kraju) zezwolenia i uprawnienia do ingerencji w instalacje niskonapięciowe.
Obudowa (+PCB) powinna być montowana w pomieszczeniach zamkniętych, o normalnej wilgotności powietrza
(RH=90% maks. bez kondensacji) i temperaturze z zakresu -10°C do +40°C.
Używane w systemach alarmowych akumulatory zawierają ołów. Zużytych akumulatorów nie
wolno wyrzucać, należy z nimi postępować w sposób zgodny z obowiązującymi przepisami.
1. Zamontować obudowę w dedykowanym miejscu i doprowadzić przewody połączeniowe i sygnałowe poprzez przepusty
kablowe.
2. Zamontować w obudowie akumulator.
3. Wykonać połączenia wymagane dla danego typu urządzenia/systemu.
Uwagi: zgodnie z wymaganiami i zaleceniami producenta.
4. Wykonać uruchomienie, regulacje lub konfiguracje: zgodnie z procedurą producenta systemu.
5. Po instalacji i uruchomieniu systemu należy zamknąć obudowę.

1. Destination:

The AWO417 metal casings are designed as components in intruders alarms, access control systems, security
systems etc. There are intended for installation:
Battery 12V (sealed lead acid –SLA battery technologie's)

2. Installation:

The metal casing must be installed by a qualified installer, holding the relevant certificates, required and
necessary in the particular country for connecting (interfering with) low-voltage installations.
The casing should be installed indoors, where air humidity is normal (RH=90% max. without condensation) and
temperature in the range of -10°C do +40°C.
Caution!
The batteries used in the alarm systems contain lead. When used-up, the batteries must
not
Obudowy metalowe dla akumulatorów 12V (ołowiowe-kwasowe, suche)
Metal casings for 12V battery (Sealed Lead Acid)
be thrown away, but disposed of as required by the existing regulations
Kod / Code: AWO 417
Nazwa/ Name: AK 7Ah/DIN
IM 417
Wydanie: 1 z dnia 16.02.2009
Zastępuje wydanie:-------------
