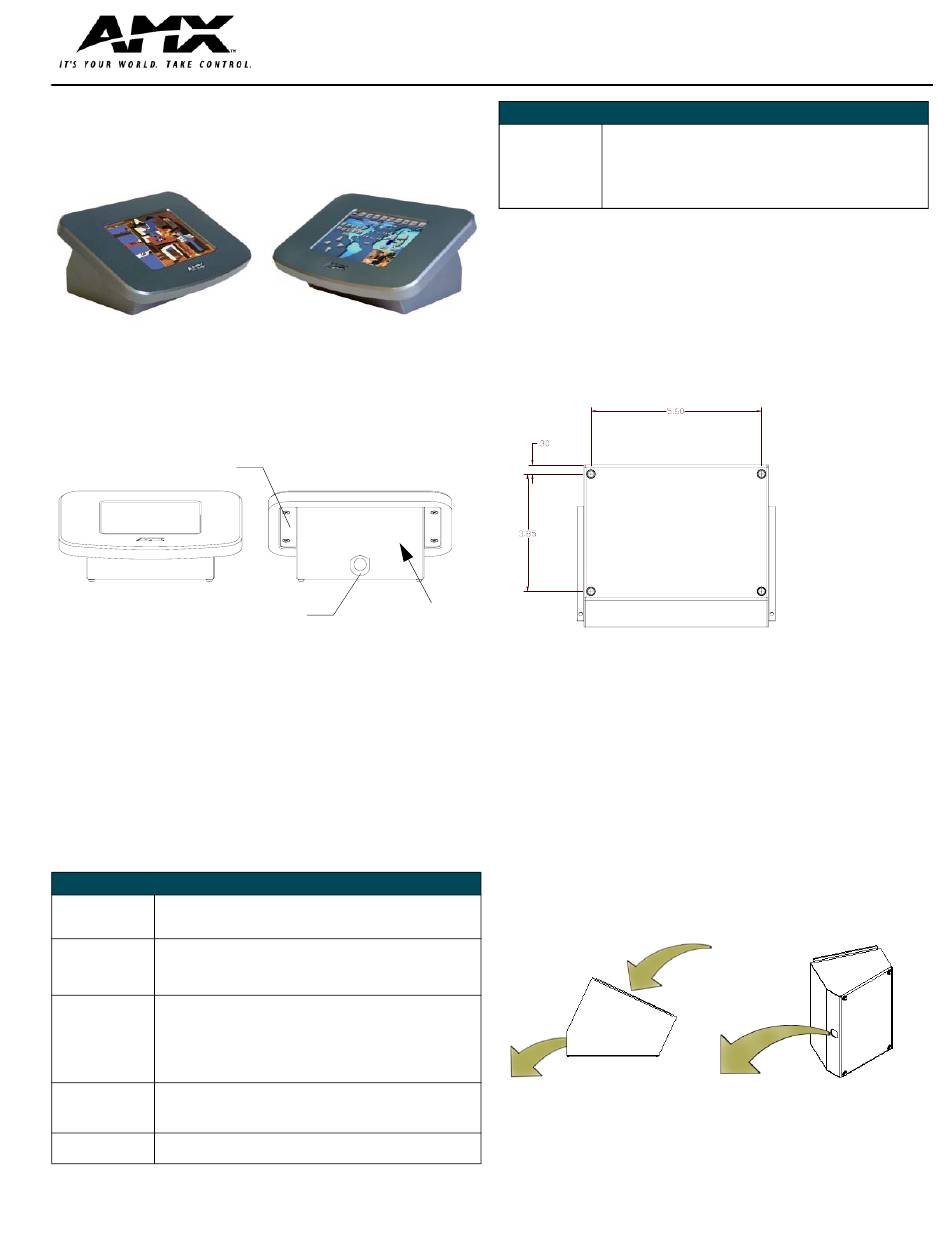

AMX AC-CV6T Quick Start Manual

ATTENTION: READ THIS FIRST!
For more detailed installation, configuration, and operating instructions,
refer to the 6" Color Video Touch Panels Instruction Manual available on-
line at www.amx.com.
Sample Dark Grey
FIG. 1
AC-CV6T Enclosure (CV6 unit inserted within)
Overview
The CV6T is designed to be used on any flat/level surface. The AC-CV6T
(FIG. 2) is a metallic tabletop enclosure that encases the CV6 touch panel
and allows its use on a wide variety of horizontal surfaces.
Mounting blocks (2)
Strain relief/cable
insertion location
FIG. 2
AC-CV6T Enclosure
CAUTION:
Finishing Instructions for Aluminum AC-CV6T (FG5924-22).
Surface preparation for the Aluminum CV6T is very important.
The unfinished aluminum version of the AC-CV6T is supplied with
a sanded, non-coated aluminum bezel, aluminum panel mounting
blocks, and a stainless steel base enclosure. Please consult a
qualified painter for the appropriate surface treatment compatible
with the end users desired topcoat. Feet installation is done after
the painting process is completed.
Specifications
AC-CV6T Specifications
Dimensions (HWD):
AC-CV6T • Faceplate: 6.47" x 8.69" x 0.60" (16.43 cm x 22.07 cm x 1.52 cm)
(FG5924-20/21/22) • Base Enclosure: 3.84" x 6.50" x 4.45" (9.75 cm x 16.51 cm x 11.30 cm)
Weight:
Enclosure with • 11.49 lbs. (5.21 kg)
AXD-CV6
Enclosure only • 3.75 lbs. (1.70 kg)
Enclosure • Metal enclosure and removable front panel bezel (matching colors):
Dark Grey matte finish (FG5924-20)
Platinum matte finish (FG5924-21)
Unfinished Aluminum (FG5924-22) Aluminum version of enclosure is
unpainted so as to provide easier preparation for custom painting
options.
Refer to the instruction manual for detailed Unfinished Aluminum
painting requirements and procedures.
Rear Connectors • All cable connectors are routed out from the enclosure via a hole
located on the rear of the unit
• Internal connections are made to the AXD-CV6 rear connectors via an
AC-CV6T tabletop cable.
Compatibility • AXD-CV6 White Video Touch Panel (FG5924-10)
• AXD-CV6 Black Video Touch Panel (FG5924-11)
Sample Platinum
Base enclosure
AC-CV6T
Accessory Tabletop Enclosure Kit
AC-CV6T Specifications (Cont.)
Included Accessories • 2 Mounting blocks (attach the bezel to the base)
• 4 Mounting screws
• 10' (3.05 meters) AC-CV6T Tabletop cable (Video/AXlink cable combo)
(64-5924). Uses BNC and mini-Phoenix AXlink connectors
• 1 BNC connector (for use in terminating the Red mini-coax cable)
(41-1077)
• 1 black strain relief (secures tabletop cable to enclosure) (45-0004-02)
Setup of the AC-CV6T Tabletop Enclosure
The following sections describe the setup procedures for installing the AXD
touch panel into a tabletop enclosure. The enclosure works by encasing an
existing AXD-CV6 touch panel and using a tabletop cable (AXlink/Video) to
connect the unit to both a Master Controller and video sources.
Aluminum Feet Placement
The feet on and Alimunin Tabletop Enclosure sould be installed only after
the unit has been painted and allowed to dry properly. Refer to the FIG. 3
for the underside feet installation locations.
FIG. 3
Aluminum feet installation locations (underside view)
Installing the Wall Mount panel into a Tabletop Enclosure (AC-CV6T)
The CV6T enclosure is an optional metallic housing that is used to mount
the base CV6 LCD touch panel onto a horizontally flat surface. The
enclosure uses a plastic strain relief to secure the tabletop cable to the
enclosure.
To install Wall Mount touch panels into an AC-CV6T enclosure:
1. Remove the coiled 10-foot (3.05 m) tabletop cable and accessory bag
from within the enclosure.
2. Confirm that all of the included accessories are present in the box.
Refer to the Specifications AC-CV6T Enclosure table for content
information.
3. Uncoil the cable and thread the non-terminated end of the tabletop
cable into the enclosure and then out through the rear opening
(FIG. 4)
FIG. 4
Threading the tabletop cable through the base enclosure
4. Continue to thread the cable through the strain relief opening until the
heat shrink tubing is located outside of the enclosure. Refer to FIG. 5
for the final position of the strain relief/cable combo.
Quick Start Guide
Measurement given
in inches
