Summary of Contents for Celestron ASTROMASTER LT 70 AZ

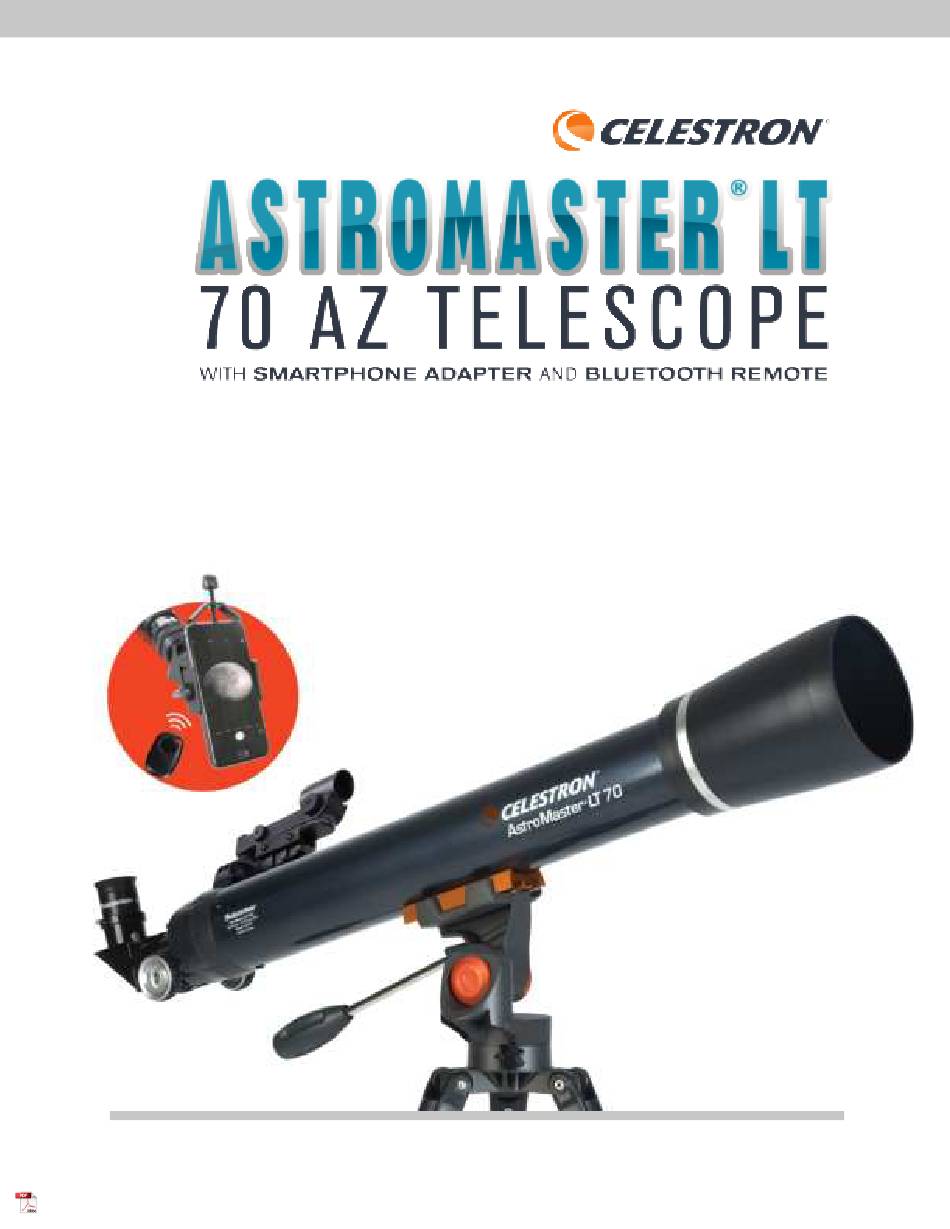

- Page 1 QUICK SETUP GUIDE #22109...
- Page 2 #22109 Unpack your telescope and verify that all parts are present. To set up the tripod, spread the legs outward until they Use the three tightening screws located at the bottom of each Your AstroMaster LT 70AZ includes: a telescope tube, a are fully extended.
- Page 3 Loosen the thumbscrews on the focuser and remove the cap. Insert the diagonal into the focuser and tighten the set Loosen the set screw on the diagonal, then insert the chrome Make sure the two thumbscrews do not protrude into the screws.
- Page 4 USING THE SMARTPHONE ADAPTER Open the eyepiece clamp and place it around the body of the Use the phone clamp knob to open the phone holder so Turn on the phone and open your camera app. Make sure eyepiece. Tighten the clamp until it’s secure. that your phone fits inside.
-
Page 5: Bluetooth Remote
USING THE BLUETOOTH REMOTE To insert or replace the battery, place your thumb in Press and hold the button on the remote for 5 seconds. A blue Using the Bluetooth settings on your phone, pair the the center of the back cover, pressing inward and sliding light will turn on and, after a few seconds, start to blink. - Page 6 ALIGNING THE FINDERSCOPE The finder is one of the most important parts of your telescope. It helps you locate objects and center them in the eyepiece. The first time you assemble your telescope, you need to align the finder to the telescope’s main optics. It’s best to do this during the day*.
- Page 7 You may need to adjust the focus knobs when you change eyepieces, to make sure you are getting the sharpest Celestron’s free SkyPortal app for iOS and Android can image possible. help you locate and identify a wide array of celestial...
-
Page 8: Safety Instructions
Product design and specifications are subject to change without prior notification. This product is designed and intended for use by those 14 years of age and older. ©2021 Celestron, Celestron and Symbol are trademarks of Celestron, LLC • All Rights Reserved • celestron.com • Torrance CA 90503 USA For more information on this product or to download the instruction manual, please visit the respective product page on celestron.com...
