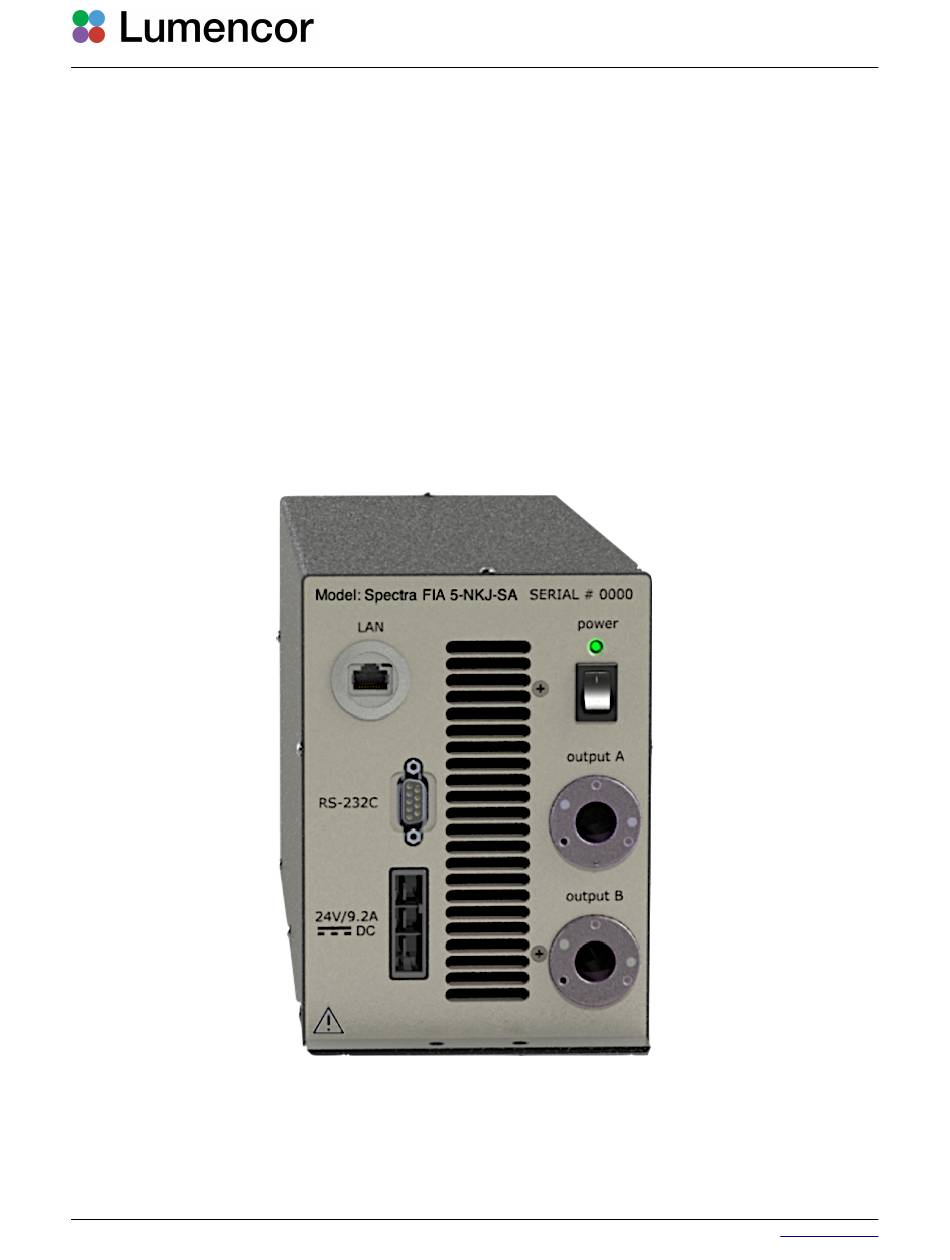

- Page 1 Lumencor Light Engine Manual SPECTRA FIA Light Engine lumencor.com SPECTRA FIA Light Engine Manual 57-10008...
- Page 2 April 20th, 2020 Operational Specifications) 57-10008 Spectra FIA 033118 March 31st, 2020 Create a new entry Lumencor, Inc. | 14940 NW Greenbrier Parkway | Beaverton, OR 97006 USA | 503.213.4269 | www.lumencor.com Revision C 011822 lumencor.com SPECTRA FIA Light Engine Manual 57-10008...
-
Page 3: Table Of Contents
1. Introduction 2. Precautions and Warnings 3. Installation and Operating Instructions 4. Spectral Distribution and Power Output 5. Temporal Response 6. Operational Specifications 7. Routine Maintenance and Trouble Shooting 8. Customer Support 9. Warranty lumencor.com SPECTRA FIA Light Engine Manual 57-10008... -
Page 4: Introduction
The Spectra FIA light engine can either be controlled by a Lumencor GUI or by a LAN connection to an onboard computer with an embedded command library. -
Page 5: Precautions And Warnings
Warning: DO NOT turn on the light without the output end of the light guide safely directed into an enclosed optical path. DO NOT point the light output directly onto any flammable or burn-susceptible material. This includes all animal or vegetable tissues, plastics, fabrics, paper and liquids. lumencor.com SPECTRA FIA Light Engine Manual 57-10008... - Page 6 Attention: NE PAS laisser tomber la source lumineuse. Elle contient des composants optiques en verre susceptibles d’être endommagés ou désalignés par le choc résultant d’une chute sur une surface dure. DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the Spectra FIA light engine being used in a way for which it was not intended and in complete disregard for ®...
- Page 7 Figure 2. Example identification label located NOTE: Any end-product/system incorporating or coupled to a on rear panel of the Spectra FIA light engine. Lumencor Light Engine shall be fully evaluated to verify all applicable safety and regulatory compliance requirements prior to use. lumencor.com...

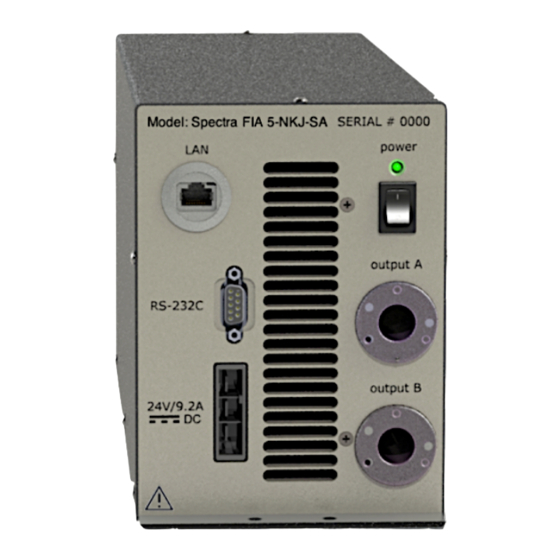

- Page 8 Connect the DC power supply to the power input port (front panel, lower left corner) using the DC power cable (Lumencor part number 29-10098 or 29-10103). See Figure 2 for pin connections. Position the unit in such an orientation that allows unrestricted access to the DC power connector. In an emergency, you may ned to disconnect power to the unit quickly.
- Page 9 fiber bundle is safely directed into an enclosed optical path (e.g. a beam dump). The Spectra FIA light engine ® either be controlled by a Lumencor GUI or via the built in library of software commands. A complete listing of the commands is provided in the Lumencor Light Engine Command Reference (Document Number 57-10018). The software commands can be transmitted via the RS-232 port or the LAN input.
- Page 10 SN8908 Output A Spectra Cyan Green NIR I NIR II Wavelength (nm) Figure 5. Representative spectral output of Spectra FIA light engine lumencor.com SPECTRA FIA Light Engine Manual 57-10008...
-
Page 11: Temporal Response
Figure 6 show the initial trigger of the TCP pulse which is followed by the light pulse turning on or turning off. Figure 6. Temporal response to TCP commands. The oscilloscope trace marked in green represents the light output detected by an analog photodiode. lumencor.com SPECTRA FIA Light Engine Manual 57-10008... -
Page 12: Operational Specifications
A MULCHINT 0 0 0 0 0 The zero-cross point of the light output is between 0.5 and 2.5% intensity setting Zero-cross emission point (see Figure 7). Figure 7. Diagram of light emission zero-cross point. lumencor.com SPECTRA FIA Light Engine Manual 57-10008... -
Page 13: Routine Maintenance And Trouble Shooting
Please be prepared to provide the 4- or 5-digit serial number of the light engine (see Figure 2). Any light engine returned to Lumencor for service requires a manufacturer’s issued return material authorization (RMA) number. An RMA number must be issued before returning a unit to Lumencor. To request an RMA number, fill out and submit the online request form.
