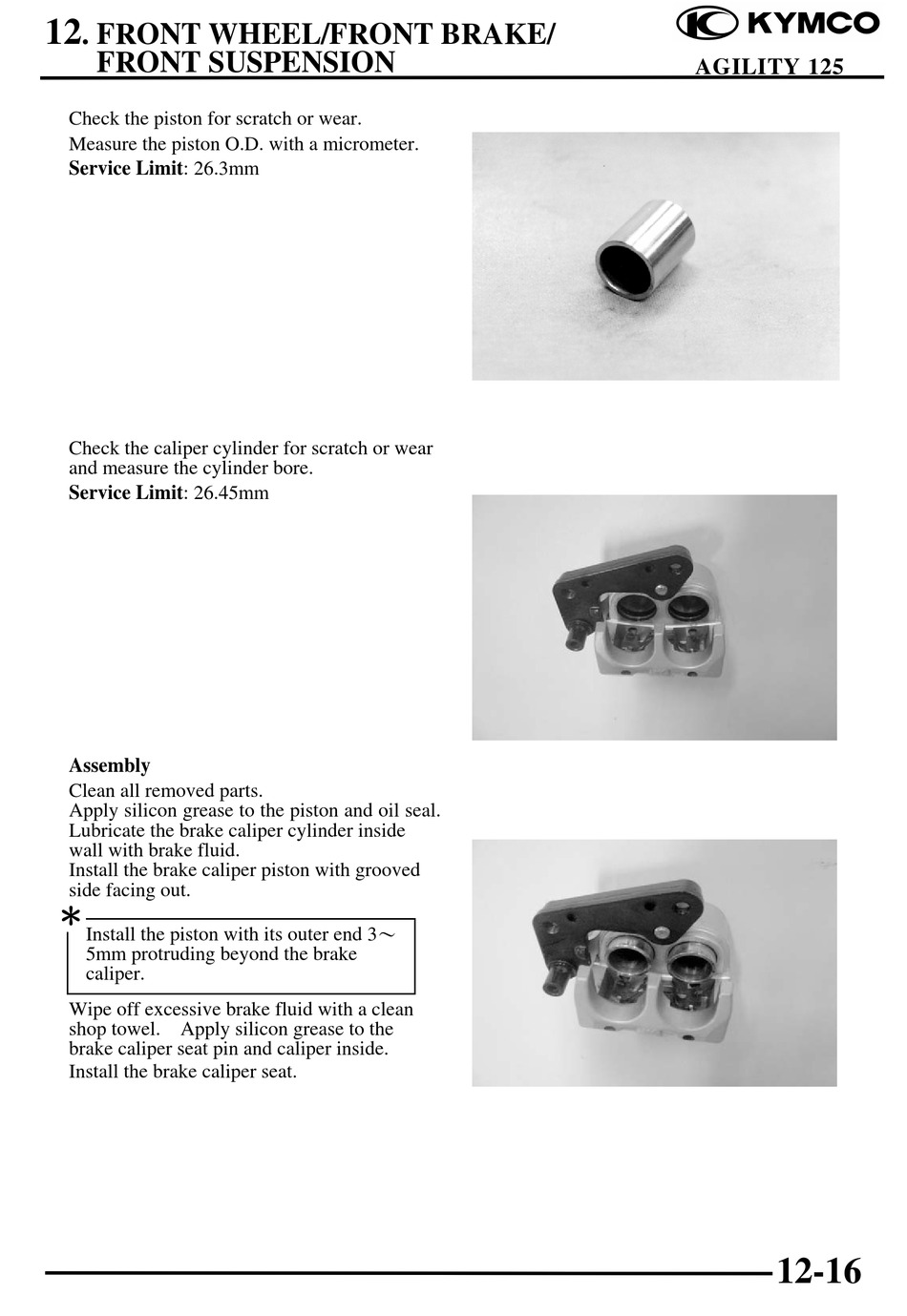

. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION
Check the piston for scratch or wear.
Measure the piston O.D. with a micrometer.
Service Limit: 26.3mm
Check the caliper cylinder for scratch or wear
and measure the cylinder bore.
Service Limit: 26.45mm
Assembly
Clean all removed parts.
Apply silicon grease to the piston and oil seal.
Lubricate the brake caliper cylinder inside
wall with brake fluid.
Install the brake caliper piston with grooved
side facing out.
＊
Install the piston with its outer end 3～
5mm protruding beyond the brake
caliper.
Wipe off excessive brake fluid with a clean
shop towel. Apply silicon grease to the
brake caliper seat pin and caliper inside.
Install the brake caliper seat.
AGILITY 125
12-16
