12

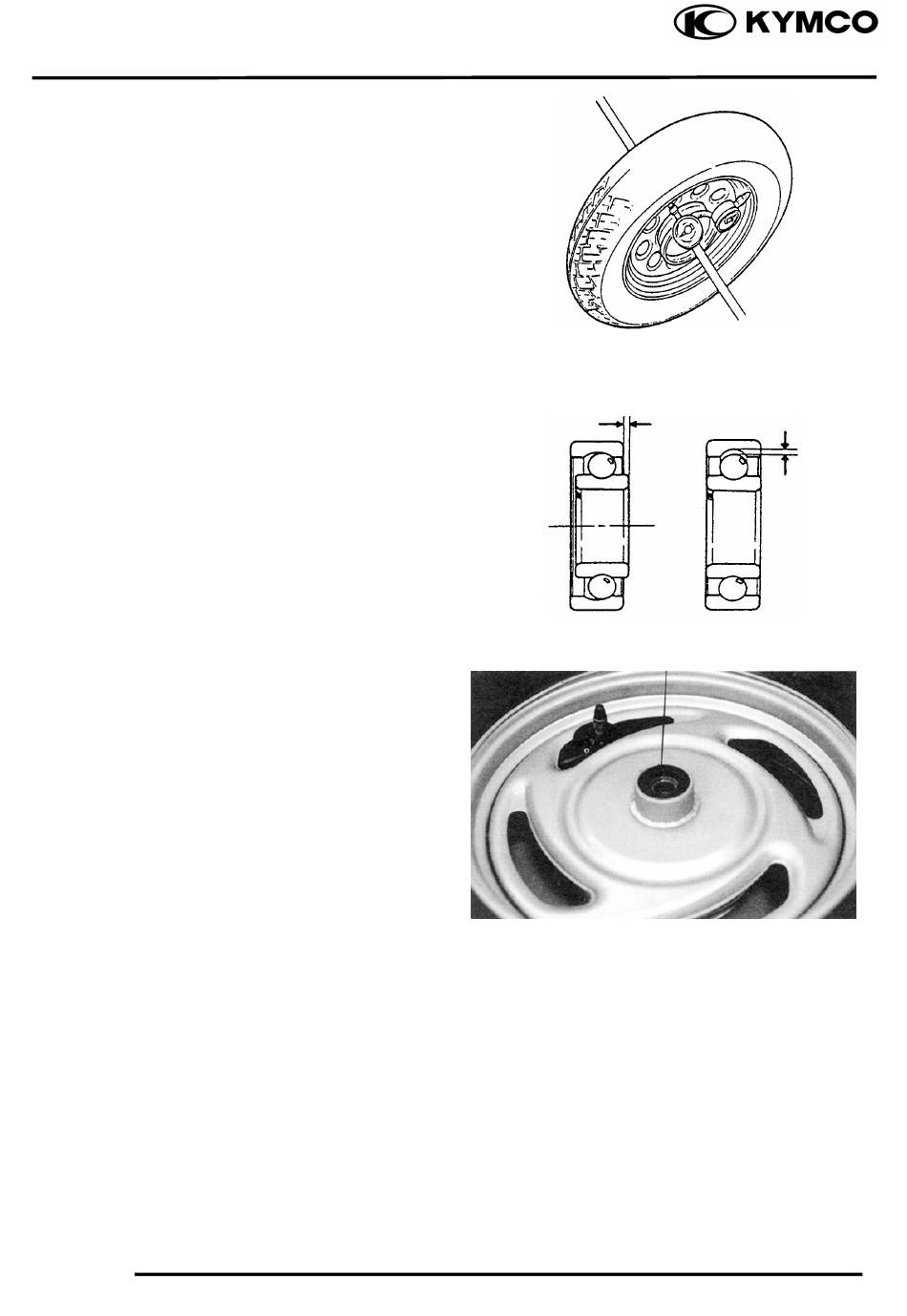

. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION
WHEEL RIM
Check the wheel rim runout.
Service Limits:
Radial: 2.0mm replace if over
Axial: 2.0mm replace if over
Turn the wheel bearings and replace the
bearings if they are noisy or have excessive
play.
DISASSEMBLY
Remove the dust seal.
12-5
Play
Axial
Dust Seal
AGILITY 125
Play
Radial
