30" Dual-Fuel Slide-In Range
Professional

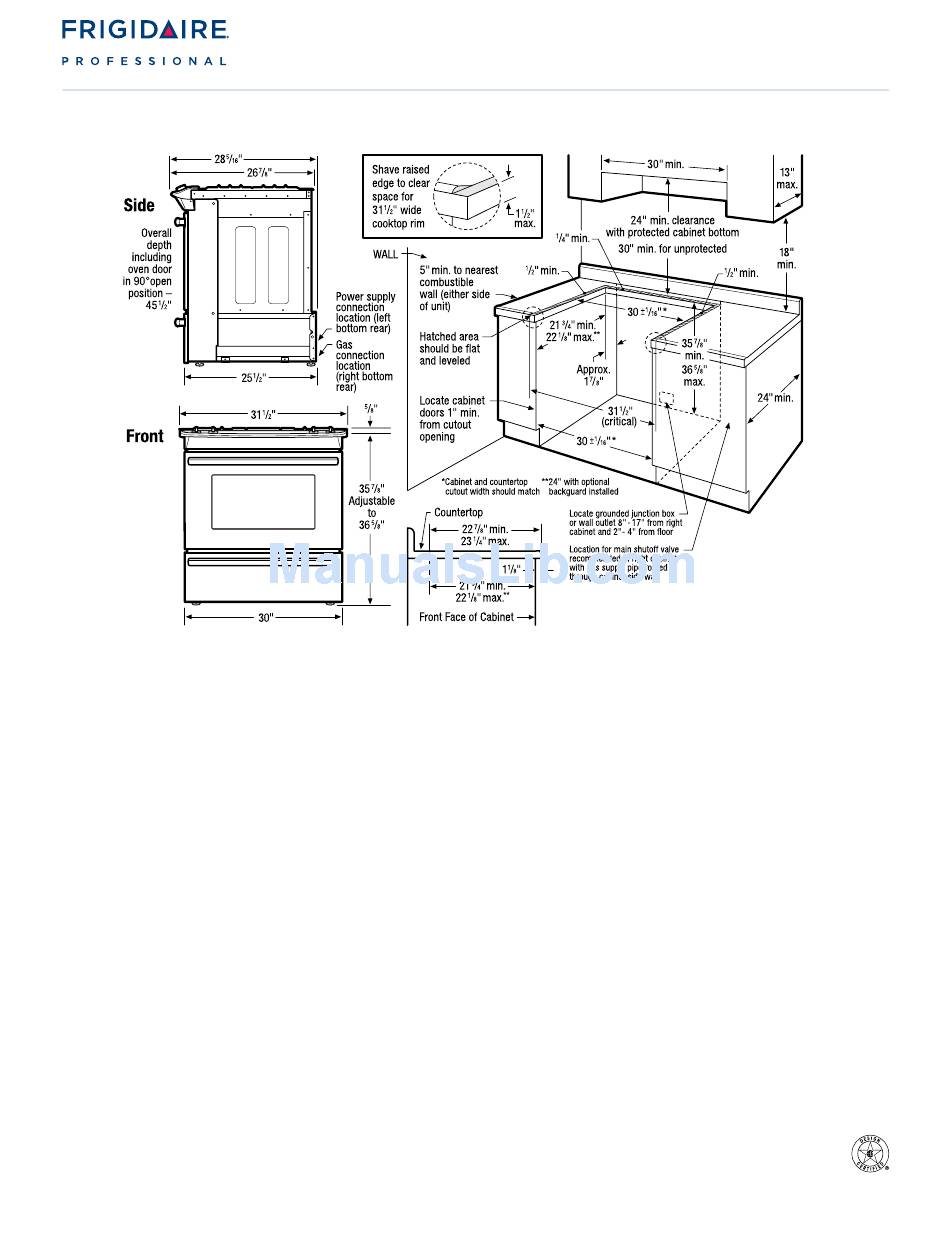

Slide-In Range Specifications
Product Shipping Weight (approx.) – 260 Lbs.
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
Connected Load (kW Rating) @ 240 / 208 Volts = 5.6 / 4.2 kW
Amps @ 240 / 208 Volts = 23 / 20 Amps
Always consult local and national electric and gas codes.
Range ships with 3/4" factory regulator.
LP Gas conversion kit supplied.
Gas supply piping can be routed through side wall of right cabinet.
Right side cabinet is ideal location for main shutoff valve.
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure
metal rangetop flange will fit properly on countertop edge.
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
Overhead cabinetry should not exceed a 13" maximum depth.
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MGS
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
Allow 5" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
FRIGIDAIRE®
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
CPDS3085K 01/11
Countertop Preparation
For detailed preparation instructions, refer to installation guide
on the web.
Flat square-finish (flat) countertop requires no preparation since
rangetop flange lays directly on countertop edge.
Formed front-edged countertops require front molded edge to
be shaved flat 3/4" from each front corner of opening.
Tile countertops may need cut back 3/4" from each front corner
of opening and /or rounded edge flattened.
For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension or for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
Stainless Steel Rear Filler Kit – PN # 901193-901S.
Stainless Steel Side Panel Kit – PN # 903074-901S.
Stainless Steel Backguard Kit – PN # 903046-901S.
Stainless Steel Side Trim Kit – PN # 903075-901S.
1-800-265-8352
frigidaire.ca
© 2011 Electrolux Major Appliances
Slide-In Range
on the web at frigidaire.ca for detailed instructions.
