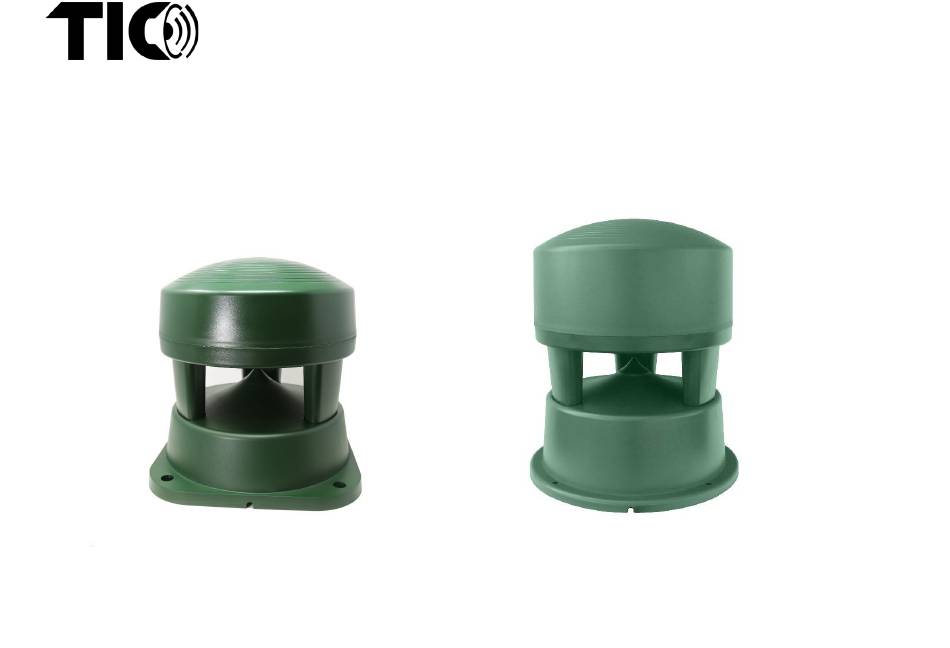

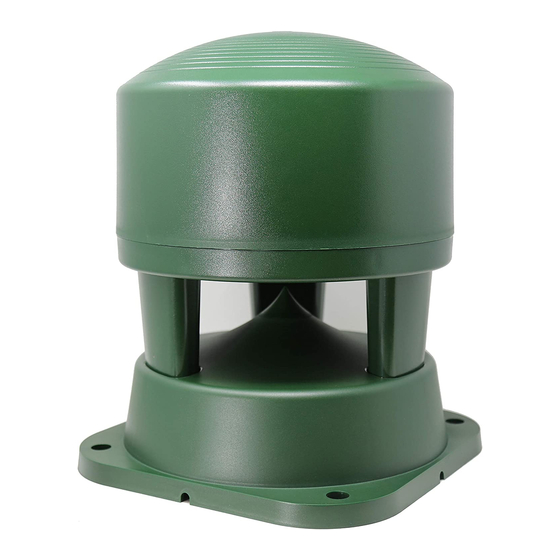

- Page 1 B series Outdoor Omnidirectional In-Ground/Surface-Mount Speaker B06 / B16 B03 / B13 /B50 Instruction Manual B-series Instruction Manual...
- Page 2 Before you begin A passive outdoor loudspeaker system is one of the best audio entertainment investments you can make for both residential and commercial installations. Investing the time and labour to install a wired speaker system will provide the safest and most dependable sound solution that can be easily upgraded and customized over time.
- Page 3 Wiring Diagram Choose the appropriate wiring option depending on your model and overall system design. * Colorized version of wiring diagrams and manual is available on our website (www.ticcorp.com). In typical installations, positive terminals are connected to red wires and negative terminals are connected to black wires.
- Page 4 B-series Instruction Manual...
- Page 5 B-series Instruction Manual...
- Page 6 B-series Instruction Manual...
- Page 7 • The B series is designed to be water-resistant, but not to be fully waterproof. It is not designed to be protected against total water submersion, such as heavy flooding. With the raised, downward facing profile, it’s unlikely for the speaker to be submerged in water under normal rain and snow condition.
- Page 8 70v is the preferred choice in large installations, such as commercial projects, for both PA systems and background music systems. If you are unsure about 70v, please contact TIC or a trusted AV professional for consultation. If you are using B13/B16 with a regular amplifier, please set dial to 8Ω and connect as normal.
- Page 9 Specification by model Type Single Coaxial Singel Coaxial Singel Coaxial Single Coaxial Subwoofer 8” woofer 8” woofer 6” woofer 6” woofer Driver Size 8”subwoofer 2” tweeter 2” tweeter 2” tweeter 2”tweeter Power Handling 100W/200W 75W/150W 100W/200W 75W/150W 125W/250W (RMS/Peak) (8Ω Mode) (8Ω...
- Page 10 TIC Audio Inc./TIC Audio Europe vof. All rights reserved. The TIC logo is a trademark of TIC Audio Inc. and TIC Audio Europe vof, registered in the United States and Europe. Features, specifications, and appearance are subject to change without notice.
