Summary of Contents for TIC WPS5

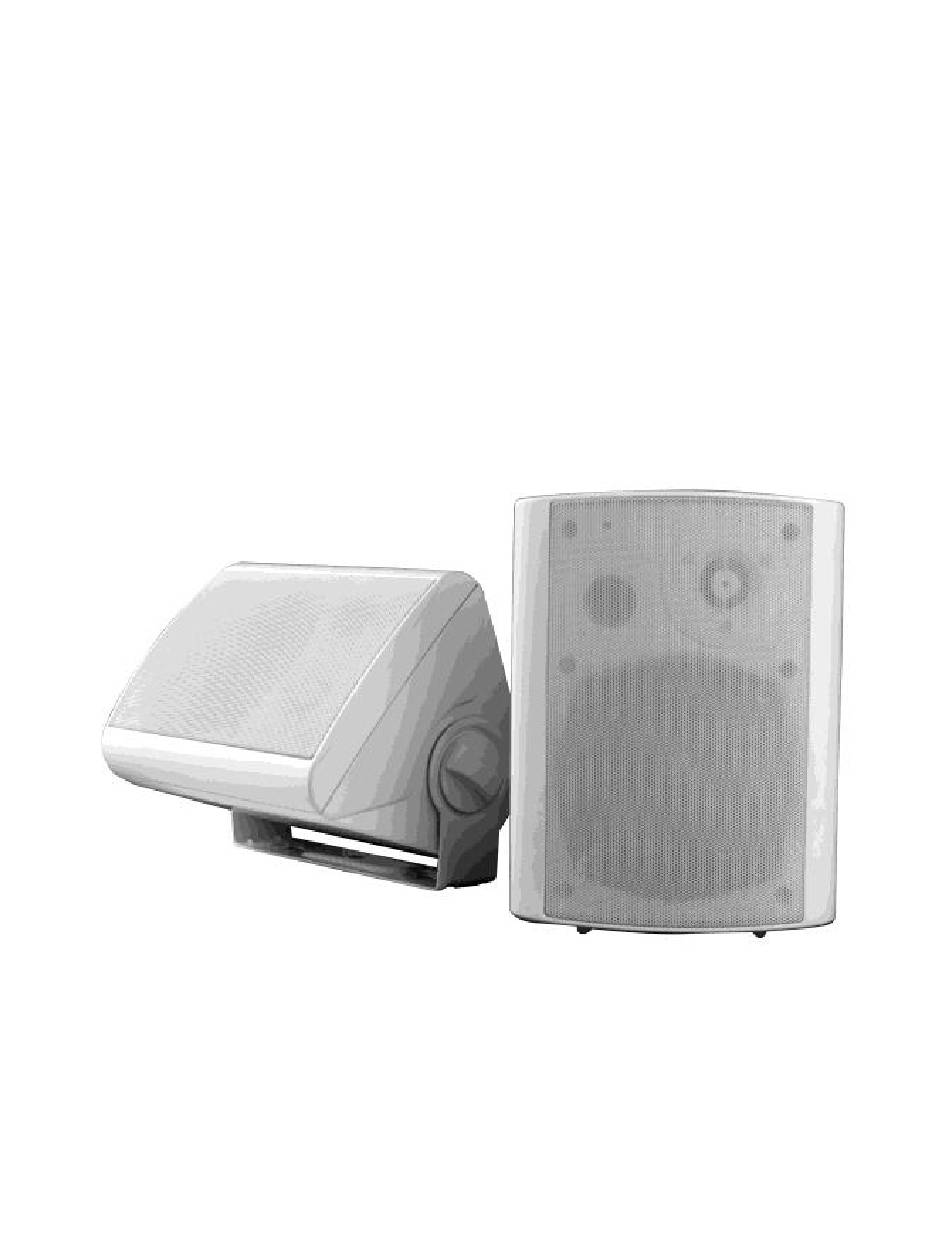

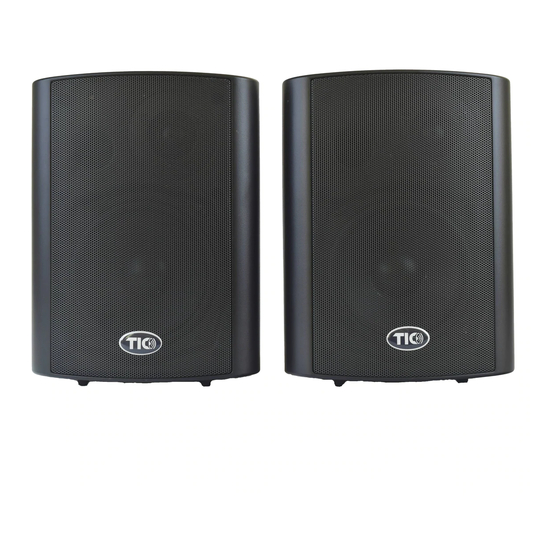

- Page 1 TIC Wifi Patio Speakers Featuring TIC WifiStream multi-room music streaming platform WPS5 Instruction Manual...
- Page 3 Plug in power adapter to main speaker. Download TIC WifiStream app from Apple App Store or Google Play. Follow instruction on TIC WifiStream app to connect speaker to your Wifi network. Once connected, install patio speakers in desired locations.
- Page 4 Content Main Speaker Pairing Speaker Power Adapter 15’ Speaker Wire...
- Page 5 Overview 1. Power Indicator LED 2. Bass Enhancing Sound Port 3. Tweeter 4. Woofer 5. Wifi Connect/Reset Button 6. Speaker Wire Connector 7. Power Adapter Connector 8. Mounting Threads 9. Bracket End Caps 10. 180° Mounting Bracket...
- Page 6 Connection The pairing speaker should be installed at least 5 feet apart but at most 15 feet from the main speaker (with the included speaker wire). If the pairing is installed further apart, you need to purchase an additional speaker wire cable, ideally in thicker gauge (14AWG or higher) for installation longer than 30 feet apart.
-
Page 7: Installation
Installation While not required, we recommend that you first connect the speaker to your Wifi network before you install the patio speakers in the desired locations and allow the speakers to reconnect automatically. Step-by-Step: First determine the locations where the main and pairing speaker will be installed. - Page 8 Once the bracket is securely mounted, attach and install the speakers by screwing back the end caps. Be sure to adjust the desired angle before tightening the end caps. Alternatively, the speaker may be installed directly (without the brackets) with common 3rd party speaker mounts by using the embedded mounting thread on the back of the speakers.
- Page 9 Wifi Setup In order to use this speaker, you must download the TIC WifiStream app on the Apple App Store or Google Play. Search for “TIC WifiStream” in the respective store. Alternatively, follow this QR code (or go to www.ticcorp.com/wifistream) for download links and additional help for installation and operation.
- Page 10 WifiStream App Operation Overview The TIC WifiStream app is required to set up the speakers and maintain AirPlay capability. Music can be streamed to any WifiStream device via the app or AirPlay. The app must be installed on each device that uses the speakers via AirPlay.
-
Page 11: Main Screen
Main Screen Setting Menu Service Device List Service Icon Favorite Playlist Music Control Music Control Setting Menu – access music services, favorite, and playlists Service – access service-specific menu& control Device List – multi-room and device control Service Icon – icon to denote current service (non-clickable) Favorite –... -
Page 12: Device List Screen
Device List Screen Back Add WifiStream Device Speaker Setting Channel Setting Volume Control Multi-room Control Instruction Hint Play/Pause All Add WifiStream Device – access wifi setup wizard to add more speakers Speaker Setting – rename speaker & misc speaker setting Channel Setting –... -
Page 13: Troubleshooting
Troubleshooting Issue: Not connecting to wifi network • Check if the wifi network SSID and password is correct and the network you are using is 2.4G, not 5.8G. • Make sure phone/tablet and speaker are close to each other during set up. •... -
Page 14: Specification
Specification Power Handling: 2 × 25W Tweeter: 1” PET dome Woofer: 5.25” injection molded PP cone with butyl rubber Frequency Response: 72hz - 20Khz Sensitivity: 86±3db Cabinetry Material: Formulated ABS Input: DC19V 3.1A Unit Dimension: 16” x 9” x 11.5”... - Page 15 IMPORTANT SAFETY INSTRUCTIONS: Read these instructions. Keep and follow all instructions. Heed all warnings. For indoor products, do not use this apparatus near water. For outdoor products, please do not expose apparatus to water longer than its intended time and level. Clean only with a dry cloth.
- Page 16 CAUTION: Risk of Electric Shock. Do Not Open. The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 17 FCC WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 18 Google Play and the Google Play logo are trademarks of Google LLC. TIC Audio Inc. All rights reserved. The TIC logo is a trademark of TIC Audio Inc, registered in the United States. Features, specifications, and appearance are subject to change without notice.
