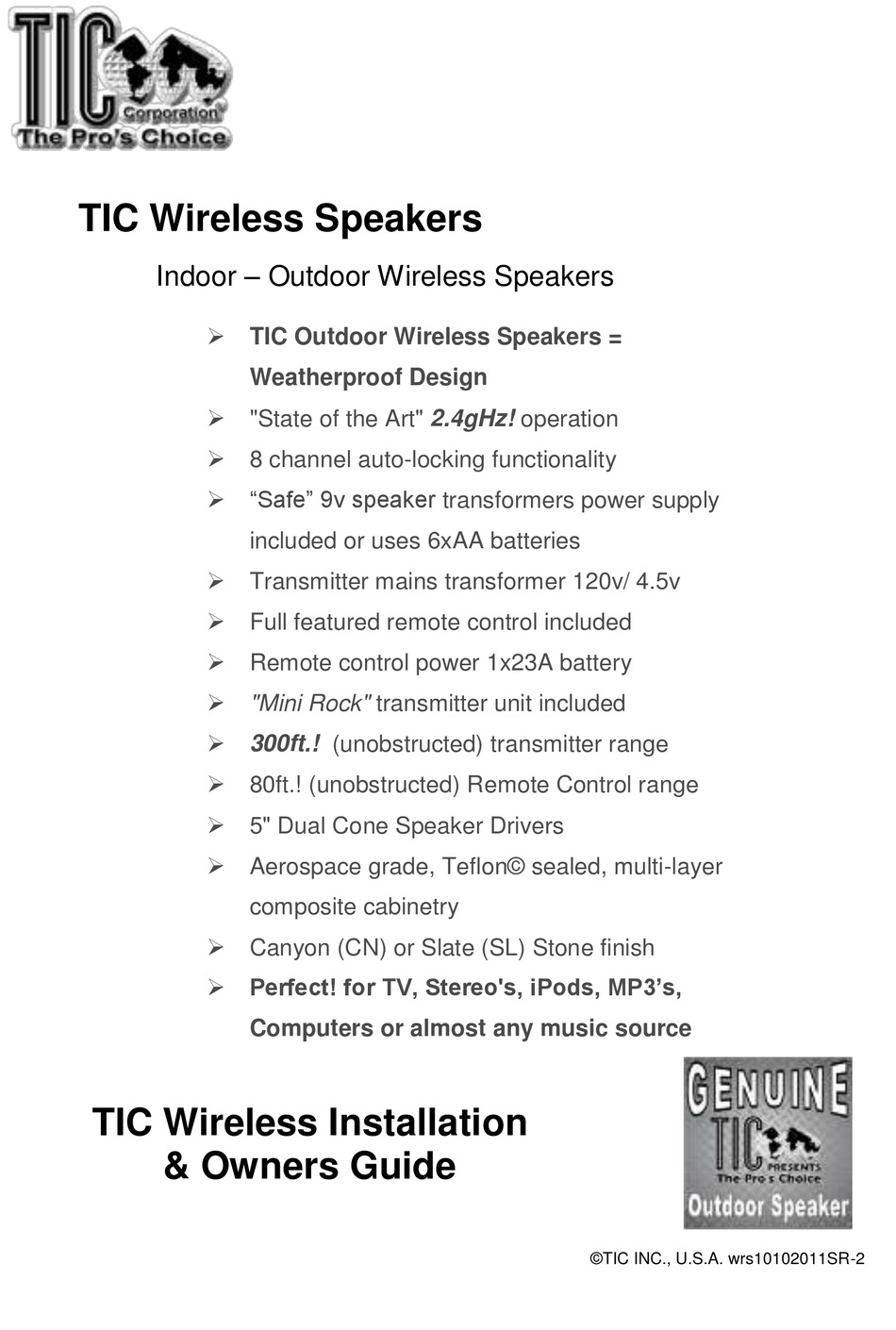

TIC Wireless Speakers
Indoor – Outdoor Wireless Speakers
 TIC Outdoor Wireless Speakers =
 "State of the Art" 2.4gHz! operation
 8 channel auto-locking functionality
 "Safe" 9v speaker transformers power supply
 Transmitter mains transformer 120v/ 4.5v
 Full featured remote control included
 Remote control power 1x23A battery

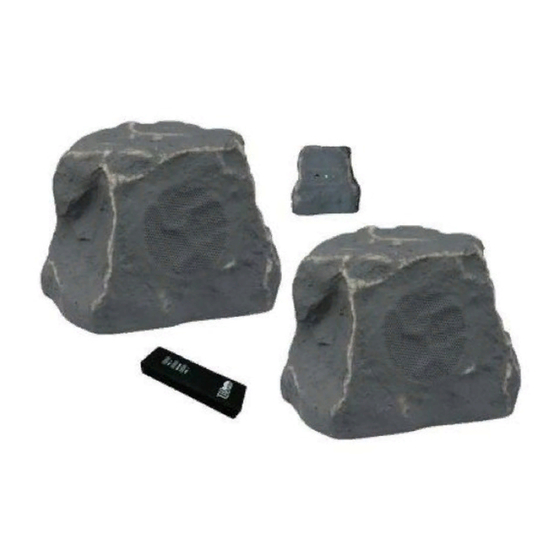

 "Mini Rock" transmitter unit included
 300ft.! (unobstructed) transmitter range
 80ft.! (unobstructed) Remote Control range
 5" Dual Cone Speaker Drivers
 Aerospace grade, Teflon© sealed, multi-layer
 Canyon (CN) or Slate (SL) Stone finish
 Perfect! for TV, Stereo's, iPods, MP3's,
TIC Wireless Installation
& Owners Guide
Weatherproof Design
included or uses 6xAA batteries
composite cabinetry
Computers or almost any music source
©TIC INC., U.S.A. wrs10102011SR-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WRS500 and is the answer not in the manual?

Questions and answers

Related Manuals for TIC WRS500

Summary of Contents for TIC WRS500

  • Page 1 TIC Wireless Speakers Indoor – Outdoor Wireless Speakers  TIC Outdoor Wireless Speakers = Weatherproof Design  "State of the Art" 2.4gHz! operation  8 channel auto-locking functionality  “Safe” 9v speaker transformers power supply included or uses 6xAA batteries ...

  • Page 2: Important Safety & Regulatory Information

    * Do not expose this device to solvents, including cleaning solvents or garden fertilizers or other products that contain solvents or powerful chemicals. * The general TIC Warranty issued with this product does not cover third party equipment including any batteries used with this product nor the extended use of batteries or any third party equipment used with this product.

  • Page 3: Table Of Contents

    TIC wishes you to enjoy many years of musical pleasure from your convenient and easy to use TIC...

  • Page 4: Power Options For Your Wireless Speakers

    Music source cables 3.5mm to “Y” RCA Power Options for your TIC Wireless Speakers There are two options to power your TIC wireless speakers; 1. You may use Batteries to power your wireless speakers. Please review the batteries use note below.

  • Page 5: Connecting The Transmitter To Your Music Source

    TIC’s unique omni- directional mini-rock transmitter with 8 channel auto-lock functionality TIC wireless speaker(s) offer you multiple choices for a music source incl. TV’s, IPods, headphone jacks and more… Note: Always make sure you are using an operational audio output. Common color coding for RCA type plug use with audio outputs are Red &...
  • Page 6 Simple 8 Step Quick Start Guide! 1.Carefully unpack your new TIC wireless speakers and check all components included, carefully. (Listed under Components above) Before exterior placement & installation;...
  • Page 7 Green LED light showing the unit is powered and ready to transmit. 7. There are two music source cables supplied with your TIC wireless speaker(s). Note: the transmitter only takes a 3.5mm jack input.
  • Page 8 Note: If you have more than one TIC wireless speaker. It is possible for your wireless speakers to become “Out of Phase” where switching “On” using the Remote Control switches on one speaker but not the other. In this case, remove the batteries, completely power down the system.

  • Page 9: Maintenance

    Inspect the installation area regularly, removing any dirt, dust or particulate matter from impeding or building up around the TIC product. The unit may be cleaned using a soft slightly damp cloth with very mild detergents like dishwashing liquid if desired. Keep away from audio inputs or output jacks.

  • Page 10: Troubleshooting

    Troubleshooting The following troubleshooting notes list some of the more common installation questions received. You may always call (800) SPX-OMNI for more advice or see our website FAQ at www.ticcorp.com/troubleshooting_wireless_speakers.htm No Sound? Transmitter is not initialized. Re-check that the transmitter is powered (green LED) Check the audio signal source both to and from the Transmitter.

  • Page 11: Installation Notes

    Installation Notes Make any Installation notes here...

  • Page 12: Technical Specifications

    Pack Weight 16 Lbs. or 6 Lbs. TIC Corporation engages in continual product research and development, new materials, production methods and design improvements. TIC Corporation, their Agents, Representatives and Distributors therefore reserve all rights to change or improve product specifications without notice.
