Avion
airplanes
Wings assembly
You will need W_L_1, W_L_2, W_L_3, W_L_3_Cover, W_L_4, W_L_5,
W_L_6, W_L_7, W_L_2_Rib
W_R_1, W_R_2, W_R_3, W_R_3_Cover, W_R_4, W_R_5,
W_R_6, W_R_7, W_R_2_Rib
ø1x571mm carbon rod 2x (wing front)
ø1x487mm carbon rod 2x (wing back)
CA glue, Activator

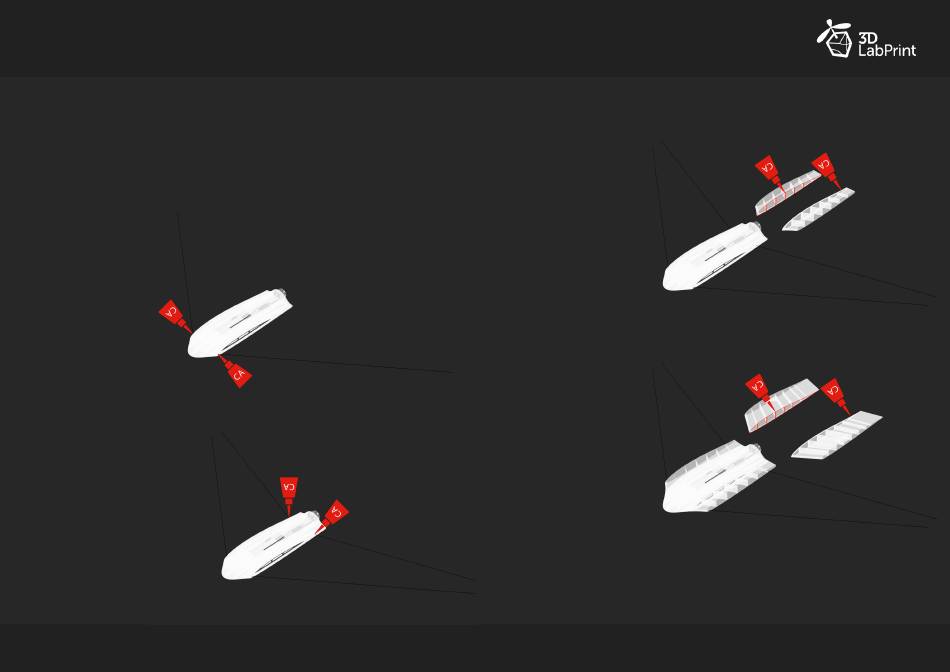

1.
Glue ø1x571mm
carbon rod 2x
with medium CA
glue into F_2 part.
Make sure, that
parts W_L_1 and
W_R_1 will fit
correctly.
2.
Glue ø1x487mm
carbon rod 2x
with medium CA
glue into F_4 part.
Make sure, that
parts W_L_1 and
W_R_1 will fit
correctly.
DUCK user manual
Wings assembly
3.
Glue parts W_L_1 and
W_R_1 to the fuselage.
Apply medium CA glue on
wing parts (or fuselage) and
then slide them on the car-
bon rods all the way to the
fuselage.
4.
Glue parts W_L_2 and
W_R_2 to the W_L_1 and
W_R_1. Apply medium CA
glue on wing parts and then
slide them on the carbon
rods all the way to the
previous part of the wing.
