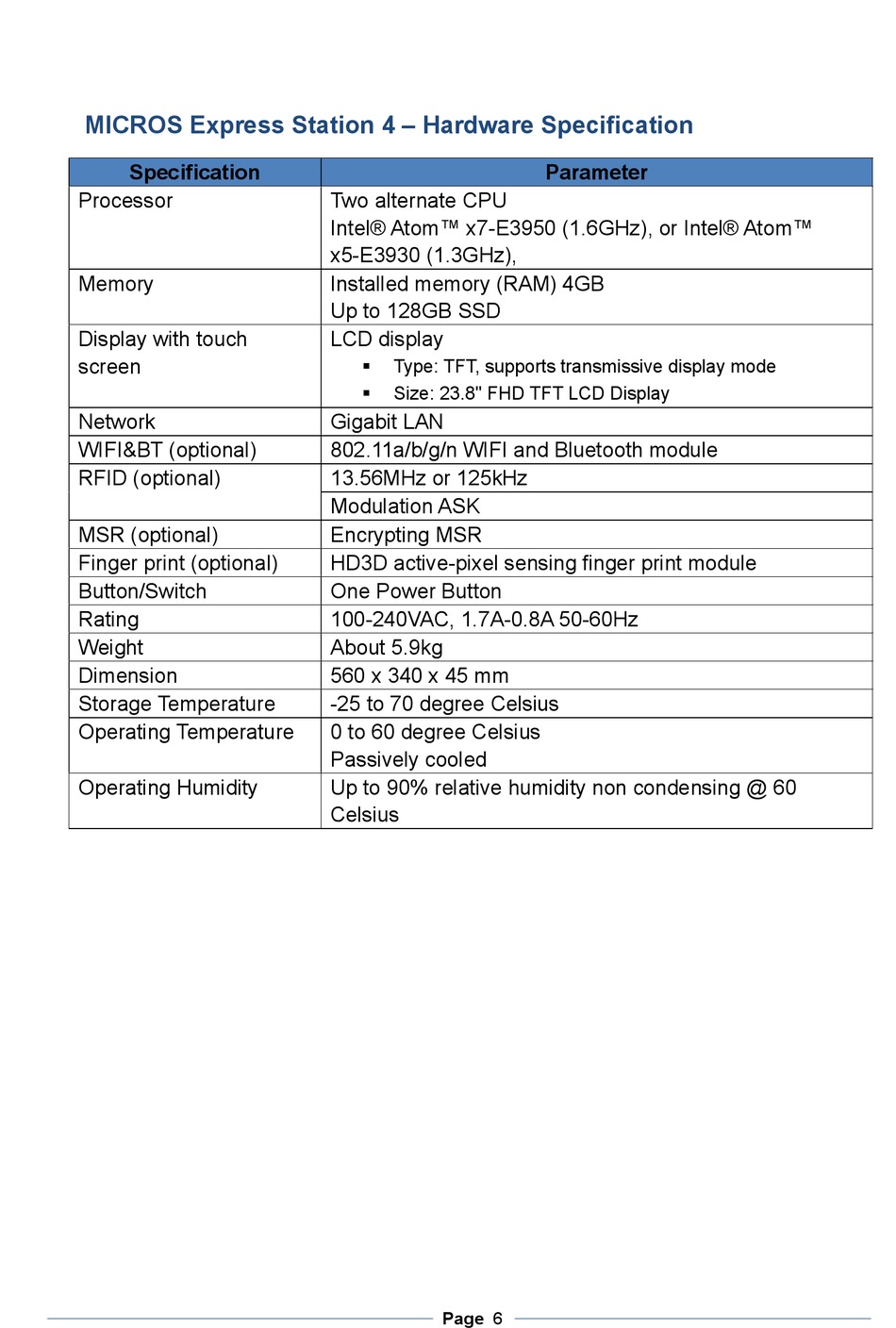

MICROS Express Station 4 – Hardware Specification
Specification
Processor
Memory
Display with touch
screen
Network
WIFI&BT (optional)
RFID (optional)
MSR (optional)
Finger print (optional)
Button/Switch
Rating
Weight
Dimension
Storage Temperature
Operating Temperature
Operating Humidity
Two alternate CPU
Intel® Atom™ x7-E3950 (1.6GHz), or Intel® Atom™
x5-E3930 (1.3GHz),
Installed memory (RAM) 4GB
Up to 128GB SSD
LCD display
 Type: TFT, supports transmissive display mode
 Size: 23.8" FHD TFT LCD Display
Gigabit LAN
802.11a/b/g/n WIFI and Bluetooth module
13.56MHz or 125kHz
Modulation ASK
Encrypting MSR
HD3D active-pixel sensing finger print module
One Power Button
100-240VAC, 1.7A-0.8A 50-60Hz
About 5.9kg
560 x 340 x 45 mm
-25 to 70 degree Celsius
0 to 60 degree Celsius
Passively cooled
Up to 90% relative humidity non condensing @ 60
Celsius
Page 6
Parameter
