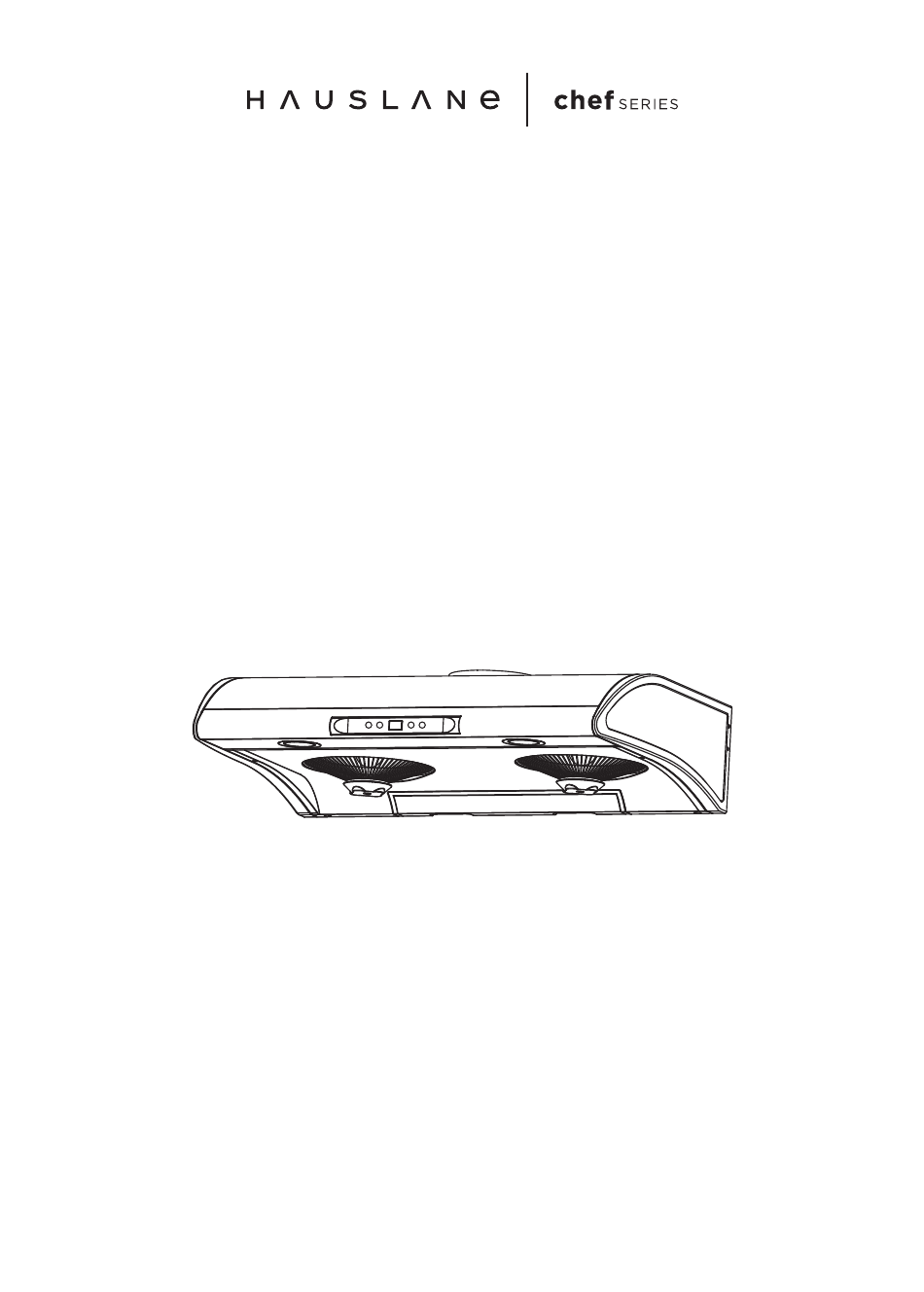

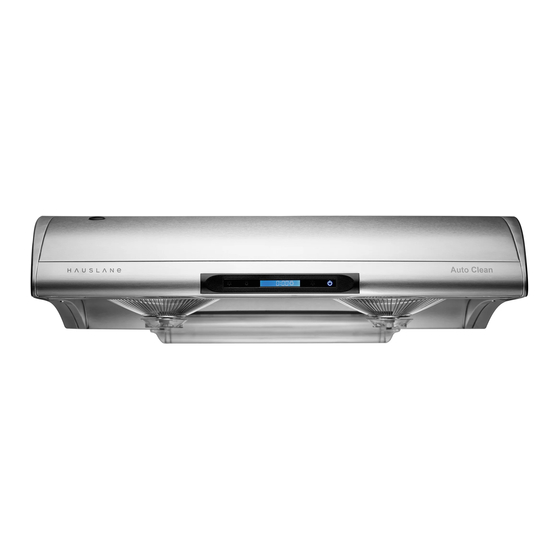

- Page 1 INSTRUCTION, USE & CARE MANUAL UC-C400SS-30...
- Page 2 8. Please read specification label in product for further information accumulate on fan or filter. and requirements. D. Use proper pan size. Always use cookware appropriate for the size of the surface element. HAUSLANE 267 Wattis Way, South San Fran cisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com...
-
Page 3: Warranty Claim Procedure
We reserve the right to a thirty-day (30) delay following the receipt of a claim in which to inspect the product. We assume no responsibility for labor costs, removing or replacing a previously installed product, transportation, or the return of a product. HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 4: About This Manual
NOTE: We recommend to install the hood at a minimum of 24"from cooking surface. For optimal performance, the hood should not be installed more than 30" from cooking surface. HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 5: Prepare Installation
1 25/a " � 1 ¾ " 4 ..- e t 1 ¾ " . .-1 25/a "-: ,t 1 ¼ " C ABINET BOTTOM VIEW C ABINET BOTTOM VIEW HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 6: Prepare The Hood
2. Mount the 6" round adapter/damper on top of the hood, using the 10 screws previoulsy removed. 3¼" x 10" DUCT INSTALLATION 2. Mount the 3¼" x 10" adapter/damper on top of the hood, using the 10 screws previously removed. HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 7: Horizontal Discharge Only
Secure the hood by installing and tightening the 4 no. ST4.8 x 15 mm mounting screws (included) completely at sides locations (A). � � • A � A hi HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 8: Connect Wiring
4. Using long nose pliers, pull out the end of each grease guides (8). Then set them in such a way their flange slightly protrudes above the bottom panel surface (C). 5. Slide the main grease cup back in. HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 9: Light Bulbs
Do not touch replacement bulb with bare hands! 4. To reinstall the light cover, insert the 3 light cover tabs in the light assembly slots and gently push until secured. LIGHT ASSEMBLY SLOTS HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 10: Cleaning And Maintenance
Let soak all removed parts in warm water with soft soap for 30 minutes. Rinse and dry completely before reinstalling. NOTE: When reinstalling the wheel, align the end of the set screw with the flat part of the motor shaft. HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... -
Page 11: Operation
ELECTRONIC SWITCH 1 - AUTO-CLEAN SWITCH 2 - LAMP SWITCH 3 - DISPLAY 4 - FAN SPEED SWITCH 5 - ON/OFF SWITCH � o sa:sa I □����� HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com... - Page 12 HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com...
- Page 13 HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com...
-
Page 14: Wiring Diagram
MAIN CONTROL BOARD ��-4 INSTALLATION GUIDE 5 - � * Not shown. 7 -o � -6 P!o - 7 �-8 � - - 11 � ,., <;& HAUSLANE 267 Wattis Way, South San Francisco, CA 94080 Tel: 1-800-929-0168 Email: info@hauslane.com...
