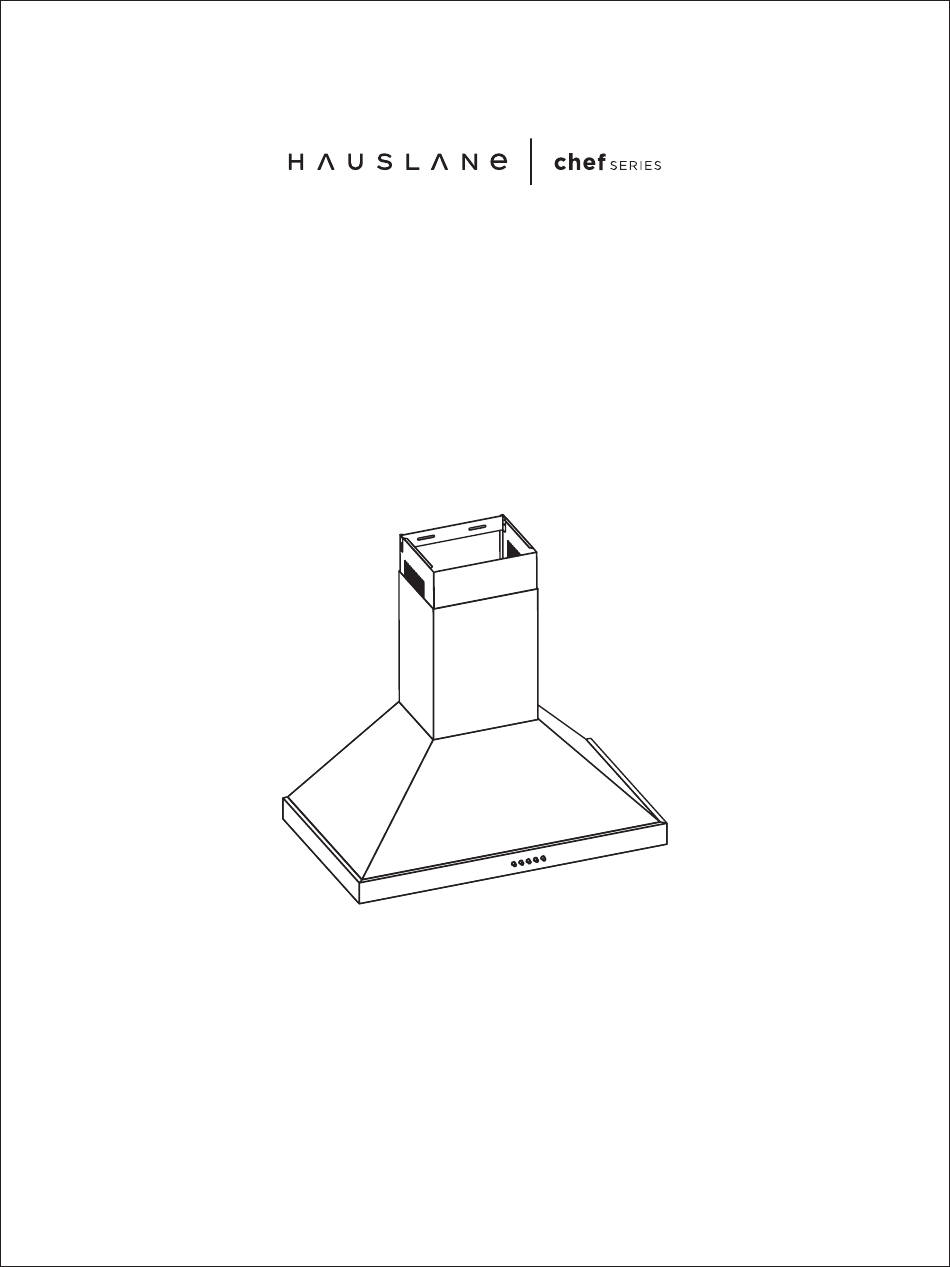

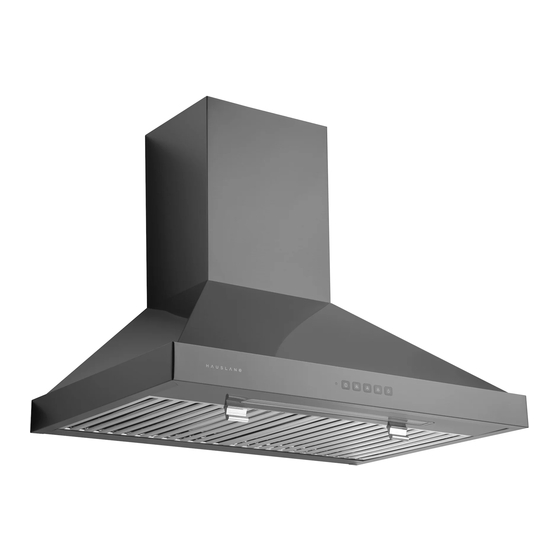

  • Page 1 INSTRUCTION, USE & CARE MANUAL WM-590BSS-30...

  • Page 2: Table Of Contents

    Warranty ................. 4 Pre-installation .............. 5 Installation ..............8 Operation ..............11 Maintenance ..............1 2 Care and Cleaning ............14 Troubleshooting ............15 Wiring Diagram ............16 Hauslane 267 Wattis Way, San Francisco, CA 94124 Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 3: Safety Lnformation

    26" may cause over heat and cause 7. Do not use this unit with any solid-state speed control device. damage to the range hood, HAUSLANE does not warrant this 8. To reduce the risk of fire, use only steel ductwork.

  • Page 4: Warranty

    We reserve the right to a thirty-day (30) delay following the receipt of a claim in which to inspect the product. We assume no responsibility for labor costs, removing or replacing a previously installed product, transportation, or the return of a product. Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 5: Pre-Installation

    I � HARDWARE INCLUDED NOTE, Haroware not shown to actual sl,e. ��,- Part Description Quantity Hood body mounting screws Drywall anchor Chimney mounting bracket screws Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...
  • Page 6 PACKAGE CONTENTS � Part Description Quantity Range hood (including filters and lamps) Damper (located with the outlet adapter) Chimney mounting bracket Bottom chimney Top chimney Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...
  • Page 7 SPECIFICATIONS FanCFM Dimensions Volts Hertz Speeds Light Wattage Stainless Steel Grade WM-590BSS-30: High 760mm(29.4 in)W 1x5W 480 mm (18.9 in.) D Medium 675-1150mm(26.5-45.2 in.)H --,­ Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 8: Installation

    Install two additional hood body mounting screws (AA) into the auxiliary mounting holes to secure the hood body (A) in place. Main mounting holes Auxiliary mounting holes Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...
  • Page 9 Secure the chimney top (E) to the chimney mounting bracket (C) with chimney mounting bracket screws (CC) from two sides. ------=:_ Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...
  • Page 10 WARNING: Do not use the plug and an extension cord other than the ones initially supplied with the hood. WARNING: The ground connection of this hood is compulsory. Do not remove ground prong of the plug. Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 11: Operation

    Operation HAUSLANe OPERATION OF CONTROLS Settings: 0-0N/OFF 1- LOW SPEED 2- MEDIUM SPEED 3 - HIGH SPEED 4 - LIGHT Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 12: Maintenance

    To install the grease filter, align rear filter tabs with slots in the hood. Push down the latch, push filter into position and release. Make sure the filter is securely engaged after assembly. Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...
  • Page 13 The oil cup should be cleaned frequently. The oil accumulated inside the oil cup cannot be more than half. Use a warm detergent solution. Allow it to be dry before refitting. Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 14: Care And Cleaning

    Combustible products used for cleaning, such as acetone, alcohol, ether, or benzyl, are highly explosive and should never be used close to a range or stove . Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 15: Troubleshooting

    A light does not work. functioning light does not come on, the problem may be the light assembly. Have the light assembly serviced or replaced. Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...

  • Page 16: Wiring Diagram

    ► � ;;'i -< ::;:: ;,;; ::;:: "' BLACK -< ::;:: "' "' GREEN ► ► ;,;; ;,;; GREEN � ::;:: ::;:: WHITE WHITE BLUE Hauslane 267 Wattis Way, San Francisco, CA 94124 WM-590BSS-30 USER MANUAL Tel: 1-800-929-0168 E-mail: info@hauslane.com...
