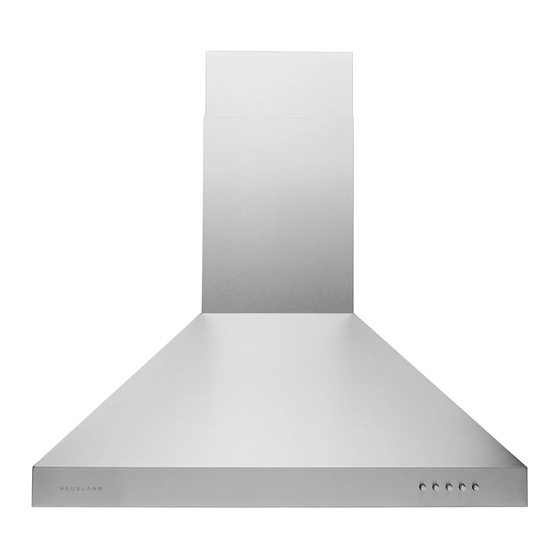

Hauslane chef Series User Manual
Hide thumbs
Also See for chef Series:
- Instruction, use & care manual (29 pages) ,
- User manual (13 pages) ,
- User manual (11 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Hauslane chef Series
Summary of Contents for Hauslane chef Series
- Page 1 Models WM-530SS-30B & WM-530SS-30P...
-
Page 2: Table Of Contents
Use this range hood only in the manner intended by the manufacturer. If you have the questions, contact Chef Kitch Always turn hood ON when cooking at high heat or at 1-800-929-0168 or email at info@hauslane.com. when cooking flaming foods. Before servicing or cleaning, switch power off at service Clean ventilating fans frequently. -
Page 3: Warranty Information
24"; any Use with approved cord-connection kit only. installation less than 24" may cause overheating and cause damage to the range hood, HAUSLANE does not warrant Please read product specification label on range hood for further information and requirements. -
Page 4: Specifications
Specifications Dimentions Volts Hertz Fan CFM Speeds Light Wattage Stainless Steel Grade 29.4” W High Base: 400 Base: 2x50W 18.9” D Medium Pro: 750 Pro: 2x3W 26.5-45.2” H 11” 8.7” 18.5” max 14.5” 10.9” 2.4” 18.9” 29.4” Tools Needed Before you begin the installation process, gather the following tools: Measuring Tape Pencil Flathead Screwdriver... -
Page 5: Package Contents
Package Contents Range Hood (Including Lamps) Bottom Chimney User Manual Damper Top Chimney Bag of Screws 6a Pro: dishwasher-safe baffle filters Chimney Mounting Bracket 6b Base: six-layer aluminum filters Parts Included 6 x AA Hood mounting screws 6 x BB Drywall anchor 2 x CC Chimney mounting bracket screws WM-530SS-30B &... -
Page 6: Preparation: What To Do Before Installation
Preparation: What to Do Before Installation Before installing your range hood, carefully follow these steps: 4. Check Your Power Supply and Ducts Check to ensure your main voltage is in line with the 1. Read This Manual required voltage outlined on the rating plate inside this Read through all the steps. -
Page 7: How To Install Your Range Hood
How to Install Your Range Hood When you’ve completed all the preparation steps, you’re Hang the hood body (A) onto the screws (AA) mounted ready to install your range hood. onto the wall and securely tighten the screws (AA) to secure the hood body (A) on the wall. -
Page 8: Connecting Ducted Mode
Telescopic Chimney Assembly The air must not be discharge into a flue that is used for exhausting fumes from appliances burning gas or other Chimney Bottom: Carefully slide the chimney bottom (D) fuels. Regulations concerning the discharge of air have to down outside the chimney top (E) partly, and then carefully place the chimney bottom (D) into the recessed area of the Install a roof/wall cap. -
Page 9: Connecting Non-Ducted Mode
8.Connecting Non-Ducted Mode Be Careful with Electrical Connections. CAUTION WARNING: Electrical wiring must be done by a Do not use plastic or rigid metal ducting. qualified person(s) in accordance with all applicable codes and standards. Turn off electrical power at service Install the charcoal filter (not included). -
Page 10: Basic Maintenance Instructions
Basic Maintenance Instructions Remove the outer filters. Your range hood requires some easy routine maintenance to keep it running efficiently. The charcoal filters (not included) must b e applied to the Stainless Steel Grease Baffle Filter suction unit in side the hood, centering them inside of it The grease filters should be cleaned frequently (every two and turning them 90°until they snap into place. -
Page 11: Cleaning Your Range Hood
3. If replacement and/or tightening does not solve, you may need to replace the lighting service system on the hood. Still experiencing problems after following these steps? Contact a technician to assist. Contact us at 1-800-929-0168 or info@hauslane.com. WM-530SS-30B & WM-530SS-30P USER MANUAL... -
Page 12: Wiring Diagram
Wiring Diagram KEY SWITCH LAMP HIGH MEDIUM STOP BLACK GREEN YELLOW GREEN WHITE WHITE BLUE WM-530SS-30B & WM-530SS-30P USER MANUAL... -
Page 13: Contact Hauslane
Contact Hauslane Extended Warranties If you are interested in an extended warranty, sign up on our website at www.hauslane.com Parts and Accessories If you need replacement parts or accessories, visit www.hauslane.com Contact Us We’d be happy to answer your questions or resolve any issues you may have.
