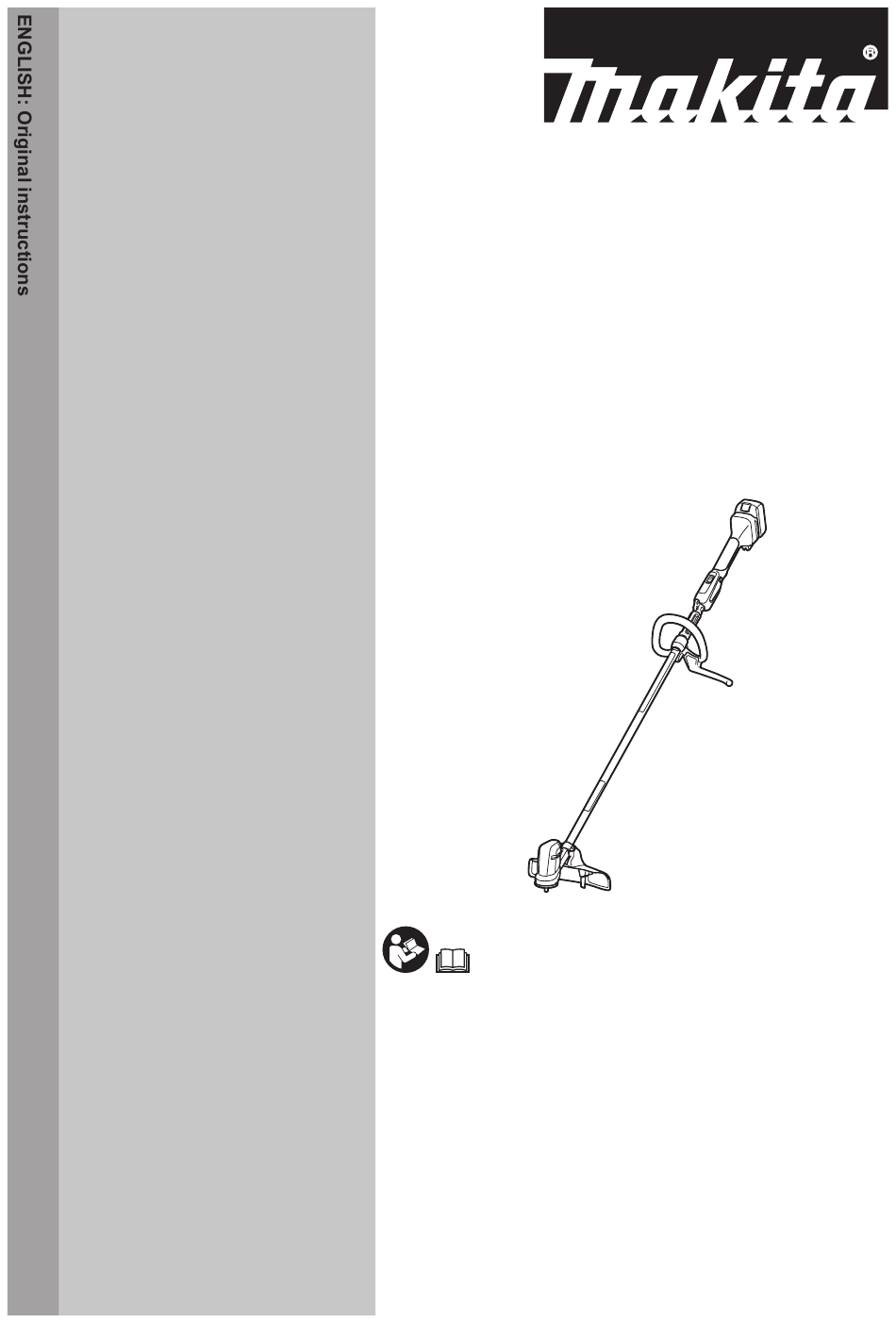

- Page 1 INSTRUCTION MANUAL Cordless Grass Trimmer DUR194 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DUR194 Type of handle Loop handle No load speed 2: 6,000 min 1: 4,500 min Overall length 1,580 mm (without cutting tool) Nylon cord diameter 2.0 mm Applicable cutting tool and 8-tooth blade 200 mm cutting diameter (P/N 191Y44-2) -
Page 3: General Power Tool Safety Warnings
Do not expose power tools to rain or wet con- Only for EU countries Ni-MH ditions. Water entering a power tool will increase Due to the presence of hazardous com- Li-ion the risk of electric shock. ponents in the equipment, waste electrical and electronic equipment, accumulators Do not abuse the cord. -
Page 4: Intended Use
Battery tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. -
Page 5: General Instructions
General instructions During operation, keep bystanders or animals at least 15 m away from the tool. Stop the tool Never allow people unfamiliar with these as soon as someone approaches. instructions, people (including children) with Never operate the tool while people, especially reduced physical, sensory or mental capabil- children, or pets are nearby. -
Page 6: Cutting Tools
Never attempt to switch on the tool if it is dam- 14. If the cutting attachment hits stones or other aged or not fully assembled. Otherwise serious hard objects, immediately turn the tool off. Then remove the battery cartridge and inspect injury may result. - Page 7 Kickback (Blade thrust) Vibration Kickback (blade thrust) is a sudden reaction People with poor circulation who are exposed to a caught or bound cutting blade. Once it to excessive vibration may experience injury occurs, the tool is thrown sideway or toward to blood vessels or the nervous system.
-
Page 8: First Aid
Makita warranty for the Makita tool and Do not expose battery cartridge to water charger. or rain. -
Page 9: Parts Description
PARTS DESCRIPTION Fig.4 Battery cartridge Speed switching lever Switch trigger Lock-off button Barrier Protector Loop handle Hanger Shoulder harness 9 ENGLISH... - Page 10 After installing the protector, remove the cutter cover ASSEMBLY from the cutter. WARNING: Always be sure that the tool is switched off and battery cartridge is removed before carrying out any work on the tool. Failure to switch off and remove the battery cartridge may result in serious personal injury from accidental start-up. WARNING: Never start the tool unless it is completely assembled.
-
Page 11: Cutter Blade
To remove the cutting blade, loosen the nut while hold- ing down the spindle lock button. Nylon cutting head NOTICE: Be sure to use genuine Makita nylon cutting head. While holding down the spindle lock button, place the nylon cutting head onto the spindle and tighten it securely by hand. -
Page 12: Functional Description
Plastic blade Hex wrench storage NOTICE: Be sure to use genuine Makita plastic CAUTION: blade. Be careful not to leave the hex wrench inserted in the tool head. It may cause While holding down the spindle lock button, place the injury and/or damage to the tool. -
Page 13: Overheat Protection
Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. NOTICE: If the tool stops due to a cause not described above, refer to the section for troubleshooting. -
Page 14: Operation
An unguarded cutting tool may result unintended starting. Never use the tool if it starts when in serious personal injury. you pull the switch trigger without pressing the lock- off button. Ask your local Makita Service Center for repairs. WARNING: Never disable the lock function or OPERATION tape down the lock-off button. - Page 15 Connect the hook of the shoulder harness to the hanger CAUTION: If the cutting tool accidentally and put the shoulder harness on. Make sure that the impacts a rock or hard object during operation, tool is held securely by the shoulder harness. stop the tool and inspect for any damage.
-
Page 16: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Replacing the nylon cord WARNING: Use only the nylon cord with diameter specified in this instruction manual. - Page 17 95-M10L Fig.25 ► ( 1) Up to 4 m (2) 80 mm (3) 100 mm 17 ENGLISH...
- Page 18 96-M10L Fig.26 ► ( 1) Up to 4 m (2) 100 mm 18 ENGLISH...
- Page 19 Replacing the plastic blade Grinding the metal blade Replace the plastic blade if it is worn out or broken. CAUTION: Before grinding the metal blade, When installing the plastic blade, align the direction of make sure that the tool is switched off and the the arrow on the blade with that of the protector.
-
Page 20: Troubleshooting
TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Battery cartridge is not installed. Install the battery cartridge. - Page 24 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885962-924 www.makita.com 20211123...
