- Page 1 5 in 1 2000 Instant solution for a clear and beautiful pond www.blagdonwatergardening.co.uk Search Blagdon Water Gardening for support videos...

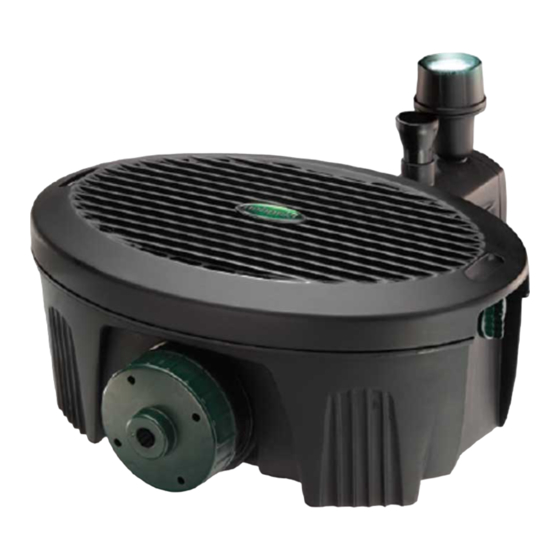

- Page 2 inpond 2000 Congratulations on buying an inpond 5 in1 Manufactured with advanced technology to create a clean and healthy pond for your fish. IMPORTANT Please attach proof of purchase to this manual and file in a safe place.
-
Page 3: Table Of Contents
CONTENTS Getting to know your Inpond 2000 Parts Descriptions / spares codes - with exploded diagram Pump performance / flow chart Specification chart Installation Electrical Installation Installing UVC UVC Electrical Installation Installing Inpond Maintenance and cleaning Cleaning Step by Step guides Routine Maintenance Annual Maintenance Winter storage... -
Page 4: Getting To Know Your Inpond 2000
GETTING TO KNOW YOUR INPOND 2000 40 41 42 23 24 25 26 27 15 16 17 18... - Page 5 GETTING TO KNOW YOUR INPOND 2000 Part Description Spare Code Filter Lid Green Foam 1054690 Polymer Wool Cartridge Polymer Wool Pad 1054690 UVC Viewing Window UVC Contact Chamber Screws UVC Contact Chamber Lid Locks UVC Magnet Ceramic Media 1051 187 1 1.
-
Page 6: Pump Performance / Flow Chart
GETTING TO KNOW YOUR INPOND Pump performance / flow chart 1.5m ltrlhr ltrlhr ltrlhr 1.0m 1626 ltrlhr ltrlhr ltrlhr ltrlhr 0.5m 1250 2371 ltrlhr ltrlhr ltrlhr ltrlhr 1500 3000 ltrlhr ltrlhr ltrlhr ltrlhr 2000 3000 6000 9000 MODEL THIS MODEL TECHNICAL DATA - PUMP TECHNICAL DATA - UVC •... -
Page 7: Installation
INSTALLATION “The power supply must meet the specification of the product. Inpond Pump The cores in the supply cable are coloured in accordance with the following code: Brown = Live, Blue = Neutral. The electric cable is permanently connected and sealed in the motor body. If the supply cable is damaged the pump must not be used. - Page 8 UVC INSTALLATION Warning - 1) Always turn off the power before any maintenance to the UVC section 2) Always view the UVC lamp through the viewing window on the UVC Chamber 3) Direct exposure to UVC light can damage your eyes and skin. Caution - Inpond UVC has been fitted with a magnetic safety switch.
- Page 9 UVC INSTALLATION 4. If there are no signs of leakage reverse the procedure ensuring that the quartz sleeve O-ring is in place. See alignment diagram. 5. Ensure the yellow quartz sleeve cap and the green UVC electronics cap are firmly ser cured by making sure the two looked positions are in direct line of each other.
-
Page 10: Electrical Installation
UVC ELECTRICAL INSTALLATION ALIGN ARROWS Warning - Direct exposure to UVC light can damage your eyes and skin. Electrical installation - UVC Inpond UVC The cores in the supply cable are coloured in accordance with the following code: Brown = Live, Blue = Neutral. Green / Yellow = Earth In accordance with EN60335-2-109:2010 Warning - A Residual Current Device (RCD), also known as the Residual Current Circuit Breaker (RCCB), with a tripping current not exceeding 30mA... - Page 11 UVC ELECTRICAL INSTALLATION For permanent installations to the mains supply, it is necessary to conform to the regulations of the local electricity authority and this would include the use of a metal or plastic conduit to protect the cable. Attention has been drawn to the fact that special rules may exist concerning the installation of your pond UVC (i.e.
- Page 12 INSTALLATION Locating your Inpond 5 in 1 The Inpond pump and filter should be located on a firm and level base in the pond/water feature in a depth of at least 10cm, but no more than 150cm for the 2000 model. Fountain Make sure there is ample cable.
- Page 13 INSTALLATION Convenient Installation FOUNTAIN OPTION FOUNTAIN OPTION FEATURE OPTION FEATURE OPTION WATER FEATURE WATER FEATURE FOUNTAIN HOSE INPOND INPOND Inpond 2000 INPOND 5 IN 1 RUNS A FOUNTAIN OR FEATURE AND LED SPOTLIGHT Up to 38cm fountain extension pipes 20° +/- ball joint adjustment to compensate for uneven pond floor LED spotlight 5w UVC lamp...
- Page 14 INSTALLATION Waterfall Installation Important The outlet hose should be smooth bore (not corrugated) pipe installed over as short a distance as possible with no kinks or bends. Water feature hose Connecting a feature 1/2” connection hose The recommended hose size is 1/2” for your Inpond.
-
Page 15: Maintenance And Cleaning
MAINTENANCE & CLEANING IMPORTANT - Failure to carry out routine maintenance leaving the pump under reduced or no flow conditions for long periods will result in a shorter pump life and will invalidate the guarantee. Routine Maintenance Reduced fountain or feature flow indicates that the filter is blocked and needs cleaning. The filter foam may be cleaned vigorously in a bucket of water as required. - Page 16 MAINTENANCE & CLEANING Routine Maintenance Switch off electricity Remove Inpond from pond (do not use the cables to lift the Inpond) How it works - Flow detail The water flows through the top of the filter cage down through the filter foam and ceramic media then through the UV chamber ready to exit via the pump.
- Page 17 MAINTENANCE & CLEANING Lift the lid from the main filter body After cleaning the filter media replace the filter lid rotating the lid locks in a clockwise direc- tion to secure.
- Page 18 MAINTENANCE & CLEANING Cleaning the impellor The Pennington Inpond 5 in 1 is centrifugal with a magnetic impellor movement driven by a watertight synchronous motor. They require minimum cleaning, only periodic cleaning of the impellor is necessary. Remove the impellor cover and impellor and wash both parts thoroughly. 2.
-
Page 19: Annual Maintenance
MAINTENANCE & CLEANING Annual maintenance of the filter Check for wear. Once a year you should dismantle your Inpond. Dismantle the filter examin- ing all the parts for wear or damage, replacing any parts showing obvious signs of wear and/or damage (see getting to know your filter for replacement codes and parts descrip- tions on pages 3 and 4) Annual maintenance of the pump Check for wear. -
Page 20: Troubleshooting
TROUBLESHOOTING Inpond Filter Cloudy/brown water • Check that you have correctly calculated the pond volume, pond depth and if the ponds level of direct sunlight. See page 4 for inpond sizing table. You may require a larger inpond model in the range. Adding shade to the pond by introducing lilies and floating plants to the water surface will reduce pond sludge. - Page 21 TROUBLESHOOTING 5. Use the largest diameter, smoothest bore pond hose over the shortest distance and keep hose fittings to a minimum. This removes frictional loss of flow and so increases pump flow rates. Poor Fountain performance DAISY • Reduced height. To clean, remove head •...
-
Page 22: Faults - Problem Procedure
TROUBLESHOOTING & IMPORTANT UVC light not illuminated • Check all fuses / RCD and electrical connections follow electrical installation Faults - Problem Procedure Before returning your Inpond to your dealer or contacting our Consumer Advice Department, please carry out the following steps. This will solve most problems quickly and easily. -
Page 23: Consumer Advice Contact Details
Your filter is within the performance guidelines stated. • You consult the Consumer Advice Email and follow any advice to correct the situation. See details below. Refunds can only be authorised by Interpet Blagdon. Consumer Advice contact details Interpet (Blagdon) Consumer Advice Department... - Page 24 Established over 50 years ago, Blagdon are committed to producing a comprehensive range of high quality and easy to use water gardening equipment. We have an on-going programme of research and development that ensures excellent product performance and value for money for our customers.
