- Page 1 Midipond UV pond filter system 20000/28000 www.blagdonwatergardening.co.uk www.interpetcentral.com www.pondaquariumproblemsolver.co.uk/blagdon 17.562 Blagdon_Midipond filter instructions_20000/28000 AW.indd 2 17/07/2017 16:35...

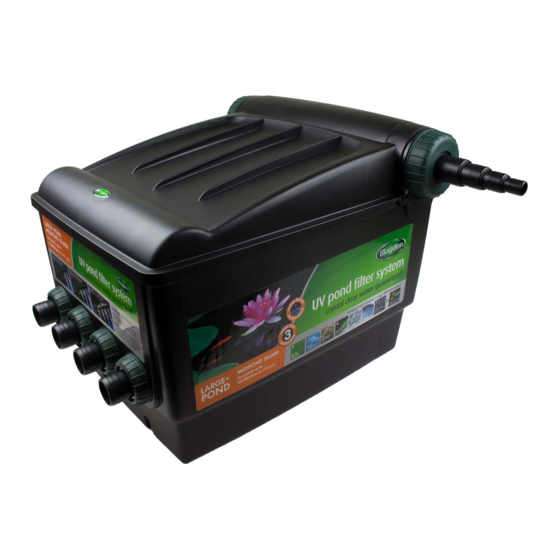

- Page 2 Midipond UV pond filter system 20000 / 28000 Congratulations on buying a Blagdon Midipond Water Garden Filtration System. Manufactured with advanced technology to create a clean and healthy pond for your fish. IMPORTANT Please attach proof of purchase to this manual and file in a safe place.
-
Page 3: Table Of Contents
CONTENTS Getting to know your Midipond Filter ......................2 Parts description ..............................2 Spares codes ................................. 2 Midipond flexible outlet options ........................3 Technical specification ............................3 Installation ............................... 4 - 7 Convenient installation ............................4 Filter outlet hose installation .......................... -
Page 4: Getting To Know Your Midipond Filter
GETTING TO KNOW YOUR MIDIPOND FILTER Part Description Spare Code Filter body Ceramic biomedia 1012430 Medium grade foam pad Fine grade foam pad 1060004 Coarse grade foam pad 1 1/2" outlet hose tail Outlet O ring gasket 1040600 Outlet nut Filter partition divider 10 Polymer wool pad 11 Carbon foam pad... -
Page 5: Midipond Flexible Outlet Options
GETTING TO KNOW YOUR MIDIPOND FILTER Midipond Flexible Outlet Options: Two, three or four outlet options. Two outlet plugs are provided. Maximum flow from 2 outlets: Maximum flow from 3 outlets: Maximum flow from 4 outlets: MPF20,000: 4,000 ltr /880 gal MPF20,000: 5,000 ltr /1,100 gal MPF20,000: 5,000 ltr /1,100 gal MPF28,000: 4,000 ltr /880 gal... -
Page 6: Installation
INSTALLATION Convenient Installation Can be installed below or above ground with water returned direct to the pond or via a waterfall. e.g: BELOW ABOVE Filter outlet WATERFALL to Waterfall Filter outlet to Pond MIDIPOND FOUNTAIN FILTER FOUNTAIN MAXIMUM (below ground) LENGTH MIDIPOND HOSE... -
Page 7: Connecting Hoses
FILTER UNWANTED INLET TO UVC HOSETAILS formance and specification chart. Always secure hose with a jubilee clip. BLAGDON Warming the hose in a bucket of HOSE RECOMMENDED boiling water can aid fitting. Always ensure that the smaller diameter hosetail is cut off and... -
Page 8: Connecting To Your Pump
The Quartz sleeve can become coated in lime scale build up in hard water areas. This should be carefully removed from the quartz sleeve with a soft cloth. Blagdon Pond Pump Cleaner should be used in stubborn cases. Remove the quartz sleeve from the unit and soak for 3 hours in Pump Cleaner, ensuring that all O-rings are checked and replaced, if necessary. -
Page 9: Testing/Replacing The Uvc Lamp
INSTALLATION Testing/installing the UVC lamp IMPORTANT: Ensure that the mains supply is switched off and the power isolated before removing the UVC cover. Unscrew the UVC electronics cover cap. Inspect the UVC cap and Quartz sleeve for water leaks. If there are no signs of leakage reverse the procedure ensuring that the Cover o ring is in place. If there has been any damage to the unit please return to the point of purchase for inspection. -
Page 10: Maintenance
ELECTRICAL INSTALLATION IMPORTANT: Please note all electrical work on garden lighting and power installations must comply with part P of the building regulations. Failure to comply is a criminal offense. If the installation of this product is not carried out by a competent electrician who is registered under the Part P self-certification scheme then you must notify the local building control department before work begins. -
Page 11: Routine Maintenance
Foams may be cleaned vigorously under a running tap or hose. Adding Blagdon Bio Start after filter maintenance will help replenish these beneficial bacterial populations, and is highly recommended during the first two months of operation when the filter is slowly being colonised. -
Page 12: Annual Maintenance
MAINTENANCE & CLEANING Polymer wool and carbon cartridge When the cartridge chamber fills with water and starts to overflow into the outlet chamber the cartridge should be cleaned or replaced. The Polymer wool pad may be washed a limited number of times before it starts to lose efficiency and blocks rapidly. -
Page 13: Troubleshooting
TROUBLESHOOTING In order to correctly identify if you have green water or cloudy/brown water, a settlement test should be carried out. Take a glass of pond water and allow to settle for a few hours. When the glass is stirred a small layer of settled waste can be seen at the base of the glass. -
Page 14: Green Water
The filter is too small for the pond, check the filter selection chart. • The UVC quartz sleeve is dirty or coated in lime scale. Gently remove the quartz sleeve and clean in Blagdon pond pump cleaner. • Follow all cloudy water trouble shooting points. -
Page 15: Faults Problem Procedure
Your filter is within the performance guidelines stated. • You consult the Consumer Advice Line and follow any advice to correct the situation. See details below. Refunds can only be authorised by Interpet Blagdon. CONSUMER ADVICE CONTACT DETAILS Interpet (Blagdon) Consumer Advice Department... - Page 16 Established over 50 years ago, Blagdon are committed to producing a comprehensive range of high quality and easy to use water gardening equipment. We have an on-going programme of research and development that ensures excellent product performance and value for money for our customers.
