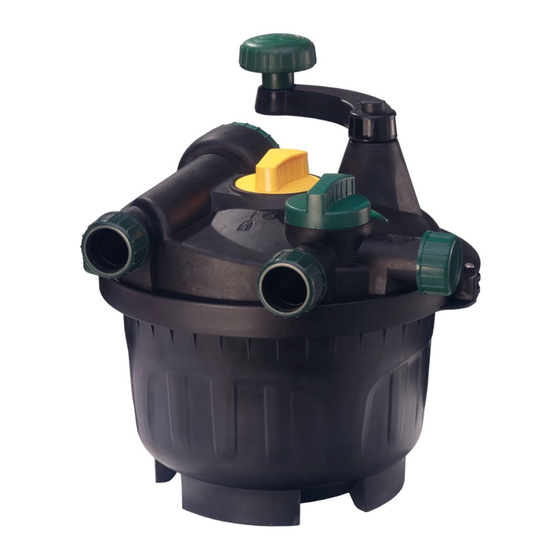

- Page 1 Clean Pond Machine 7000 • 10000 13000 • 16000 www.blagdonwatergardening.co.uk Blagdon Water Gardening...
- Page 2 Pond Machine filtration system. Manufactured with advanced filtration technology to create a clean and healthy pond for you fish. When used in combination with Blagdon Clean Pond Pods, this filter has been designed to minimise maintenance, and make necessary maintenance easier.
-
Page 3: Table Of Contents
GETTING YOU KNOW YOUR FILTER Parts diagram ......................Parts table ........................Technical specifications .................... INSTALLATION Electrical installation ....................Locating the filter ...................... Connecting to your pump ..................Connecting the inlet/outlet hoses ................UVC Maintenance ....................Replacing the UVC bulb ..................CLEANING AND MAINTENANCE Normal running ......................10... -
Page 4: Getting You Know Your Filter
GETTING TO KNOW YOUR FILTER... -
Page 5: Parts Table
16000: 1057721 UVC End Cap O-rings (2) 7000: 1057691 10000: 1057707 13000: 1057714 16000: 1057721 UVC Bulb 7000: (9w): 1040655 10000: (11w): 1057738 13000: (13w): 1051347 16000: (18w): 1057745 UVC Quartz Sleeve O-rings (2) 7000: 1057752 10000: 1057752 13000: 1057752... -
Page 6: Technical Specifications
Model fish in shade fish in shade fish in shade fish in full sun fish in full sun Koi in full sun 7000 7,000 ltrs 3,500 ltrs 2,625 ltrs 2,625 ltrs 1,900 ltrs 984 ltrs 1,540 gals 770 gals... -
Page 7: Electrical Installation
Electrical installation The power supply must meet the specifications on the product. This appliance is designed to be used with either a weather-proof cable connector or connected to the mains by means of a plug and socket. The cores in the supply cable are coloured in accordance with the following code: Brown = Live, Blue = Neutral, Green/Yellow = Earth The electrical cable is permanently connected and sealed inside the appliance If the supply cable is damaged the appliance must not be used. -
Page 8: Locating The Filter
Location of the filter The Blagdon Clean Pond Machine should be located on a firm and level base on the ground, at least 1.2m (4’) from the pond. The filter can be buried up to the bottom rim of the head unit, leaving just the UVC access, inlets &... -
Page 9: Connecting To Your Pump
To increase flow, you may require a larger pump. If the flow rate is too high, use an inline valve to reduce it (or use the digital control of a Blagdon Amphibious IQ pump). The purpose of the pump is to transfer dirty water from the pond to the filter cannister. -
Page 10: Uvc Maintenance
INSTALLATION UVC bulbs & quartz sleeve maintenance The UVC bulb must be replaced yearly – it is recommended that the bulb is replaced in the spring or early summer, in order to provide the maximum performance during the most problematic period of the year for green water. The quartz sleeve can become coated in lime scale build up in hard water areas. -
Page 11: Replacing The Uvc Bulb
INSTALLATION Testing/replacing the UVC lamp IMPORTANT: Ensure the mains power supply is switched off and the power isolated before removing the UVC cover. WARNING: Dangerous Ultra Violet radiation. The rays from the UVC lamp are harmful to eyes and skin. ALWAYS turn off the UVC electrical supply before any maintenance. Undo the four screws on the UVC electronics cover cap Pull out the UVC electronics cover cap. -
Page 12: Normal Running
MAINTENANCE & CLEANING Your Blagdon Clean Pond Machine has been designed to need a minimum of maintenance. It will work at it’s best with some simple, monthly routine maintenance. If the filter is installed on an established pond, the regularity of cleaning may be increased for a period until any back log of accumulated pond waste has been removed. -
Page 13: Cleaning Your Filter
MAINTENANCE & CLEANING To clean your Blagdon Clean Pond Machine, follow these simple steps: Turn outlet valve Rotate handle Rotate Pod dosing to waste. to clean. chamber cap & remove. Insert Clean Pond Pod. WASTE WASTE OUT TO OUT TO... -
Page 14: Winter Storage
– replacing parts showing any signs of wear or damage. Replacing filter media Due to the material and method used in cleaning the filter media contained in the Blagdon Clean Pond Machine, it should never need replacing, as even if it is clogged solid, and unable to be cleaned using the handle, it is possible to clean it by removing it from the filter into a bucket of water taken from the pond. -
Page 15: Disassembling/Reassembling Your Clean Pond Machine
MAINTENANCE & CLEANING Annual Maintenance Disassembling/reassembling your Clean Pond Machine We would recommend to clean the bottom grill annually to maintain the performance of the filter, to clean this the following instructions should be followed: Turn off the pump. Undo and remove the lid clasp, lift off the filter head unit. -
Page 16: Troubleshooting
TROUBLESHOOTING Filter Leaks • Check that the inlet and outlet nuts and O-rings have been correctly assembled and that they are hand tight. • PTFE tape may be needed to give a water tight seal, and should be applied to the thread of the inlet and outlet hose tails. -
Page 17: Green Water
The UVC may be working effectively, but the filter media is too clean so is unable to remove the fine coagulated waste – treat the pond with a clearing product, such as Blagdon Clear Pond, this will clump the particles together to make them larger, and therefore easier to... -
Page 18: Faults - Problems Procedure
FAULTS - PROBLEMS PROCEDURE Before returning your Blagdon air filter to your dealer or contacting our Consumer Advice Department, please carry out the following steps. These will solve most problems quickly and easily: Ensure electrical procedure has been followed fully. Check fuses and any cable connectors or switchboxes. - Page 20 INNOVATIVE Interpet, Vincent Lane, Established over 50 years ago, Blagdon are Dorking, Surrey, RH4 3YX committed to producing a comprehensive range of high quality and easy to use www.interpet.co.uk water gardening equipment. We have www.blagdonwatergardening.co.uk an on-going programme of research and...
