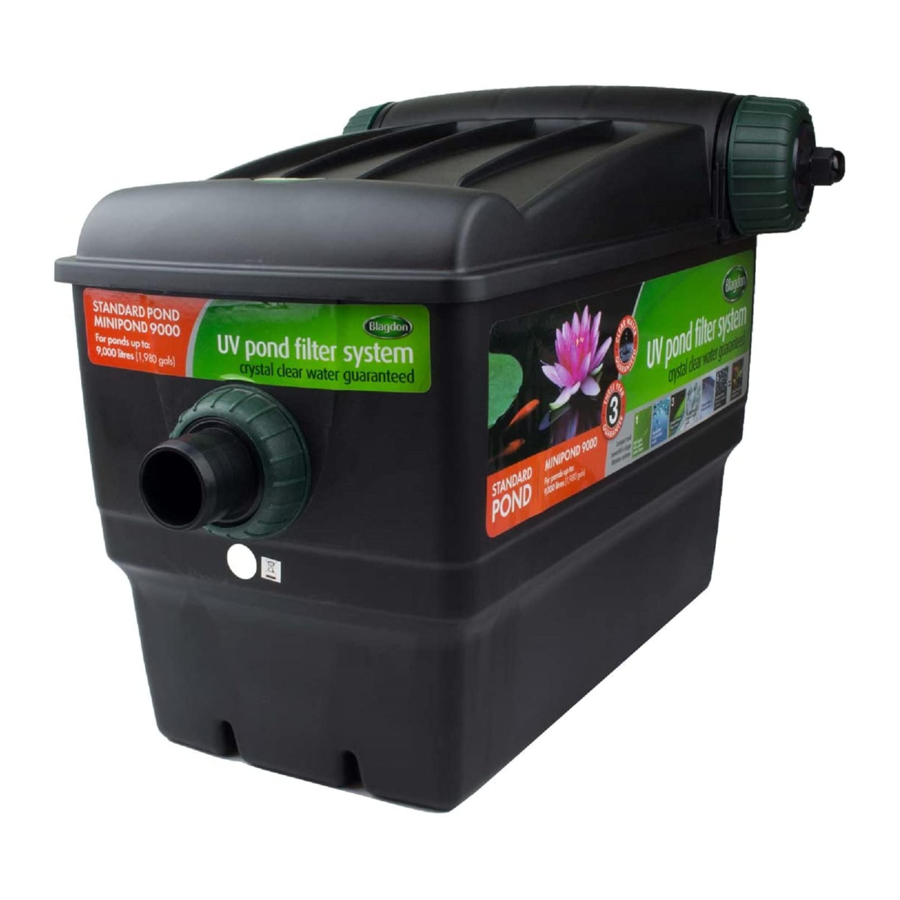

- Page 1 Minipond UV pond filter system 9000/12000 www.blagdonwatergardening.co.uk www.interpetcentral.com www.pondaquariumproblemsolver.co.uk/blagdon 17.562 Blagdon_Minipond filter instructions_9000/12000 AW3.indd 2 14/07/2017 17:00...
- Page 2 Minipond UV pond filter system 9000 / 12000 Congratulations on buying a Blagdon Minipond Water Garden Filtration System. Manufactured with advanced technology to create a clean and healthy pond for your fish. IMPORTANT Please attach proof of purchase to this manual and file in a safe place.
-
Page 3: Table Of Contents
CONTENTS Getting to know your Minipond Filter ......................2 Parts description ..............................2 Spares codes ................................. 2 How it works ................................3 Technical specification ............................3 Installation ............................... 4 - 7 Convenient installation ............................4 Filter outlet hose installation ..........................4 Connecting hoses .............................. -
Page 4: Getting To Know Your Minipond Filter
GETTING TO KNOW YOUR MINIPOND FILTER 17 18 16 15 Part Description Spare Code Part Description Spare Code Part Description Spare Code Filter body 1040570 12 Cartridge clip 23 Quartz sleeve 9w/5w 1040730 1040617 Ceramic biomedia 1040587 13 Filter pad cartridge 24 UVC contact chamber 1040662 Medium grade... -
Page 5: How It Works
GETTING TO KNOW YOUR MINIPOND FILTER How It Works Blagdon Minipond filters create a clean and healthy environment for your fish. A minimum of maintenance is needed due to the unique six stage filter design. High performance UVC clears green water algae. -
Page 6: Installation
INSTALLATION Convenient Installation Can be installed below or above ground with water returned direct to the pond or via a waterfall. e.g: BELOW ABOVE Filter outlet WATERFALL to Waterfall Filter outlet to Pond MINIPOND FOUNTAIN FILTER FOUNTAIN MAXIMUM (below ground) LENGTH MINIPOND MINIPOND... -
Page 7: Connecting Hoses
INSTALLATION Important The outlet hose should be smooth bore (not corrugated) pipe installed over as short a distance as possible with no kinks or bends. We recommend that heavy duty smooth bore black hose is used. The water level in the filter outlet chamber after the carbon wool cartridge should not be higher than the outlet fitting when in use. -
Page 8: Connecting To Your Pump
Placing the pump at the opposite end of the pond to the filter will give the best results. Foam-free pump designs will give optimum Minipond filtration. We recommend Blagdon Pond Pumps for fountains, filters and waterfalls. UVC Bulbs & Quartz Sleeve Maintenance The UVC bulb must be replaced yearly. -
Page 9: Testing/Installing/Replacing The Uvc Lamp
INSTALLATION Testing/installing the UVC lamp IMPORTANT: Ensure that the mains supply is switched off and the power isolated before removing the UVC cover. Unscrew the UVC electronics cover cap. Inspect the UVC cap and Quartz sleeve for water leaks. If there are no signs of leakage reverse the procedure ensuring that the Cover o ring is in place. If there has been any damage to the unit please return to the point of purchase for inspection. -
Page 10: Maintenance
ELECTRICAL INSTALLATION IMPORTANT: Please note all electrical work on garden lighting and power installations must comply with part P of the building regulations. Failure to comply is a criminal offence. If the installation of this product is not carried out by a competent electrician who is registered under the Part P self-certification scheme then you must notify the local building control department before work begins. -
Page 11: Routine Maintenance
Foams may be cleaned vigorously under a running tap or hose. Adding Blagdon Bio Start after filter maintenance will help replenish these beneficial bacterial populations, and is highly recommended during the first two months of operation when the filter is slowly being colonised. -
Page 12: Annual Maintenance
Blagdon Polymer wool and carbon foam packs are the correct replacement media for your Minipond Filter and are quick and easy to replace. see Blagdon section in store (see diagram on page 8 and codes/descriptions on page 2). -
Page 13: Troubleshooting
The filter is not being supplied with water 24 hours a day. Do not turn off your pump or UVC. Continuous running is needed to maintain a clean and healthy pond. • The filter foam pads are insufficiently blocked to trap the fine waste. Treat with Blagdon Clear Pond treatment. •... -
Page 14: Green Water
It is possible to purchase a optional Blagdon 1" flow control valve that may be fitted inline between the pump and the filter to control the flow rate. See getting to know your filter diagram and parts codes. -
Page 15: Faults Problem Procedure
Your filter is within the performance guidelines stated. • You consult the Consumer Advice Line and follow any advice to correct the situation. See details below. Refunds can only be authorised by Interpet Blagdon. CONSUMER ADVICE CONTACT DETAILS Interpet (Blagdon) Consumer Advice Department... - Page 16 Established over 50 years ago, Blagdon are committed to producing a comprehensive range of high quality and easy to use water gardening equipment. We have an on-going programme of research and development that ensures excellent product performance and value for money for our customers.
