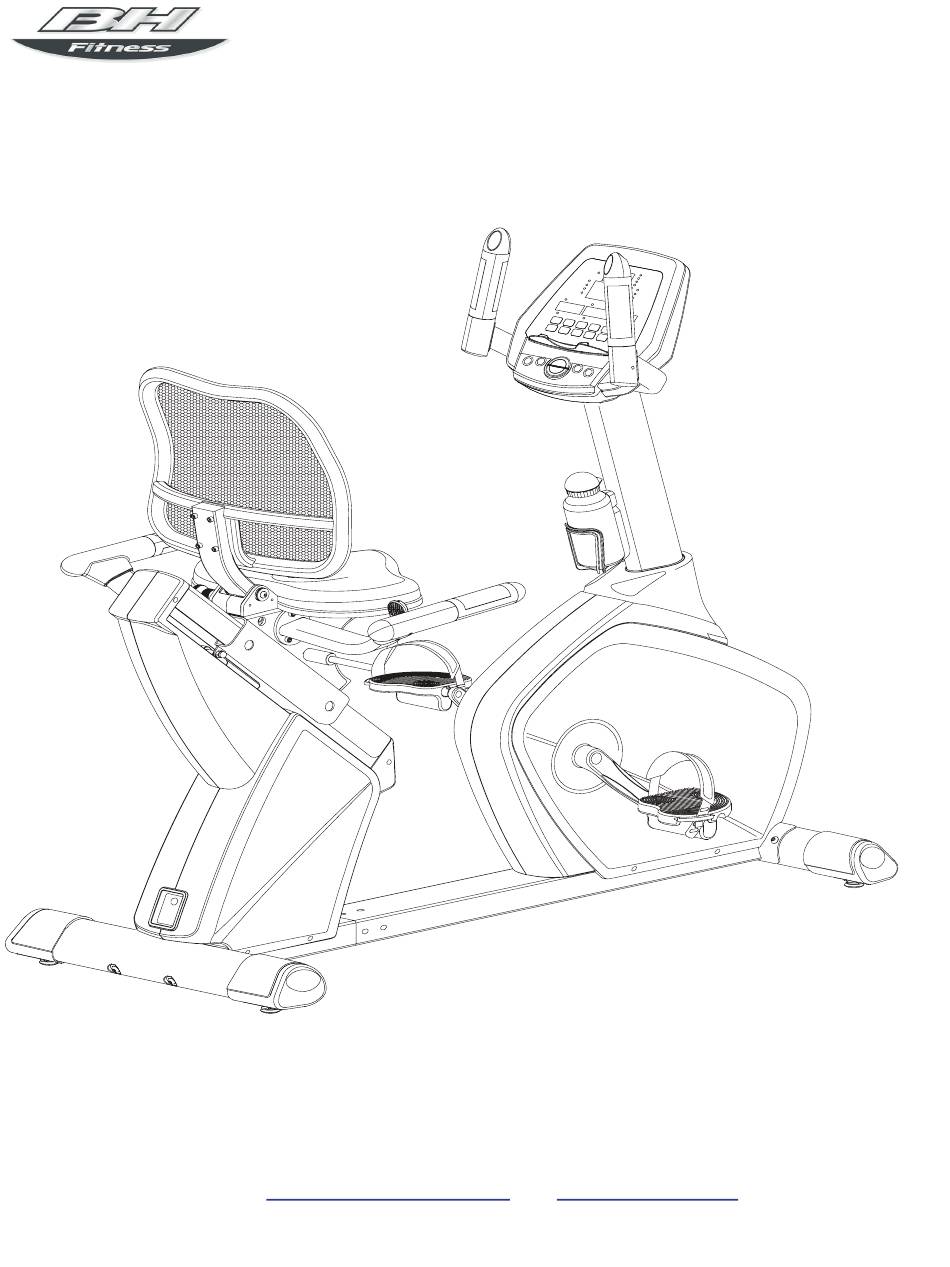

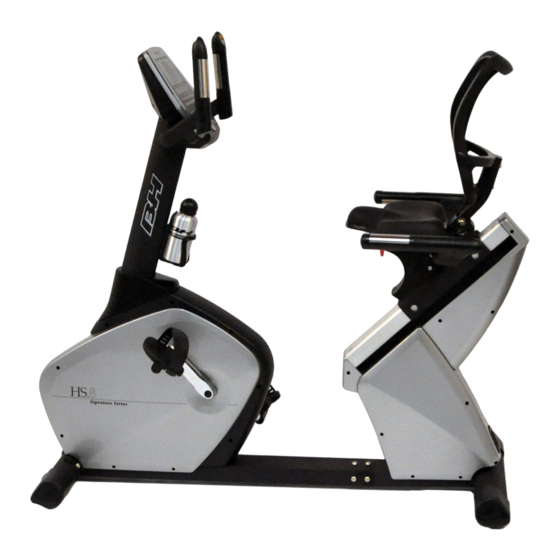

- Page 1 BH FITNESS HS8 HYBRID CYCLE OWNER’S MANUAL BH FITNESS 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330, 866-325-2339 (USA & Canada) Fax: 949-206-0013 Email: fitness@bhnorthamerica.com Web: www.bhnorthamerica.com www.bhfitness.com...
- Page 2 The HS8 is designed to make your workouts more effective and enjoyable. Please read this manual carefully before using the HS8. This will allow you to get a full understanding of all the features the BH Fitness Hybrid Cycle provides. If you have questions or concerns, please contact BH FITNESS or any authorized BH FITNESS distributors in your area.
-
Page 3: Table Of Contents
HS8 HYBRID CYCLE TABLE OF CONTENTS SECTION PAGE 1. IMPORTANT SAFETY INSTRUCTIONS ............3 2. PRE & ASSEMBLY INSTRUCTIONS............5 3. PARTS LIST....................14 4. EXPLODED VIEW ..................16 5. COMPUTER CONSOLE................17 6. HEART RATE CALCULATION..............22 7. WARRANTY ....................23 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330, 866-325-2339 (USA &... -
Page 4: Important Safety Instructions
12. Connect this unit to a properly grounded 110-120V, 15 or 20 Amp dedicated outlet only. 13. Call your service center or BH Fitness with your concerns before taking your unit in for repair. 14. Do not place sharp objects near the unit. Never drop or insert any object into any opening. - Page 5 Please save these Instructions ELECTRICAL POWER CONNECTOR Your HS8 Hybrid Cycle has a two prong external electrical power connector for use on a nominal 110-120 volt circuit. Use only the electrical power connector provided with your HS8 Hybrid Cycle. If you misplace the electrical connector, please contact BH Fitness for an original replacement.
-
Page 6: Pre & Assembly Instructions
HS8 HYBRID CYCLE SECTION 2 - PRE ASSEMBLY INSTRUCTIONS Seat Slider Release Handle 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330, 866-325-2339 (USA & Canada) - Page 7 HS8 HYBRID CYCLE PRE ASSEMBLY INSTRUCTIONS (cont’d) 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330, 866-325-2339 (USA & Canada)
- Page 8 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS FIGURE 1: FRONT STABILIZER ASSEMBLY FIGURE 1: FRONT STABILIZER ASSEMBLY Attach the front stabilizer to the main frame (A1). Line up the mounting holes and secure them with bolts (N4), spring washer (N2) and washer (N3)
- Page 9 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS (cont’d) FIGURE 3: FRONT & REAR MAIN FRAME ASSEMBLY Step 1. Mate hand pulse sensor connector A24 to A23 and power cable A31 to A32 Step 2. Slide front and rear main frames together and secure the joint with screw N1, spring...
- Page 10 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS (cont’d) FIGURE 5: SEAT SLIDER RELEASE HANDLE & RIGHT HANDLE BAR ASSEMBLY Step1. Insert the slider handle (A11) into the round peg and use set screw N10 to fix it in place Step 2. Mate hand pulse sensor connector A32 to J1...
- Page 11 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS (cont’d) FIGURE 7: BACKREST & BOTTLE CAGE ASSEMBLY Step 1. Place backrest (H) against backrest tube (A10) and attach with hex screws (N6) Step 2. Place bottle cage (K1) along the hole pattern on the center tube (D)
- Page 12 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS (cont’d) FIGURE_9 PEDAL ASSEMBLY Install the strap on each pedal Step1:Thread the right pedal (L-R) onto the right crank Secure in place by turning it clockwise. Note: Right pedal (L-R) is marked with an “R”...
- Page 13 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS (cont’d) FIGURE_11 SEAT ADJUSTMENTS Push the seat slide adjustment handle (a11) forward, then slide the seat back or forth as desired. Pull the adjustment handle back up to lock the slider in place. FIGURE_12 BACKREST ADJUSTMENTS Backrest position is controlled by a pneumatic cylinder (A13-2) which can be activated to change backrest angles.
- Page 14 HS8 HYBRID CYCLE ASSEMBLY INSTRUCTIONS (cont’d) MOBILITY FIGURE_13 MOVING THE MACHINE The front stabilizer has built-in mobility wheels. Stand at the rear of the machine and lift it up until the weight of the machine is transferred to the wheels. Push or pull to move the machine to a new location.
-
Page 15: Parts List
HS8 HYBRID CYCLE SECTION 3 – PARTS LIST WASHER WASHER A15-8 TRACKING FILM BACKREST TUBE AXLE A10-14 U SHAPE PLASTIC A17-5 BELT END CAP END CAP BLOT 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330, 866-325-2339 (USA & Canada) - Page 16 HS8 HYBRID CYCLE E4-2 E4-3 E8-1 E8-2 E8-3 J-(R) J2-1 J2-2 J3-1 J3-2 BOTTLE HOLDER WATER BOTTLE SCREW MOVING WHEEL FLAT WASHER STOPPING SCREW PANEL E2-3 SCREW BELT WHEEL SCREW 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330, 866-325-2339 (USA & Canada)
-
Page 18: Computer Console
HS8 HYBRID CYCLE SECTION 5 –CONSOLE FUNCTION BUTTONS: MODE To confirm all setting values. To reset all setting values. RESET Press and hold for 2 seconds, monitor will resume to power-up mode. START/STOP To start or stop training. When time countdown to 0:00,the computer will stop automatically and beep for 8 seconds. - Page 19 HS8 HYBRID CYCLE CONSOLE (cont’d) DISTANCE Count up – no preset target, distance will count down from 0.00 to 99.50. Countdown – with preset target, distance will count up from preset to 0. PULSE The monitor will detect heart rate, when user hold on to handgrip sensors and wears chest belt at the same time, the handgrip takes priority.
- Page 21 HS8 HYBRID CYCLE CONSOLE (cont’d) 1-3 User Profile Mode User may create their own profile in this mode. The first segment of the profile will start blinking, then you may press UP or DOWN button to adjust resistance level of each segment and press MODE to confirm.
- Page 22 HS8 HYBRID CYCLE CONSOLE (cont’d) 1-5 H.R.C. Mode User may preset different target heart rate from 55%, 75%, 90% and Target by pressing UP and DOWN button. Press MODE to confirm. TIME : when blinking, you may press UP or DOWN button to set up target training time from 00:00 to 99:00.
-
Page 23: Heart Rate Calculation
HS8 HYBRID CYCLE SECTION 6 – CALCULATING YOUR TARGET HEART RATE Heart Rate (HR) training has become one of the most popular forms of monitoring your workouts. Nothing tells you how your body is feeling like your own heart. By using your heart rate to tell you how hard to train, you can maximize your workout results. -
Page 24: Warranty
FRAME – Lifetime (Home Warranty) BH Fitness warrants the Frame against defects in workmanship and materials for Lifetime, as long as it remains in the possession of the original owner. ELECTRONICS & PARTS – 5 Years (Home Warranty) - Page 25 LABOR – 1 Year (Home Warranty) BH Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of original purchase, as long as the device remains in the possession of the original owner. Labor Warranty does not include the travel time and or expense that may result from the unit being outside of the seller or repair technician’s normal...
