Internal Door mount
Features
◆ IP55 waterproof at external side
◆ Standalone temperature control
◆ RS-485 function
◆ Clear LED status indicator
◆ Dry contact alarm output
Design
◆ Air to air heat exchange
◆ Rated voltage at 48V
◆ High efficiency and reliable fan
◆ Easy installation and maintenance

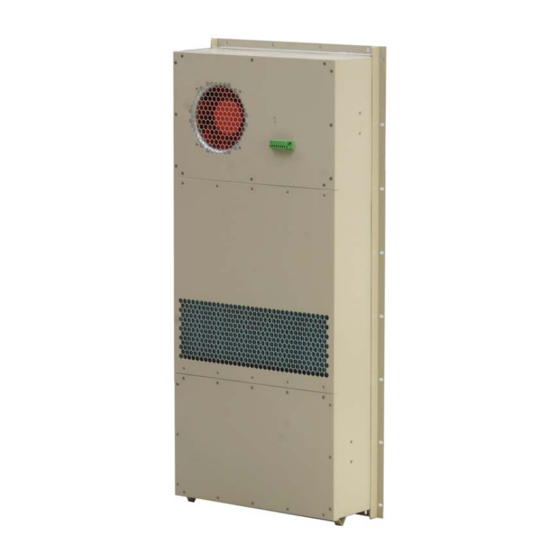

HEX080PD series

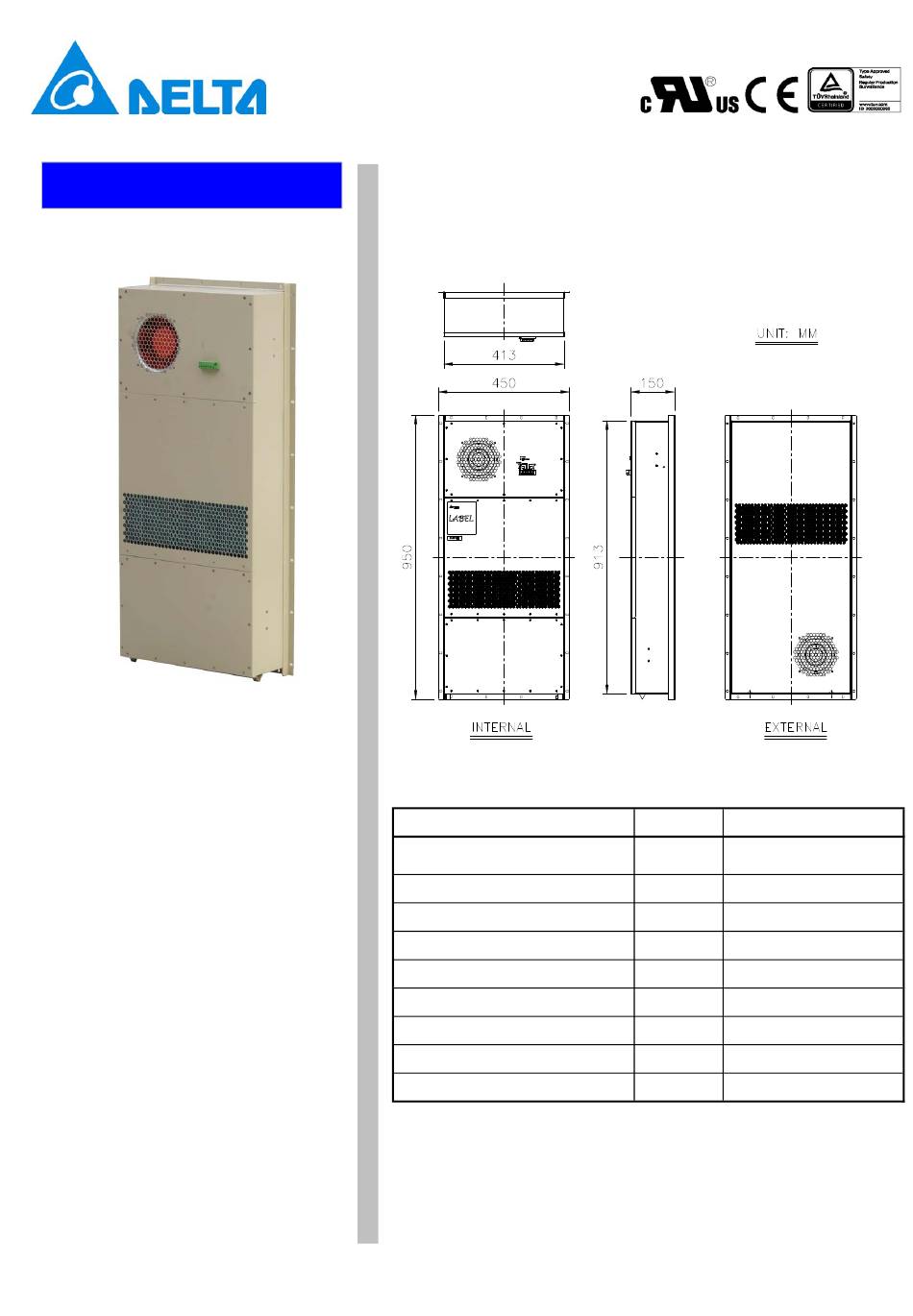

Dimension drawing
Main feature
Dimension (H x W x D)
Cooling capacity
*Note
Rated voltage
Operating current
Opearting power
Operating voltage range
Operating temperature range
Noise (1.5 meter)
Weight
* Note : The cooling capacity (W/K , W/°C or W/℉) is defined as Q/ (T
Q : Heat dissipation (W) from inside of cabinet
: Return temperature of internal air circuit (K , °C or ℉)
T
I
: Ambient temperature of external air circuit (K , °C or ℉)
T
A
* Specifications are subject to change without notice.
Specification
Unit
950 x 450 x 150
mm
(in)
(37 x 18 x 6)
80 (44)
W/K (W/℉
)
48
VDC
2.2
A
106
W
40 ~ 60
VDC
°C
-10 ~ +65
65.0
dB-A
Kg (Lb)
19 (42)
-T
)
I
A
Advertisement
Table of Contents
Related Manuals for Delta HEX080PD Series
Summary of Contents for Delta HEX080PD Series
- Page 1 HEX080PD series Internal Door mount Dimension drawing Main feature Specification Features Unit 950 x 450 x 150 ◆ IP55 waterproof at external side Dimension (H x W x D) (in) (37 x 18 x 6) ◆ Standalone temperature control Cooling capacity 80 (44) W/K (W/℉...
- Page 2 HEX080PD Heat Exchanger Instruction Manual...
-
Page 3: Table Of Contents
Table of contents 1. Version ......................1 2. Description ....................1 2-1. General ....................1 2-2. Specification ..................1 2-3. Environmental condition ................2 3. Installation ....................2 3-1. Outline drawing .................. 2 3-2. Mounting panel cutout and waterproof sticking ......3 4. -
Page 4: Version
2016/6/10 2. Description 2-1 . General Delta Heat Exchanger (HEX) is designed for direct air to air heat exchange to remove heat from the cabinet. The internal and the external air circulation loops of the HEX are separated to prevent the introduction of dust, humidity and dirt. The fan on the external air loop conforms to IP55 protection rating. -
Page 5: Environmental Condition
HEX080PD Heat Exchanger Instruction Manual 2-3 . Environmental condition Description Specification Operating -10° C ~ +65° C (-14° F ~ 149° F) temperature Storage -40° C ~ +70° C (-40° F ~ 158° F) temperature External air circuit: 0 ~ 100% RH Humidity Internal air circuit: 0 ~ 90% RH, Ingress protection... -
Page 6: Mounting Panel Cutout And Waterproof Sticking
HEX080PD Heat Exchanger Instruction Manual 3-2 . Mounting panel cutout and waterproof sticking TOLERANCE : ± 0.5MM [0.197] View from internal side 4. Electrical specification 4-1. Connection and LED indicator (on HEX panel) Connection Dry contact max. rating : 60VDC/400mA User can select dry contact definition both normal open (N.O.) or normal close (N.C.) themselves for alarm output that is shown as next page Page 3... -
Page 7: Standalone Control Mode
HEX080PD Heat Exchanger Instruction Manual Definition N. O N. C Connection Pin 3 , 4 Pin 5 , 4 Control board, NTC and fan are in OPEN CLOSE normal status Power-off or control board is disabled CLOSE OPEN NTC resistance is over range such as CLOSE OPEN “open circuit”... -
Page 8: Mechanical Feature
HEX080PD Heat Exchanger Instruction Manual 5. Mechanical feature 5-1 . Thermal path and Airflow baffle With forced convection using the centrifugal fan, warm air generated by the equipment will be blown into the internal return opening and pass though the HEX, then flow out from internal supply opening. The air supply of the cold air will be used to cool down the system;... -
Page 9: Configuration
HEX080PD Heat Exchanger Instruction Manual 5-2 . Configuration Item Q'ty Description Chassis assy Frame assy Controller Internal fan External fan Heat exchange CORE Internal plate assy External plate assy 6. Maintenance and Replacement Be sure to SHUT DOWN the power before proceeding with any maintenance or component replacement . -
Page 10: Maintenance
HEX080PD Heat Exchanger Instruction Manual 6-1. Maintenance Monthly Use brush and low pressure air to remove the dust or any debris on both internal/external air inlet and air outlet opening . Quarterly Follow below maintenance sequence Internal loop maintenance : * The maintenance is from internal side . -
Page 11: Replacement
Refer to Section 4-1 for checking abnormal part is internal fan , external fan or controller for abnormalities . In cases of parts abnormality , Delta will follow the reading and submit spare part(s) below for replacement . Internal fan P/N : TCA1748ATAMW... -
Page 12: Safety
HEX080PD Heat Exchanger Instruction Manual 8. Safety 9. General Safety and Warnings * Some electronic parts have a high operating temperature . Use caution at all times. * Incorrect installation may cause damage and/or injury. * Installation and maintenance should be performed only by qualified personnel .
