Internal door mount
Features
◆ IP55 waterproof at external side
◆ Dry contact alarm output
Design
◆ Air to air heat exchange
◆ Rated voltage at 24V
◆ Reduntant fan quantity design
◆ High efficiency and reliable fan
◆ Easy installation and maintenance

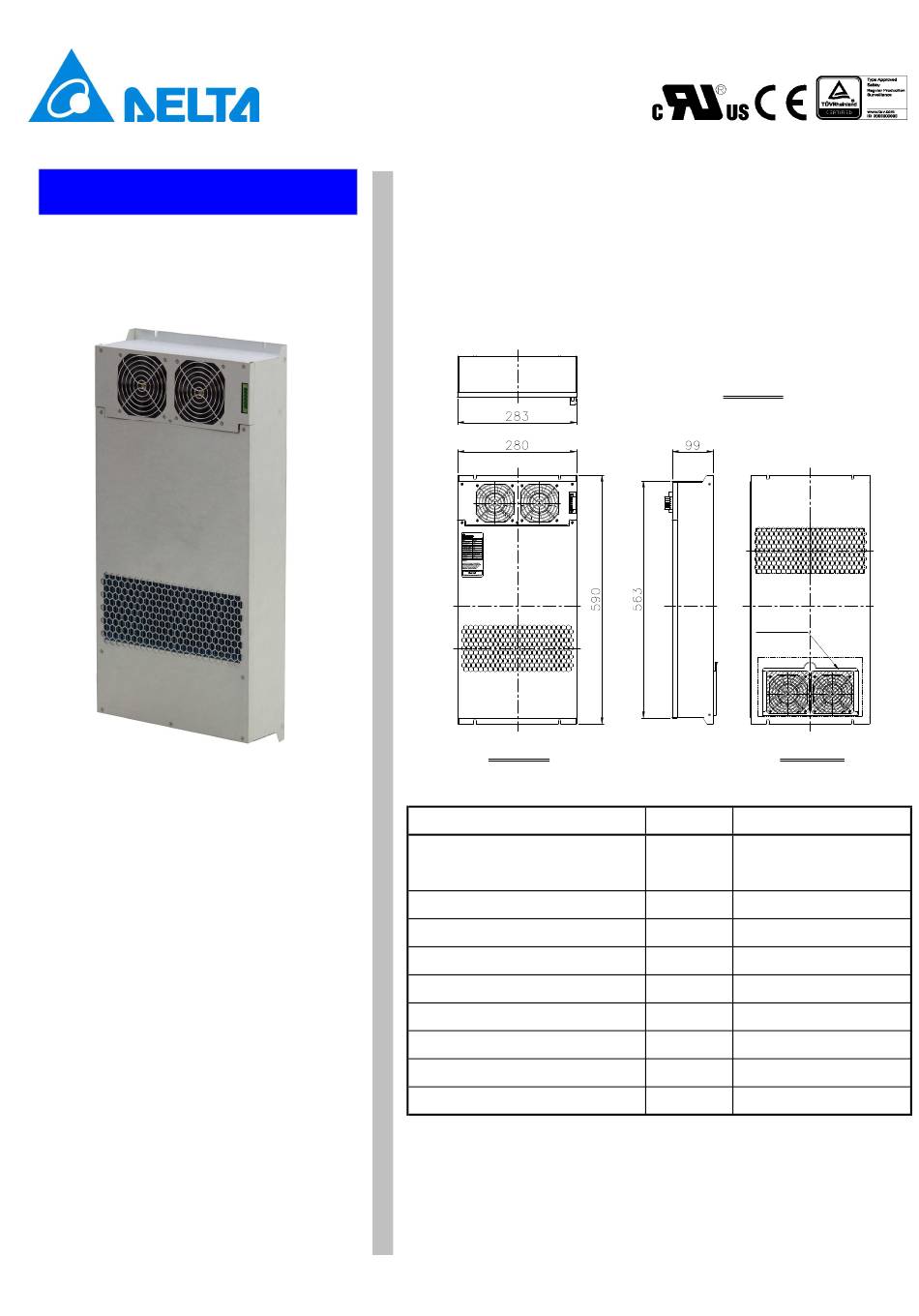

HEX020VA series
Dimension drawing
XXXXXXXXXXXXXXXX YYWW-SSSS
INTERNAL
Main feature
Dimension (H x W x D)
Cooling capacity
*Note
Rated voltage
Operating current
Opearting power
Operating voltage range
Operating temperature range
Noise (1.5 meter)
Weight
* Note : The cooling capacity (W/K , W/°C or W/℉) is defined as Q/ (T
Q : Heat dissipation (W) from inside of cabinet
: Return temperature of internal air circuit (K , °C or ℉)
T
I
: Ambient temperature of external air circuit (K , °C or ℉)
T
A
* Specifications are subject to change without notice.
UNIT : MM
Dust filter
EXTERNAL
Specification
Unit
mm
590 x 283 x 99
(inch)
(23 x 11 x 4)
20 (11)
W/K (W/℉
)
VDC
24
A
0.9
W
22
VDC
20 - 26
-10 ~ +65
°C
54.0
dB-A
7 (15)
Kg (Lb)
-T
)
I
A
Advertisement
Table of Contents
Related Manuals for Delta HEX020VA
Summary of Contents for Delta HEX020VA
- Page 1 HEX020VA series Internal door mount Dimension drawing UNIT : MM XXXXXXXXXXXXXXXX YYWW-SSSS Dust filter INTERNAL EXTERNAL Main feature Specification Features Unit ◆ IP55 waterproof at external side 590 x 283 x 99 Dimension (H x W x D) (inch) (23 x 11 x 4) ◆...
- Page 2 HEX020VA Heat Exchanger Instruction Manual...
-
Page 3: Table Of Contents
Table of contents 1. Version ......................1 2. Description ....................1 2-1. General description ................. 1 2-2. Main feature ..................2 2-3. Dimension ..................3 2-3-1. Label .................... 3 2-3-2. Dimension drawing ..............4 2-3-3. Mounting panel cutout and waterproof sticking ....... 4 3. -
Page 4: Version
HEX020VA Heat Exchanger Instruction manual 1． ． ． ． Version Rev. Description Drawn Approved Issue date 李武奇 Issue spec. 9/30’14 陳英琦 李武奇 陳英琦 Correct 2-2 & 5-1 12/3’14 Correct section 9 Nick Wang Adam Chen 2016/6/10 2． ． ． ． Description 2-1．... -
Page 5: Main Feature
HEX020VA Heat Exchanger Instruction manual Delta Heat Exchanger (HEX) is designed for direct air to air heat exchange to remove heat from the cabinet. The internal and the external air circulation loops of the HEX are separated to prevent the introduction of dust, humidity and dirt. -
Page 6: Dimension
HEX020VA Heat Exchanger Instruction manual 2-3． ． ． ． Dimension 2-3-1． ． ． ． Label (2”) (3.5”) (2”) (0.6”) XXXXXXXXXXXXXXXX YYWW-SSSS NAME PLATE LABEL BARCODE LABEL - 3 -... -
Page 7: Dimension Drawing
HEX020VA Heat Exchanger Instruction manual 2-3-2． ． ． ． Dimension drawing NOTE : (1) Material : SGLC T=0.8mm (2) Dimensional tolerance : ± 0.5mm[±0.02"] XXXXXXXXXXXXXXXX YYW W-SSSS Dust filter INTERNAL EXTERNAL 2-3-3． ． ． ． Mounting panel cutout and waterproof foam sticking ：... -
Page 8: Configuration & Maintenance
HEX020VA Heat Exchanger Instruction manual 3． ． ． ． Configuration & Maintenance 3-1． ． ． ． Configuration The HEX is composed of the key components as the following : Chassis , Heat exchange Core , Controller Internal/External fan tray &... -
Page 9: Dust Filter Maintenance
HEX020VA Heat Exchanger Instruction manual 3-3． ． ． ． Dust filter maintenance Criterion: Monthly 1.Please kindly slide dust filter out upward from trail on external side 2.Use brush and low pressure air to blow out the dust or use water for cleaning 3.Slide dust filter into the rail back... -
Page 10: Connector
HEX020VA Heat Exchanger Instruction manual 4-2． ． ． ． Connector On panel ： 2EHDRM-06P Mate with ： 2ESDPLM-06P XXXXXXXXXXXXXXXX YYWW-SSSS 5． ． ． ． Environmental condition 5-1． ． ． ． Operating temperature -10° C ～ +65° C 5-2． ． ． ． Storage temperature -40°... -
Page 11: Reliability
HEX020VA Heat Exchanger Instruction manual 6. Reliability Test item Condition High temperature IEC 60068-2-2 Low temperature IEC 60068-2-1 High temp. / High humidity IEC 60068-2-14 TEST Nb Temperature cycle IEC 60068-2-3 Vibration ETSI 300 019-1-4 CLASS 4.1 Ingress protection (External side)
