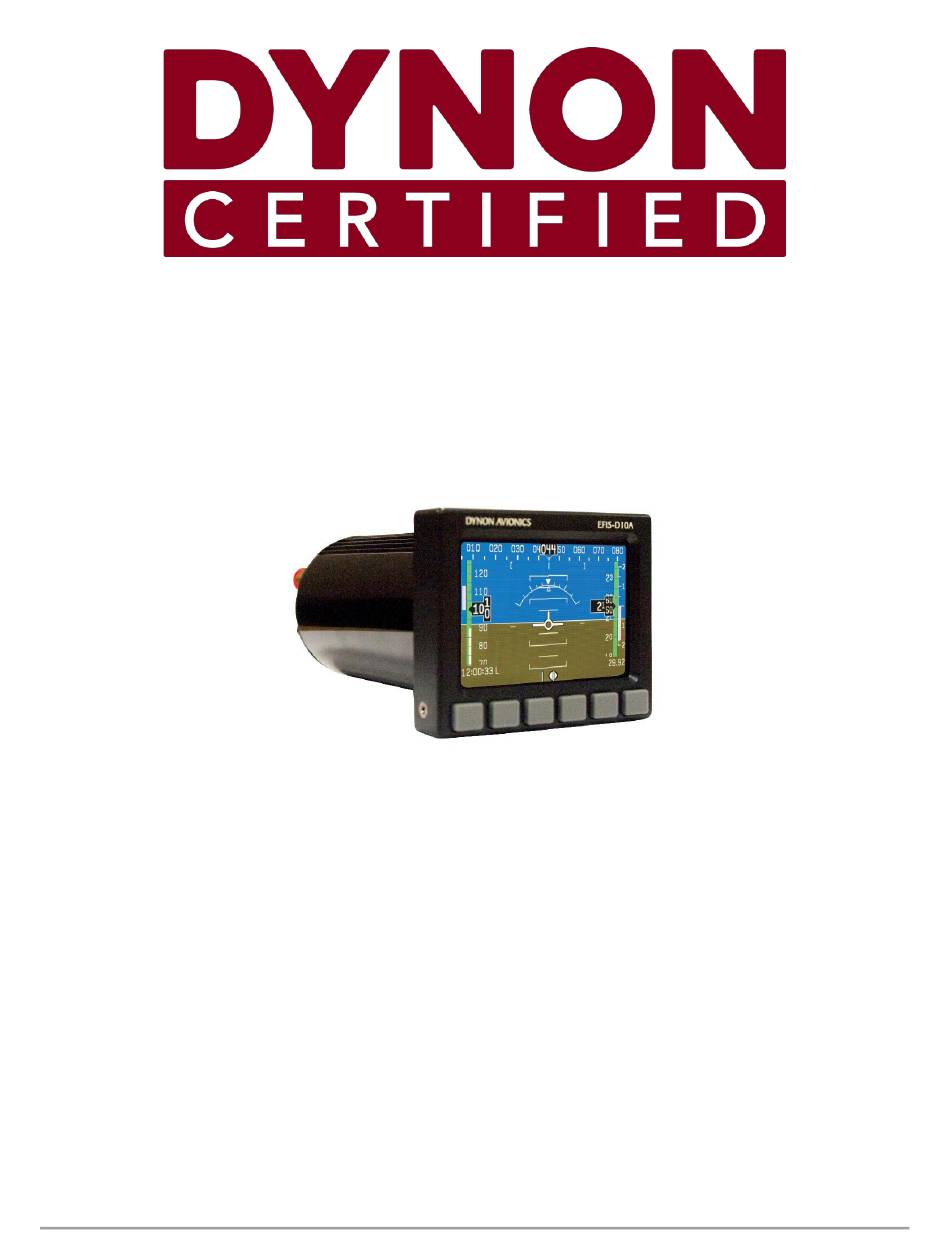

EFIS-D10A
Standby Flight Display
Installation and Maintenance Manual
Includes Instructions for Continued Airworthiness (ICA)
STC SA02594SE
103914-000
Copyright © 2021 by Dynon Avionics, Inc.
Dynon Avionics grants third parties' permission to print this document.
EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021
Page | i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFIS-D10A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynon EFIS-D10A

Summary of Contents for Dynon EFIS-D10A

  • Page 1 Installation and Maintenance Manual Includes Instructions for Continued Airworthiness (ICA) STC SA02594SE 103914-000 Copyright © 2021 by Dynon Avionics, Inc. Dynon Avionics grants third parties' permission to print this document. EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021 Page | i...
  • Page 2 Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes.
  • Page 3 FAA feedback received on 9/1/2021. Section renamed/renumbered and subsequent sections renumbered. • Added Section 6: Display Operation and referenced the EFIS-D10A Airplane Flight Manual Supplement document per FAA feedback received on 9/1/2021. Subsequent sections renumbered. Added a link to Section 5.3 Initial Operation Check in Section 8.3 per FAA •...
  • Page 4 Removed FAA Approval section per FAA feedback received on 9/21/2021. • Revised Section 1.5: Reference Documents to list the SkyView HDX Airplane Flight Manual Supplement document as source for EFIS-D10A operations information. • Revised Section 2 per FAA feedback received on 9/21/2021.

  • Page 5: Table Of Contents

    Backup Battery Test ....................7-2 Backup Battery Replacement ................... 7-2 Unit Removal and Replacement ................7-3 Altimeter Function Test .................... 7-5 Altimeter Adjustment ....................7-5 Firmware Updates ....................7-5 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021 Page | v...
  • Page 6 This page intentionally left blank. Page | vi EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 7: Introduction

    Dynon Marketing email release. Using this Manual To save paper, Dynon does not provide a printed version of this manual. However, Dynon grants permission to third parties to print this manual, as necessary. The most recent PDF version is available for download at dynoncertified.com/certified-documentation.

  • Page 8: 1.4 Manual Iconography

    Product Delivery Upon delivery, visually inspect the EFIS-D10A and accessories (fasteners, cable harness, etc.) for damage that may have occurred during shipping. If damage has occurred, contact Dynon Technical Support. Product Registration Register the EFIS-D10A at dynon.com/product-registration.

  • Page 9: Installation Record

    The mechanic or facility performing the installation should record where the equipment has been installed in the airplane. This documentation should be entered into airplane’s permanent record. Dynon provides a document template to record this information. Download the SkyView HDX Equipment Installation Record document at dynoncertified.com/certified-documentation.
  • Page 10 This page intentionally left blank. Page | 1-4 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 11: Airworthiness Limitations

    Airworthiness Limitations For any Airworthiness Limitations associated with the installation of the EFIS-D10A, see the SkyView HDX General Maintenance Manual document at dynoncertified.com/certified- documentation. It is the principal ICA document for the SkyView HDX system. EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...
  • Page 12 This page intentionally left blank. Page | 2-2 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 13: System Overview

    The front panel contains buttons and a display. There are six buttons on the front panel of the EFIS-D10A. The buttons are referred to as 1 through 6, with button 1 being the leftmost and button 6 being the rightmost. The buttons are used to turn the unit on and off, access and scroll through menus, and adjust instrument parameters.

  • Page 14: System Operation

    3.1.1 Menu System All interaction with the EFIS-D10A is accomplished using its menu system. The menu system is accessed and navigated via six buttons and associated labels. To enter the menu system, press any button (except 1 and 6). To exit the menu system, press the BACK button as many times as needed.
  • Page 15 4. Press 29.92 / 1013 to quickly set altitude setting to standard pressure. 5. Press DEC – and INC + to adjust altimeter setting as needed. 6. When done, press BACK/EXIT. EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021 Page | 3-3...
  • Page 16 This page intentionally left blank. Page | 3-4 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 17: Certified Installation Compliance

    (i.e., methods, unit location, wire harness routing, etc.) before installation activities begin. This will help avoid potential rework should any part of the installation be found non-compliant. EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021 Page | 4-1...
  • Page 18 This page intentionally left blank. Page | 4-2 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 19: Installation

    This section provides information and instructions for installing the EFIS-D10A. Mechanical Installation The Dynon EFIS-D10A must be installed within the primary maximum field-of-view boundary, as close as practicable to the SkyView HDX display. According to AC 23.1311-1C, the primary maximum field-of-view is based on vertical and horizontal visual fields from the pilot's eye reference point that can be observed with eye movement and minimal head movement only.
  • Page 20 Line-up threaded studs to holes and insert unit into instrument panel. Secure unit to instrument panel with included #6 flat washers and #6-32 lock nuts. Figure 5: EFIS-D10A, Panel Cutout & Mounting Dimensions Page | 5-2 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...
  • Page 21 Static lines. Use T-connectors to splice into existing Pitot and Static lines. Remove male plugs from Pitot and Static female pipe fittings on EFIS-D10A. Plug in AoA pipe fitting remains in place. Apply Teflon tape and thread 1/8" NPT adapters into Pitot and Static female fittings on EFIS-D10A.

  • Page 22: Electrical Installation

    No Connection The EFIS-D10A is compatible with 14V and 28V electrical systems and requires a power supply of 10–30V DC. Power input to the EFIS-D10A must be protected with an aviation-grade 3A circuit breaker or replaceable fuse. To connect the EFIS-D10A to an airplane's electrical system: Make sure airplane power is disconnected.

  • Page 23: Initial Operation Check

    Initial Operation Check After completing the mechanical and electrical installations, installer must verify EFIS-D10A operation. To verify operation of the EFIS-D10A: 1. Turn ON unit's power source. Unit should start up. 2. If unit does not start up, press and hold Button #1 (first button on left).

  • Page 24: Configuration

    Configuration There are a few simple configuration tasks that must be completed before using the EFIS-D10A. This section guides you through those tasks. 5.4.1 Display Functions Some display functions on the EFIS-D10A have not been approved for Certified installations by STC SA02594SE.
  • Page 25 (except far left and right buttons) on EFIS page, and then pressing MORE > SETUP > UNITS > IAS. Always make sure the EFIS-D10A airspeed unit is the same as the SkyView HDX display airspeed unit.
  • Page 26 Press INC - or DEC + until the horizon line intersects the center of the crosshairs. When finished, press BACK > EXIT. This calibration must be performed while the airplane is level to ensure proper pitch and roll display throughout all maneuvers. Page | 5-8 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 27: Troubleshooting

    Troubleshooting The EFIS-D10A includes limited self-diagnostic capability. If a fault with the EFIS-D10A is detected, a message will be displayed on the screen. The following table provides a recommendation for each specific warning. Table 4: EFIS-D10A Self-Diagnostic Messages MESSAGE POSSIBLE CAUSES...
  • Page 28 This page intentionally left blank. Page | 6-2 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 29: Maintenance

    Maintenance This section provides information about maintaining and servicing the EFIS-D10A. No special tools or facility are required to maintain or service the EFIS-D10A. Table 5: Periodic Maintenance ITEM DESCRIPTION / PROCEDURE INTERVAL Component See Section 6: Troubleshooting and Section 7.3: Unit Removal and...

  • Page 30: Backup Battery Test

    Backup Battery Test The EFIS-D10A backup battery must be tested once every 12 months to ensure it is operational and meets the nominal 45-minute expected backup operation period. The backup battery must be fully charged prior to beginning the test.

  • Page 31: Unit Removal And Replacement

    Plug backup battery electrical connector into matching unit electrical connector. Verify new backup battery is operational by pressing Button #1 on EFIS-D10A page. Unit should boot up and present the display. Press and hold Button #1 until unit powers off.
  • Page 32 Check system for leaks (see airplane manufacturer's maintenance manual for instructions). Ensure airspeed, altitude, and attitude indicators are working (see Section 5.3 Initial Operation Check for instructions). Figure 6: EFIS-D10A, Rear View Page | 7-4 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...

  • Page 33: Altimeter Function Test

    Avionics to return unit for service. Firmware Updates Version 5.4.1 is the latest and final firmware version for the EFIS-D10A. If the unit is running an older version, contact Dynon Avionics Technical Support for help upgrading. To check EFIS-D10A firmware version: •...
  • Page 34 This page intentionally left blank. Page | 7-6 EFIS-D10A - Installation and Maintenance Manual, Rev D, 10/21/2021...
