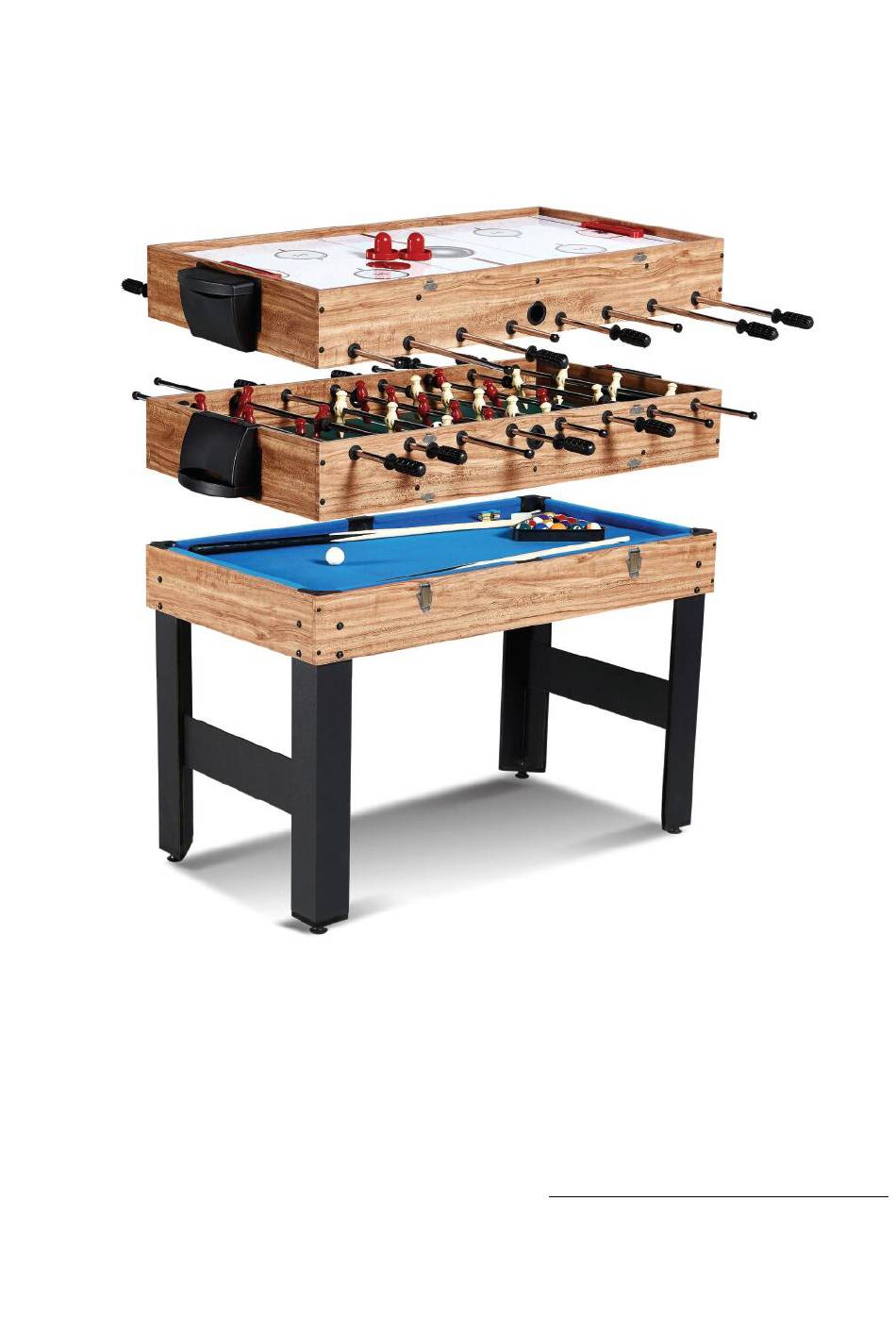

  • Page 1 USER'S MANUAL 48” 3 in 1 Multi-game Table SP37328...
  • Page 2 SP37328 PARTS LIST Billiard Mainframe End Apron Soccer Playfield Hockey Playfield Side Apron Support Brace Leg Panel Hockey Goal Player - Red Player - Ivory Rod Washer Goal Box-Top Foam Bumper Rod End Cap Handle Pusher Goal Box-Bottom Felt Pad...
  • Page 3 SP37328 PARTS LIST 1/4'' x 1-1/8'' Bolt 1/4″ Washer Allen key 4x35mm Screw 3x18mm Screw 3x12mm Screw 4x12mm Screw 4x15mm Screw SP37328 PRE-INSTALLED PARTS Plastic Rod Plastic Ball Pocket 5/16″ T - Nut Entry Rim Bushing Side Pocket Cap Corner Pocket Cap 1/4″...
  • Page 4 FIG.1 X 16 X 16 X 16 FIG.1 3. Attach the Legs (#7) to the Billiard Mainframe (#1) using four Bolts (#A2) and four Washers (#A3) per Leg. 4. Screw the Leg Levelers (#33) into the bottom of each Leg.
  • Page 5 FIG.2 FIG.2A FIG.2 5. Attach the Leg Panels (#8) to the Legs using four Screws (#A8) per Leg Panel. See FIG. 2. 6. Lift the table assembly from the floor with two strong adults, turn it over, and set table on its legs in the location where you play.
  • Page 6 FIG.3 The groove for Hockey Playfield The groove for Soccer Playfield FIG.3 See FIG. 3. 7. Attach two Side Aprons (#6) to the one End Apron (#2) using four Screws (#A4). Note: Do not tighten the Screws at this step. 8.
  • Page 7 FIG.5 FIG.5 10. Slide the Hockey Playfield (#4), with graphics facing up, into the grooves of Side and End Aprons (#6 & #2). See FIG. 5. FIG.6 FIG.6A FIG.6B FIG.6 11. Attach the other End Apron (#2) to the Side Aprons (#6) using four Screws(#A4). See FIG.
  • Page 8 FIG.7 X 24 FIG.7A FIG.7 14. Turn the Soccer Table (See FIG. 6) over and then place it on the top of the Billiard Mainframe (#1). 15. Attach the Top and Bottom Goal Boxes (#16 and #17) to the End Aprons (#2) using two Screws (#A5) per Goal Box. 16.
  • Page 9 X 13 FIG.8 X 13 X 16 FIG.8B X 16 Handle Hole FIG.8A X 26 ORDER OF PLAYERS (Overhead View) X 16 FIG.8C = Red Note: Players of the same team color should have Handles (#15) on the same side, and each team’s players should be facing their opponent.
  • Page 10 Soccer Hockey Billiard DI RECT I ON S FOR PL A Y I N G V A RI OU S GA M ES 1) Billiard - Play the game as assembled using the Billiard Ball Set (#26), Cue (#27), Triangle (#28). 2) Soccer - Place the Soccer table on the top of the Billiard Frame.
  • Page 11 Great products so far February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, Costway will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office:Fontana UK...
