ASSEMBLY INSTRUCTION FOR ACME FURNITURE

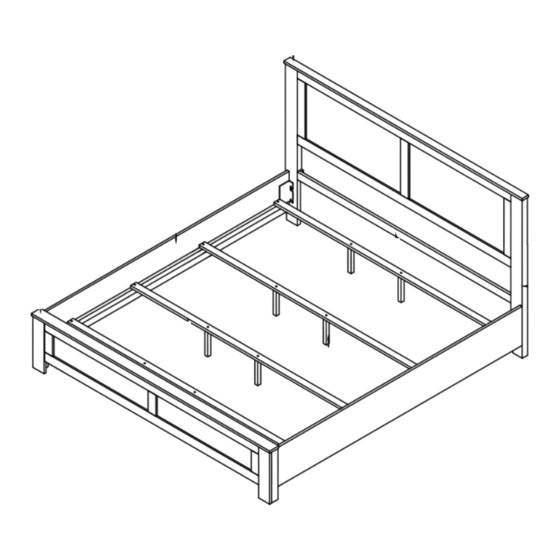

MODEL # 27317 EK-HF - EK HEADBOARD&FOOTBOARD
MODEL#27318EK-R-KING BED-RAILS
Thank you for purchasing this quality product.Be sure to check all packing material carefully for small
parts which may have come loose inside the carton during shipment .Separate,identify and count all
parts and metal hardware. compare with parts list to be sure all parts are present. If any part (S) are
missing or damaged, please contact your local fumiture dealer. for efficient and speedy service, please
indicate the model number and code letter of parts (s) when needed.
Do not fully tighten screws until fully assembled
HARDWARE LIST
No Description
A
Allen Bolt
B
Allen Bolt
Lock Washer
C
D
Flat Washer
E
Allen Key
F
Screw
Cotter Nut
G
2
PAGE 1 0F 2
PDF created with pdfFactory Pro trial version
Size
Sketch
5/16"X35mm
5/16"X55mm
5/16"
5/16"X19X2mm
4mm
#8X25mm
1/4"X35mm
4
6
No. Description
Qty
8pcs
10pcs
18pcs
18pcs
1 pc
8 pcs
2sets
1
5
7
www.pdffactory.com
Sketch
1
Headboard Panel
2
Footboard
Headboard Post
3
Side Rails
4
Headboard bottom
5
stretcher
Slat
6
Support Leg
7
3
MADE IN VIET NAM
Qty
1 pc
1 pc
2 pcs
2 pcs
1 pc
4 Set
8 pcs
