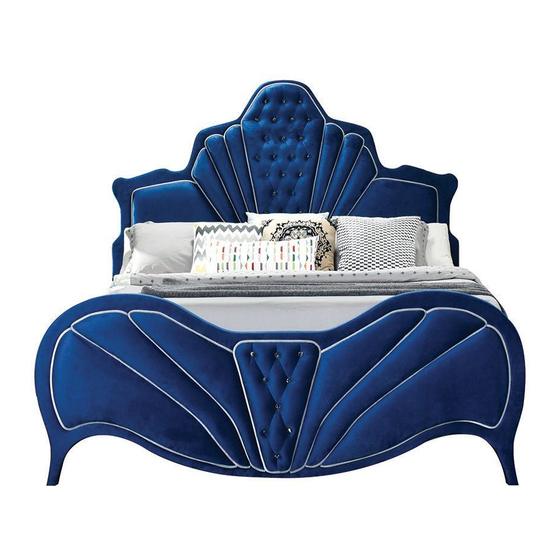

Acme Furniture 24220Q Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR ACME FURNITURE
MODEL #24220Q #24230Q #24217EK #24227EK
Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare
with all parts list to be sure all parts are present. If any part (s) are missing or damaged, please contact your local furniture
dealer. For efficient and speedy service, please indicate the model number and code letter of part (s) needed.
***Do not fully tighten bolts and screws until fully assembled***

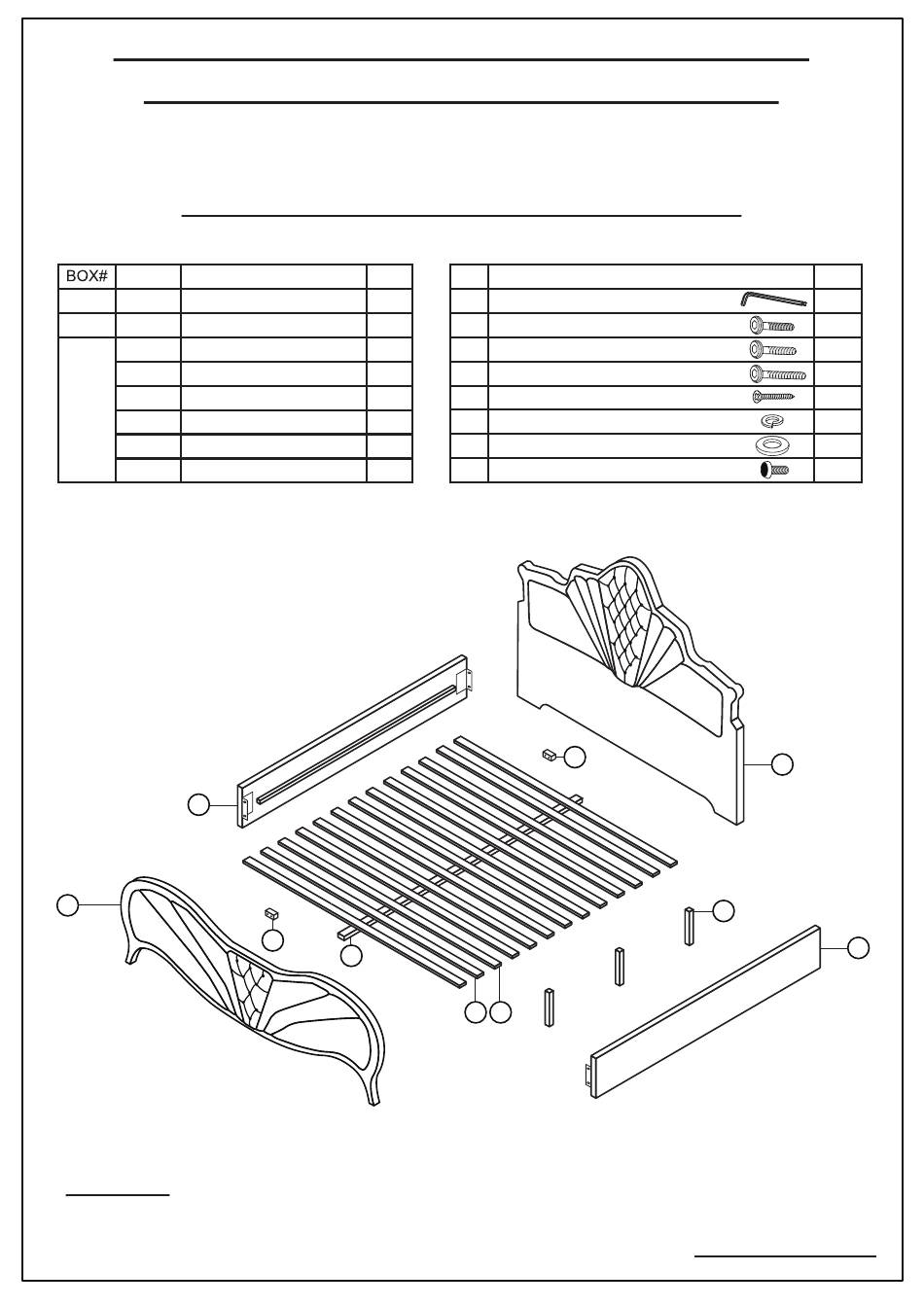

PART LIST :
PART# DESCRIPTION
1 1 Headboard
2
2 Footboard
3 Side Rail
4 Slat with 2 Holes
5 Slat with 3 Holes
3
6 Leg Support
7 Center Rail
8 Center Rail Support
3
2
Attention:
*** Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.
QTY
1
1
2
10
3
3
1
2
8
7
HARDWARE LIST :
NO DESCRIPTION
A Allen Key M4 With Ball
B JCBC Bolt M6 x 30mm
C JCBC Bolt M6 x 45mm
D JCBC Bolt M6 x 60mm
E CSK Screw M4 x 32mm
F Spring Washer M6 x 13 x 1.0
G Flat Washer Medium M7 x 19 x 2.0
H Adjuster
8
4 5
QTY
1
8
4
3
28
8
8
3
1
6
3
Revised Date: 22 / 11 / 2019
PAGE 1 OF 3
