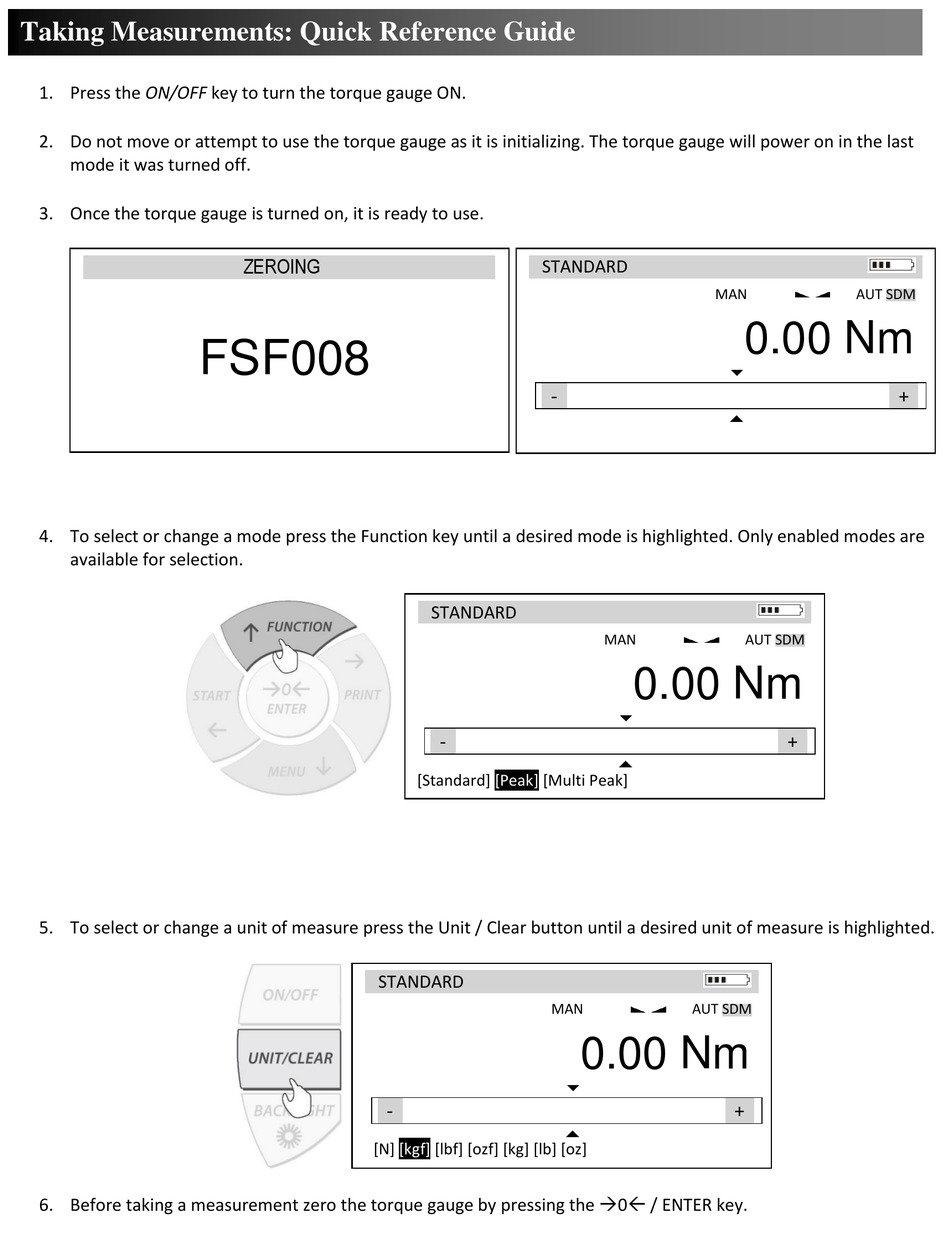

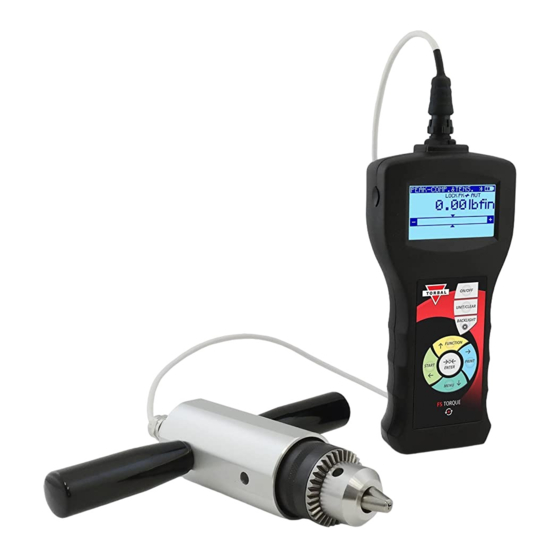

Taking Measurements: Quick Reference Guide
1. Press the ON/OFF key to turn the torque gauge ON.
Chapter 7: Taking Measurements and Saving Results
2. Do not move or attempt to use the torque gauge as it is initializing. The torque gauge will power on in the last
mode it was turned off.
3. Once the torque gauge is turned on, it is ready to use.
FSF008
FCF008
4. To select or change a mode press the Function key until a desired mode is highlighted. Only enabled modes are
available for selection.
5. To select or change a unit of measure press the Unit / Clear button until a desired unit of measure is highlighted.
6. Before taking a measurement zero the torque gauge by pressing the 0 / ENTER key.
ZEROING
[Standard]
[Standard]
STANDARD
-
[N]
[kgf]
STANDARD
[N]
[kgf]
STANDARD
-
STANDARD
STANDARD
-
MAN
-
[Peak]
[Multi Peak]
STANDARD
MAN
[Peak]
[Multi Peak]
-
MAN
0.00 Nm
[lbf] [ozf] [kg] [lb] [oz]
MAN
[lbf] [ozf] [kg] [lb] [oz]
MAN
0.00 Nm
MAN
0.00 N
AUT SDM
0.00 Nm
+
AUT SDM
0.00 N
+
AUT SDM
+
AUT SDM
0.00 N
AUT SDM
+
AUT SDM
+
