HTC AVM-06 Introduction Manual

Digital anemometer
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

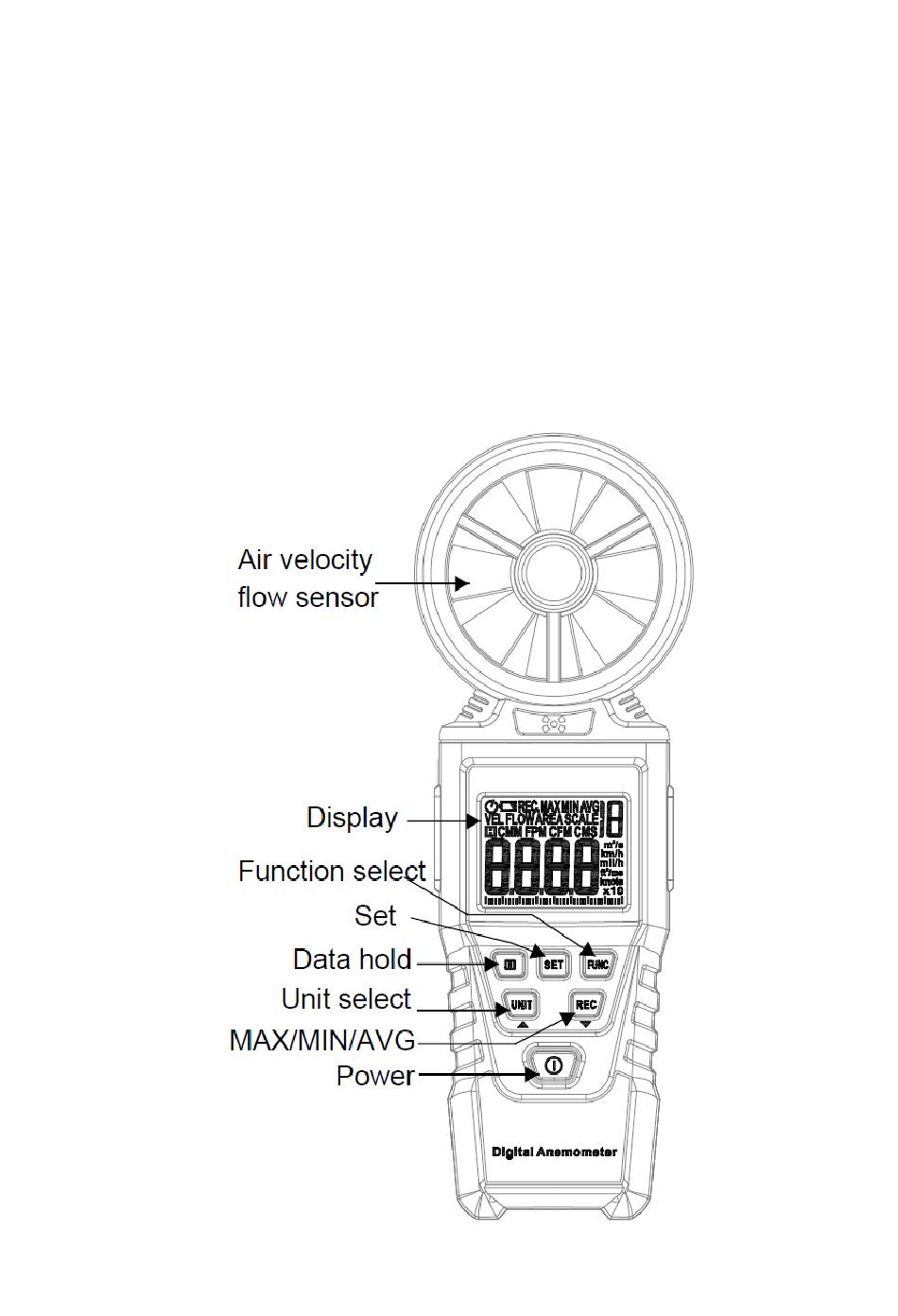

Introduction AVM-06
A professional digital anemometer with stable performance,
safety and reliability. It can measure air velocity, air volume,
Widely used in wind energy, meteorology, industry, agriculture,
hydrology and water conservancy, environmental protection,
highways, airports, etc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVM-06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HTC AVM-06

Summary of Contents for HTC AVM-06

  • Page 1 Introduction AVM-06 A professional digital anemometer with stable performance, safety and reliability. It can measure air velocity, air volume, Widely used in wind energy, meteorology, industry, agriculture, hydrology and water conservancy, environmental protection, highways, airports, etc.
  • Page 2 Display symbols description symbols description Data hold meter per second Maximum value Km/h kilometers per hour Minimum value mil/h Miles per hour Average value ft/m Foot/minute Air velocity ft/s Feet / sec FLOW Air flow knots nautical miles per hour AREA Air duct area setting Square meter...

  • Page 3: Measurement Considerations

    Measurement Considerations Do not touch the fan blade with force. Do not store or operate the instrument in areas with high temperature or humidity. In use, do not let the strong light directly shine on the fan, in order to avoid measurement errors.
  • Page 4 display A data bit is flickering, indicating that this value can be modified. Press the REC button to set the scintillation digit to the desired value。 Press the UNIT button to select the next digit to be adjusted. After adjusting all the digits, it will jump to the adjusting unit.
  • Page 5 Note: To measure the airflow, the cross-sectional area of the tested air duct must be determined and input into the anemometer. Data hold To freeze a displayed reading, press the button. The “H” icon will appear and the most recent reading will appear in the display.
  • Page 6 Press again to toggle between the MAX 、 MIN and AVG readings. To exit the MAX/MIN/AVG mode and return to the normal real time display, press and hold the button (2 seconds). Units of measure Air velocity unit selection Press the UNIT button to select unit(m/s、 km/h、 mill/h、 ft/m、 ft/s、knots),when measuring air velocity.

  • Page 7: Specifications

    auto power off function will be cancelled. And the icon disappears. Specifications Display LCD, Max display 9999 Air velocity 0.40 ~ 30.00 m/s Sampling rate Approx. One reading per second Sensor Air velocity/flow sensor: angled vane arms with bearing Beaufort Wind scale 0~12 Max/Min/Avg Record and view minimum, maximum, average...

  • Page 8: Accuracy Specifications

    Accuracy Specifications The accuracy applies within one year after the calibration. Reference condition: the environment temperature 18°C to 28°C, the relative humidity is no more than 80%, Air Velocity Measurements Range Resolution Accuracy m/s (meters per second) 0.40 ~ 30.00 0.01 ±(2.0%+ 0.5m/s) km/h (kilometers per hour)

  • Page 9: Maintenance

    Maintenance Battery Replacement When the battery voltage is low the ‘ ’ symbol will appear on the display. Replace the three (3) 1.5 ‘AAA’ batteries by removing the rear (center) battery compartment screw and accessing the battery compartment. Observe polarity when placing the batteries in the compartment.
