User's Manual

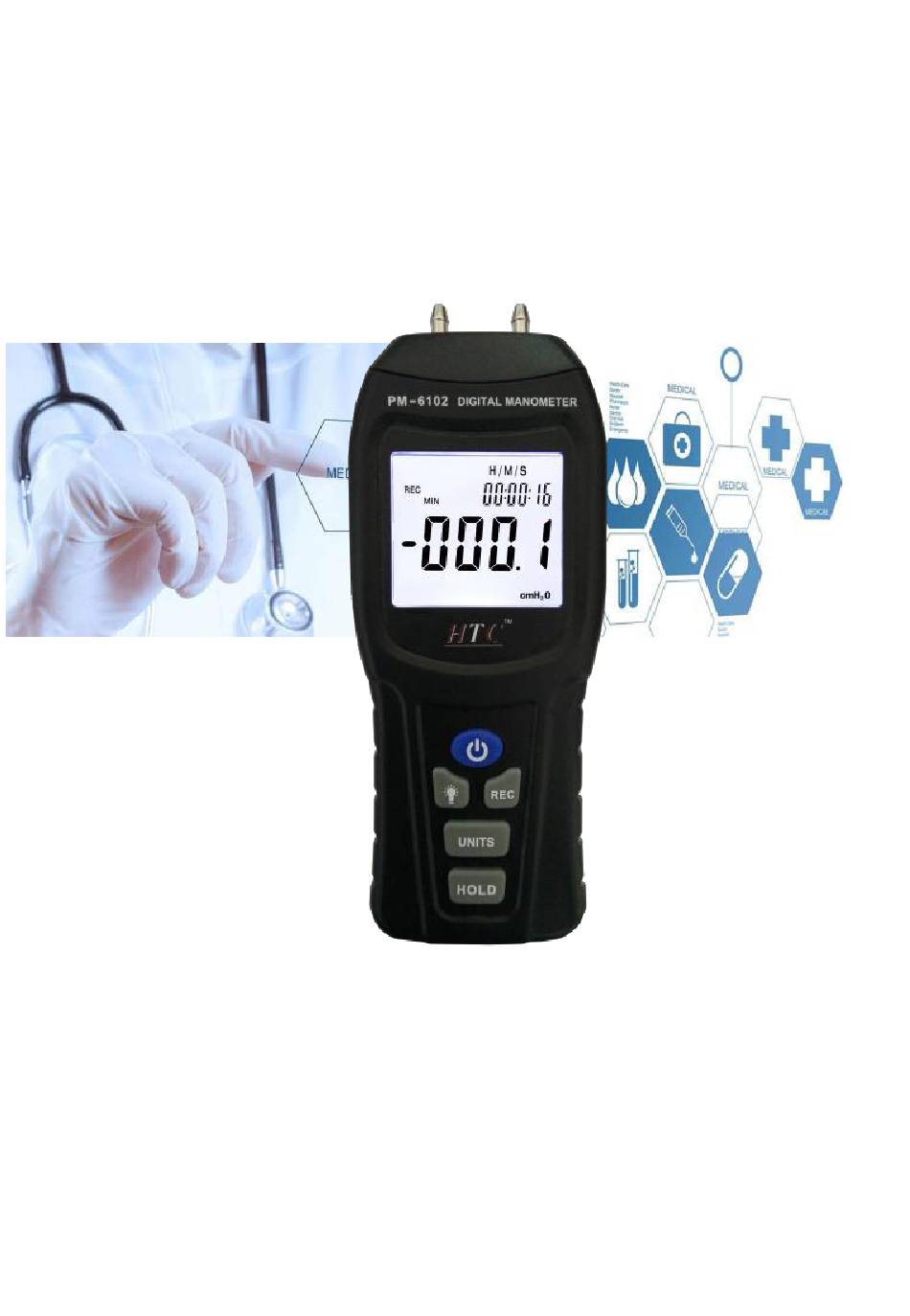

HTC Manometer
Please read this user's manual thoroughly before using
this unit and keep it properly for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-6102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HTC PM-6102

  • Page 1 User's Manual HTC Manometer Please read this user's manual thoroughly before using this unit and keep it properly for your future reference.
  • Page 3: Table Of Contents

    Contents 1. Safety ..................1 2. Introduction ................2 3. Error Warning................ 2 4. Specification................3 5. Meter Description ..............5 6. LCD display ................6 7. Operation steps ..............6 8. Buttons function ..............6 9. Notes ..................8 10.
  • Page 4: Safety

    Safety Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as specified in this manual; otherwise, the protection provided by the meter may be impaired. ▲ Environment conditions: 1) RH≤90%(Non-Condensation) 2) Operating Temperature-0~40℃ Maintenance and cleaning 1) Repairs or servicing not covered in this manual should only be performed by qualified personnel.
  • Page 5: Introduction

    2. Introduction This product is aimed to measure different pressure values, here are some units for Choice: inH2O, psi ,bar, mbar , kPa, inHg, mmHg ,ozin ftH2O, cmH2O ,kgcm .equipped with simple Tube connection. It is widely used in measurement of ventilation and air conditioning system, clean room or any gas pressure system troubleshooting .Easy operation and clear reading.
  • Page 6: Specification

    4. Specification PM-6102 PM-6105 PM-6115 unit Range Resolution Range Resolution Range Resolution inH2O ±55.40 0.01 ±138 ±415.2 ±2.000 0.001 ±5.000 0.001 ±15.00 0.01 Mbar ±137.8 ±344.7 ±1034 ±13.79 0.01 ±34.47 0.01 ±103.4 inHg ±0.407 0.001 ±1.018 0.001 ±30.54 0.01 mmHg ±103.4...
  • Page 7 unit PM-6130 PM-6175 Range Resolution Resolution Range inH2O ±830 ±2078 ±30.00 0.01 ±75.00 0.01 Mbar ±2608 ±5168 ±206.8 ±517.1 inHg ±61.08 0.01 ±15.00 0.01 mmHg ±1551 ±3878 ozin² ±480.0 ±1200 ftH2O ±69.2 0.01 ±173.0 0.01 cmH2O ±2109 ±5272 kgcm² ±2.109 0.001 ±5.250 0.001...
  • Page 8: Meter Description

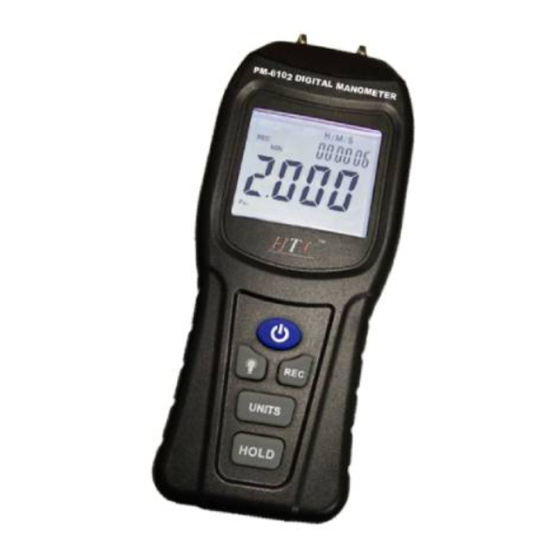

    5. Meter Description ① Air intake ② LCD Display ③ Power key ④ Backlight key ⑤ Unit key ⑥ Hold button ⑦ record key 6. LCD display ① Data record ② Record mode ③ Max Min, Avg ④ Readings ⑤ Unit ⑥...
  • Page 9: Operation Steps

    7. Operation steps 7.1 Open battery cover and install a 9-volt battery in the battery compartment. Press power key to start measuring 7.2 press UNITS key,choosing proper unit 7.3 connect Tube 7.4 read the testing values on LCD display Note: when the meter is on, no gas pressure input, the meter will not necessarily be zero, you need to reset by yourself.
  • Page 10 “ ”for three seconds,the meter exits record model. key;after power on the meter,press“ ”,it can convert the units of measurement:bar,mmHg,Ozin2,Kgcm2,psi,inH2O,Kpa,ft H2O,inHg,cmH2O,mbar. key; 8.5.1 After the meter power on,press“ ”button once,the screen will be locked, press“ ”again,it will cancel this function. 8.5.2 After power on the meter,...
  • Page 11: Notes

    9. Notes 1. Do not use it in high temperature and humidity。 2. Remove the battery when the meter is to be stored for long periods of time to avoid battery leakage. 3. Replace new batteries when the low battery icon " "...

This manual is also suitable for:

Pm-6105Pm-6115Pm-6130Pm-6175
