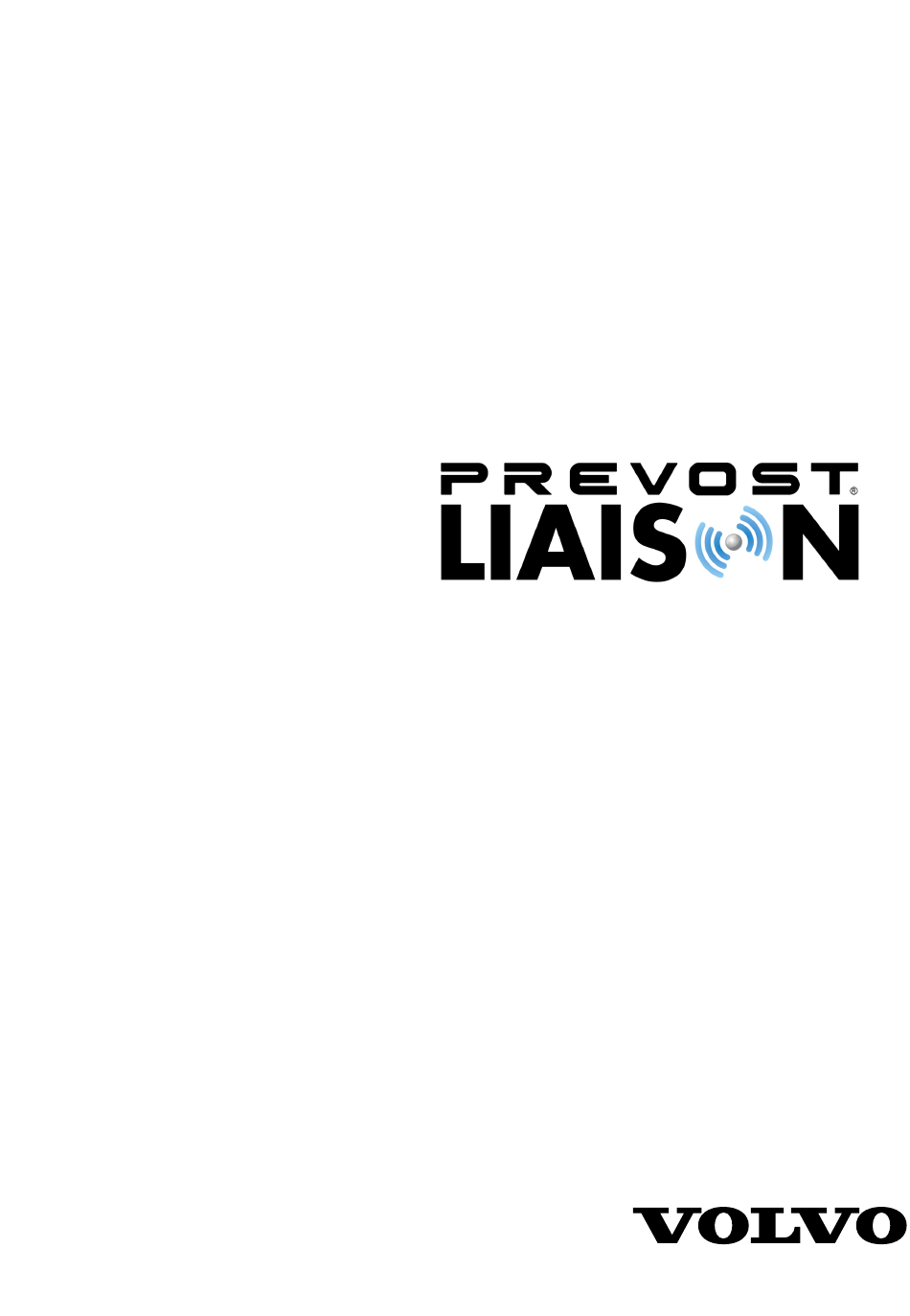

  • Page 1 Driver's Handbook Prevost Liaison 2.0 Communication System H3, X3...
  • Page 2 Volvo Bus Corporation Göteborg, Sweden Order number: 89038570 ©2011 Volvo Bus Corporation, Göteborg, Sweden All rights reserved. No part of this publication may be reproduced, stored in retrieval system, or transmitted in any forms by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior...

  • Page 3: Table Of Contents

    Contents General Information........................ 1 System Information........................ 1 Switch Control Buttons...................... 2 Using the Display....................... 3 Read Message ........................4 Send Message........................6 Other Info...........................11 Compass Gauge .........................13 Location ..........................13 Directional Arrow ......................13...
  • Page 5 Safety Information IMPORTANT: Before driving this vehicle, DANGER be certain that you have read and that you fully understand each and every step Danger indicates an unsafe practice that of the driving and handling information could result in serious personal injury or in this manual.

  • Page 7: General Information 1

    General Information 1 System Information The Telematics System is a cell phone GSM communication and GPS communication from GPS satellites to the vehicle. It includes a GPS communication ECU, a combined GPS/GSM antenna and wiring harnesses. This system allows communication between web-based software on the Customer Portal and the vehicle.

  • Page 8: Switch Control Buttons

    General Information Switch Control Buttons The controls for the Driver Information Display (DID) in the instrument cluster are two buttons on the left hand side of the steering wheel.. Upper one • ENTER Selects message. • ESCAPETakes you back to previous menu .

  • Page 9: Using The Display

    General Information 3 Using the Display 1 The Telematics System is seen as Prevost Liaison in system menu is in the DID. Press ESCAPE to display the main menus in the DID. 2 Use the up and down button on the left hand side of steering wheel switch to scroll to the Prevost Liaison menu.

  • Page 10: Read Message

    General Information Read Message Incoming Message Notification The fleet operator can send messages to the driver. When a message is received by the Telematics ECU, the driver is notified by the INFO lamp in the instrument cluster : W3005150 and a message in the DID. One of the W3071909 following two messages will appear: W3071910...
  • Page 11 General Information 5 Viewing Messages To view all stored messages, select Prevost Liaison, then Read message in the DID. Note: Messages can be sent (or read) only when the vehicle is stopped. W3072069 *2 indicates there are two unread messages in the queue.

  • Page 12: Send Message

    General Information Send Message Sending Messages from the Vehicle The driver can send messages to the fleet operator. Messages can be sent (or read) only when the vehicle is stopped . The driver can send three types of messages: Driver & Equipment, Dispatch Messages, and Free text.
  • Page 13 The Driver & Equipment and Dispatch Messages menus contain standard messages. Driver & Equipment Note: Message “Breackdown: Stranded”, H3 and X3 Models open a case with PASS. PASS will take action • Driver1:Start/Resume to contact the people they have in reference •...
  • Page 14 General Information Dispatch Messages H3 and X3 Models • Trip/Leg: Started • Trip/Leg: Completed • Status: Loaded • Status: Empty • Not Fueled/ Cleanedl • Picked up Group • Dropped Group • Stop-Off • On Time Arrival • Late: More Than 1 h •...
  • Page 15 General Information 9 Free Text Free text messages are sent as follows: Use the switch button to scroll the cursor (see 1 in illustration) through the available characters. Press the UP arrow to move to the left and the DOWN arrow to move to the right.
  • Page 16 General Information After Message is Sent After a message is sent, one of the following confirmations will appear on screen: If Message Placed In Outbox is displayed, the message was received by the Telematics ECU and will be sent during the next GPS transmission.

  • Page 17: Other Info

    General Information 11 Other Info The Other Info menu displays general operational information about the Telematics System. Information includes: • Comm Link Info • Mailbox Info • GPS Info • INI Info • Configuration Info Use the switch buttons to scroll through each screen.
  • Page 18 General Information The Mailbox Info screen indicates the total number of messages sent and received. Also indicated is the number of messages currently in the outbox waiting to be transmitted and whether or not the outbox is full. 0in Outbox means all messages where processed and sent.

  • Page 19: Compass Gauge

    General Information 13 The Configuration Info screen indicates the status of active schedules and driver messaging. When schedules are enabled, the number of active schedules is also displayed. W3072085 Compass Gauge Select Gauges in the DID main menu and scroll UP or DOWN to display the compass gauge.
