Summary of Contents for Wisi a2b Chameleon GN 01

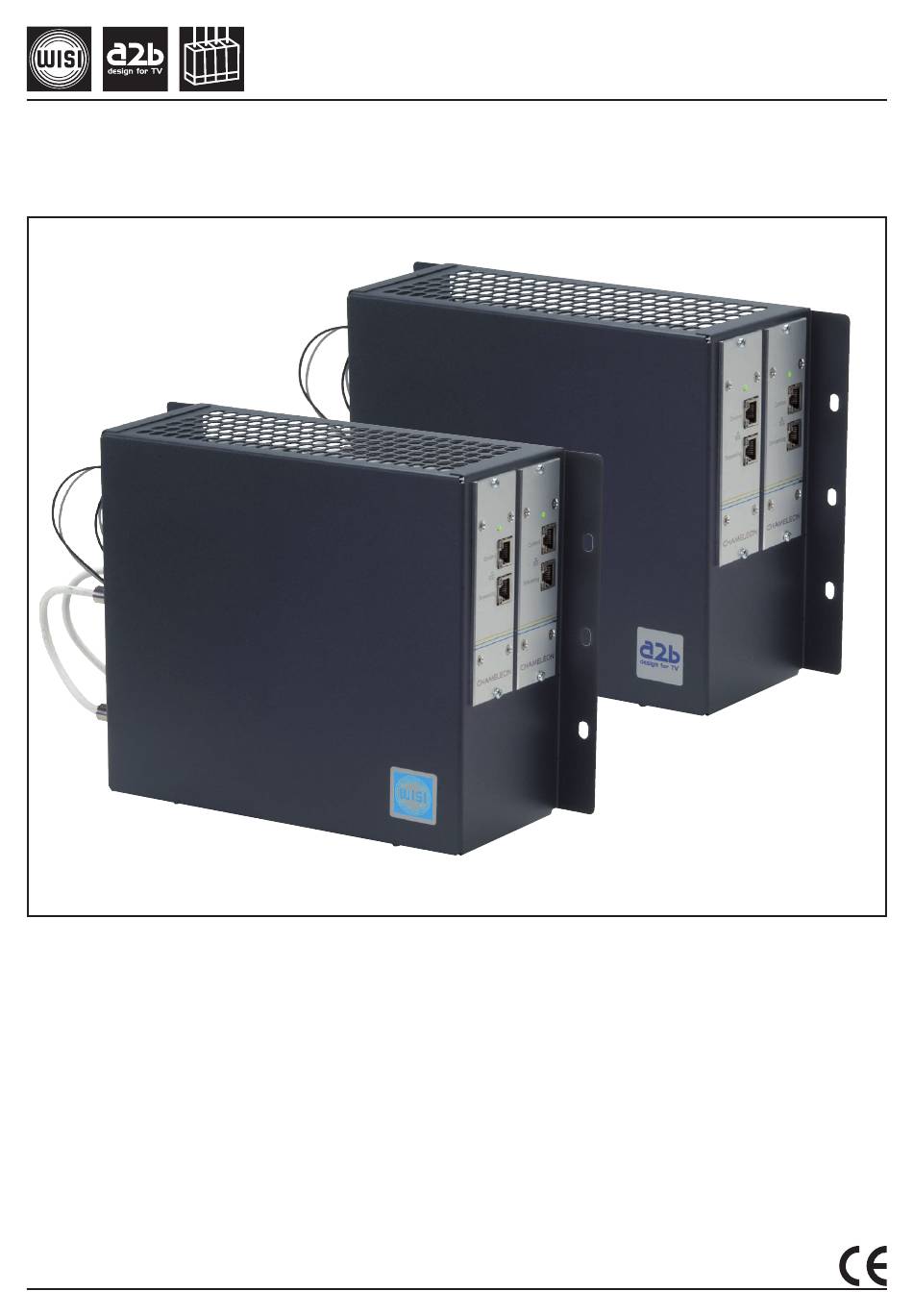

- Page 1 Quick guide GN 01 WISI Chameleon Wall mount for two Chameleon modules 412 581 a...
- Page 2 Safety and installation notes – please observe Caution The mains voltage must match the rated input voltage of the unit (230 VAC). Connecting cable — Lay the cable so that no-one can trip over it. — Lay the cable with a downward loop so that any water condensing on it can drip on the floor instead of running into the unit.
- Page 3 Scope of delivery: 1 pcs. GN01 (a) 4 pcs. fixing screws for the front panel 2 pcs grounding nuts for Chameleon modules +wash nuts 1 pcs. Grounding cable for the GN01-grounding Mounting of the GN 01 to a wall/surface: Mount the housing on the surface as shown in the drawing below. Make sure to mount the GN 01 with fans downwards to enable correct cooling.
- Page 4 Assembling the Chameleon modules in the GN 01 Change the screws of the Chameleon module with the delivered screws (a) Put the Chameleon modules in the GN 01, and fix it with the front panel screws. Fix the back of the Chameleons with the delivered grounding nuts (b, next side).
- Page 5 Connecting the cables Insert the Chameleon modules in the GN 01 and fix the screws Connect the ground/earth to the GN 01 with delivered screw. Connect the DC-power. Connect the inputs and outputs to each chameleon module on the backside. Connect the AC Power cable to the receptacle.
- Page 6 Support and further information Support For further information and help, please contact our support organisations: E-mail: support@chameleonconnect.tv Telephone: +46 141 - 22 91 15 +49 7233 - 66 621 - 6 -...
- Page 7 - 7 -...
- Page 8 Technical Modifications reserved. WISI cannot be held liable for any printing error. WISI Communications GmbH & Co. KG A2B Electronics AB Empfangs- und Verteiltechnik P.O. Box 14 Wilhelm-Sihn-Strasse 5-7 591 21 Motala, Sweden 75223 Niefern-Oeschelbronn, Germany Phone: +46 141 22 91 00 Fax: - 01 Phone: +49 7233 - 66-280, Fax: 66-350, E-Mail: market@a2b.se, http://www.a2b.se...
