2016-06-13, JoMe

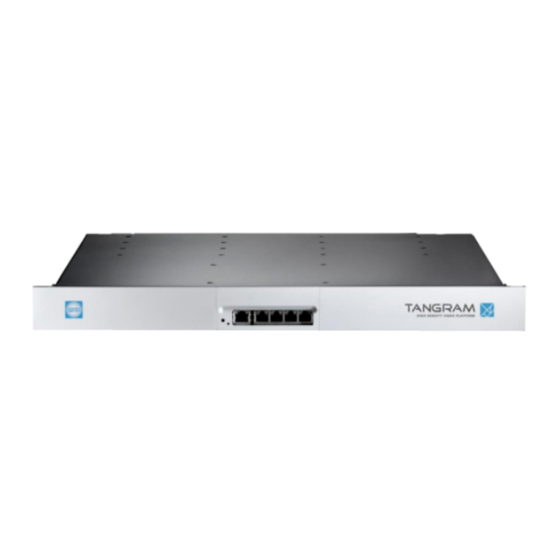

GT01W0230, GT01W0048 TANGRAM Basic Unit
Basic unit for the modules
Edge Modules
Reception Modules
Transcoder Modules
Scrambler and Descrambler Module
NOTE:
This Quick Guide is used primarily for commissioning the unit at start-up by providing the parameters
necessary to start operation. Details for mechanical information, safety information, configuration
and handling of these products are provided in the manual and configuration guide.
©WISI Communications GmbH & Co. KG
Quick Guide for GT01W Basic unit
GT21
Edge PAL
GT22
Edge FM
GT23
Edge QAM
GT24
Edge COFDM
GT26
Edge ISDB-T
GT31
DVB-S/S2/C/T/T2/ISDB-T – IP Gateway
GT32
ASI - IP
GT33
ATSC – IP Gateway
GT37
Linear Transcoder
GT41
IP Processing Module
GT42
CI Descrambler
www.wisi.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wisi TANGRAM GT01W0230
Summary of Contents for Wisi TANGRAM GT01W0230
- Page 1 This Quick Guide is used primarily for commissioning the unit at start-up by providing the parameters necessary to start operation. Details for mechanical information, safety information, configuration and handling of these products are provided in the manual and configuration guide. www.wisi.de ©WISI Communications GmbH & Co. KG...
-
Page 2: Table Of Contents
Important information and maintenance .................... 7 Operating System notes ....................... 7 Changing the Fan-unit (a) ......................7 Changing the power supply – GT55W (b) ..................8 Article Numbers – Spare Parts ...................... 8 Service and Support ..........................8 www.wisi.de ©WISI Communications GmbH & Co. KG... -
Page 3: Safety And Agency Approvals
(ESD) during unpacking, installation, removal, storage, or shipment if incorrectly handled. Please note that discharge might go unnoticed by a user. Always take normal static precautions when handling the equipment! www.wisi.de ©WISI Communications GmbH & Co. KG... -
Page 4: Assembling Chassis And Modules
Remove the cover plate from TANGRAM (a). Insert redundant power unit (b). Connect the redundant Power-Supply unit with an AC or DC power cable (c). (Please note for DC PSUs, you need a cable montage set GT98) www.wisi.de ©WISI Communications GmbH & Co. KG... -
Page 5: Fitting And Connecting The Cables
For the installation it must be taken into account that the front brackets are not designed to hold the chassis without additional support. Therefore, to ensure structural rigidity while maintaining the free path for the passage of air it is recommended to use a back support. www.wisi.de ©WISI Communications GmbH & Co. KG... -
Page 6: Backside
4.2 Changing IP address It is recommended to change to a unique IP address in your network. You can change the IP address under WISI Control GT11 Settings Networking Edit Settings www.wisi.de ©WISI Communications GmbH & Co. KG... -
Page 7: Important Information And Maintenance
Changing the fan unit is possible while device is running Remove the front cover plate Pull on the handholds and pull out the fan unit Insert the new fan unit www.wisi.de ©WISI Communications GmbH & Co. KG... -
Page 8: Changing The Power Supply – Gt55W (B)
+49 7233 66-621 Telephone: +46 13 21 09 15 Visit www.wisiconnect.tv for more information about configuration, Software, Entitlements and Product information. WISI Communications GmbH & Co. KG Empfangs- und Verteiltechnik Wilhelm-Sihn-Strasse 5-7 Inland: Phone +49 7233-66-0 Fax -320 75223 Niefern-Öschelbronn...
