Installation manual for:
Alfa GT 2006 -->
Use this hole
Use this hole
2-DIN

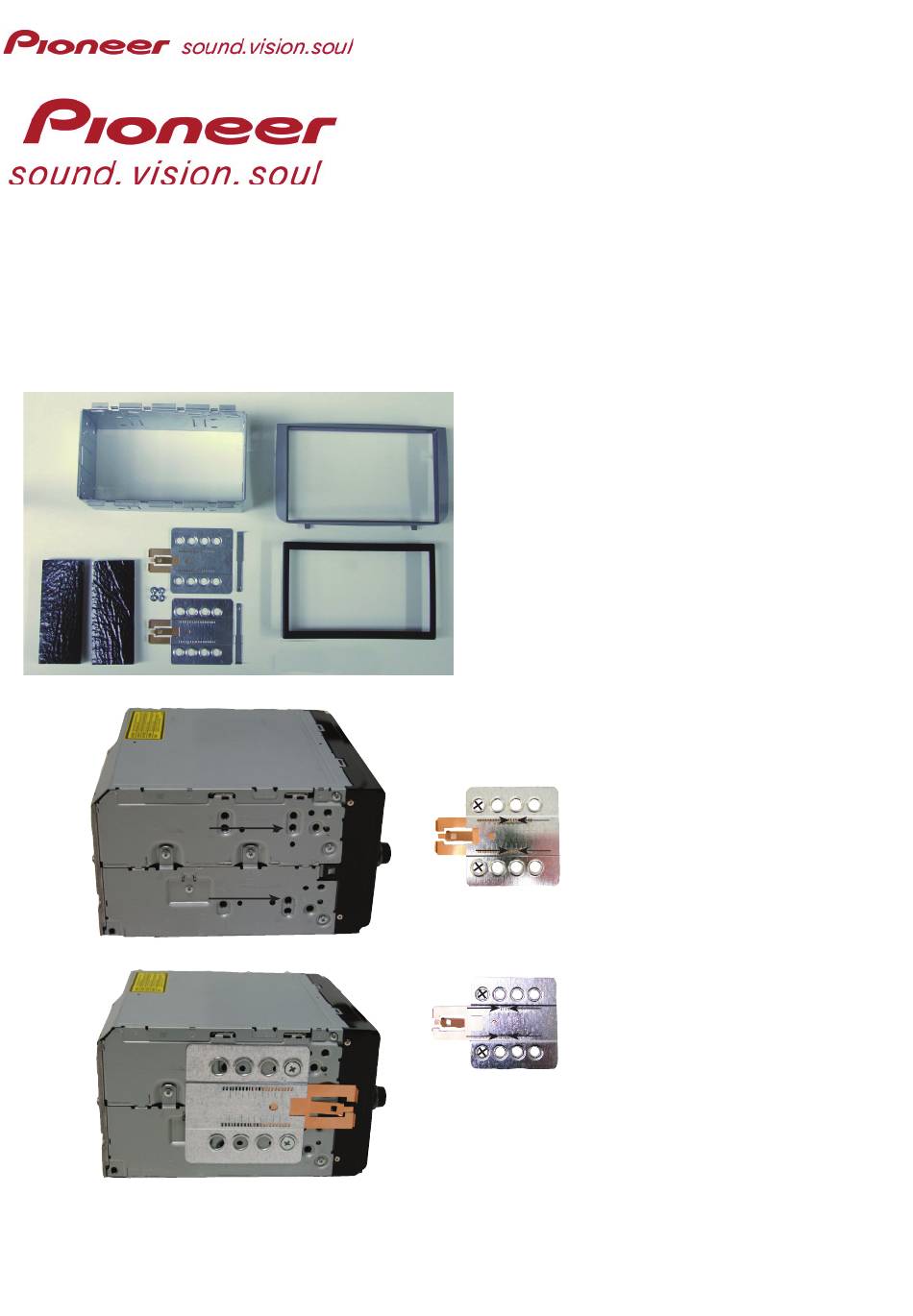

Installation kit includes the following items:

* 1X 2-ISO 110 mm. metal bracket
* 1X Replacement panel
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion

* Mount the plates.

12.301001-12
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 9 & 11 marked with an arrow
Measured from left to right.
