MAGIS HERCULES PRO
43.1

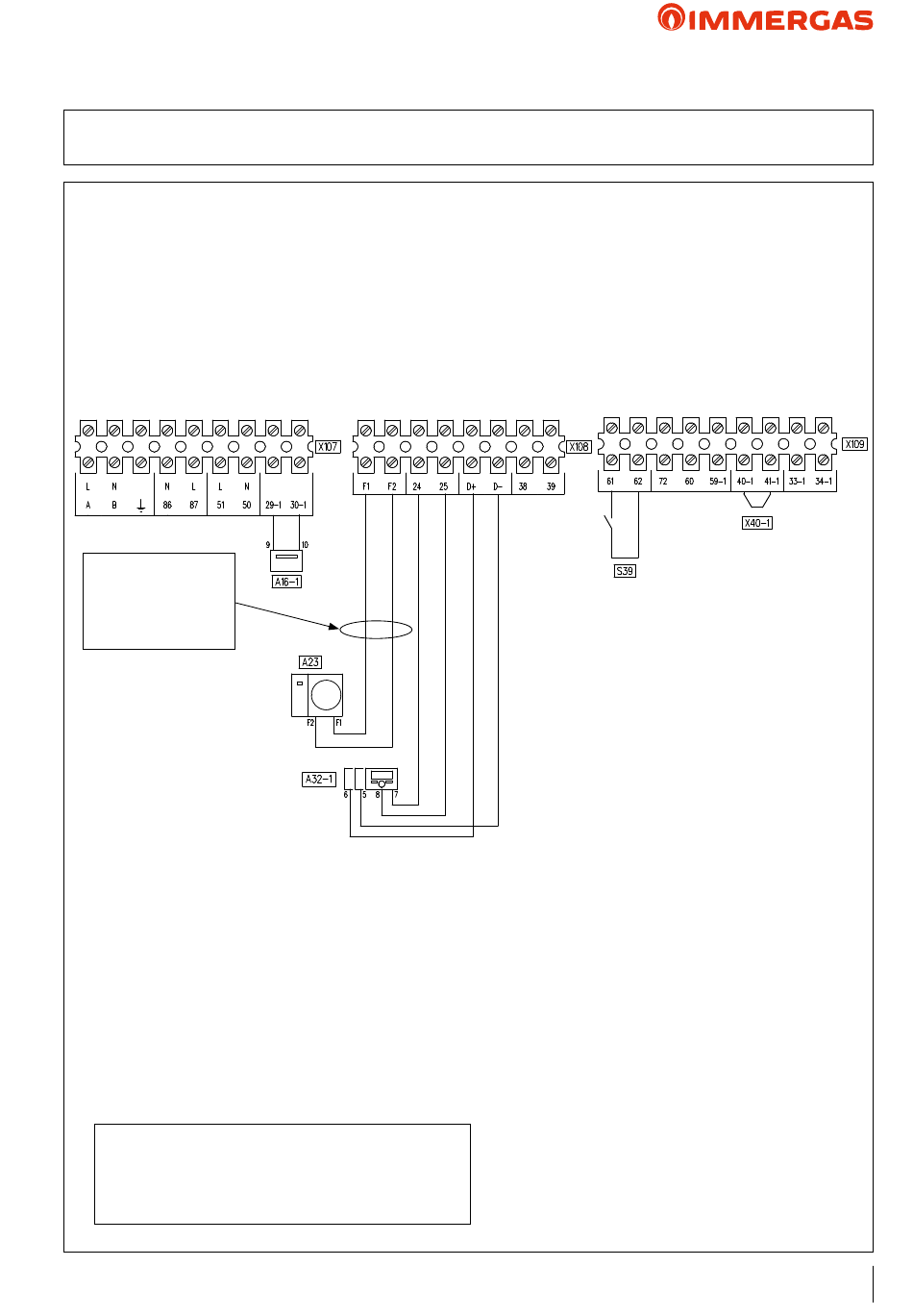

WIRING DIAGRAM: MAGIS HERCULES PRO WITH 1 DIRECT ZONE
(HOT / COLD WITH DEHUMIDIFICATION) + PHOTOVOLTAIC
BUS communication
connection Indoor unit
with Outdoor unit.
AWG 20/22 type shielded
cable
KEY:
A23
-
Outdoor unit
A32-1
- Zone 1 remote panel
A16-1
- Dehumidifier zone 1
F1/F2
- AUDAX PRO V2 communication bus
S39
- Photovoltaic inlet
NOTE: please note that, in a setting without room ther-
mostats, in order to meet the requirements coming from
Zone remote panel, it is necessary to keep the jumper
[X40-1].
DISPLAY CONTROL PANEL TERMINAL BLOCK
It is possible to provide (up to two) electrical central heating
integration resistances.
For the electrical connection, see page 17 or the relative
instruction sheet.
It is possible to provide two additional integration resist-
ances inside the DHW (Domestic hot water) storage tank
in addition to the standard one.
For the electrical connection, see page 19 or the relative
instruction sheet.
