Vista Viper User Manual

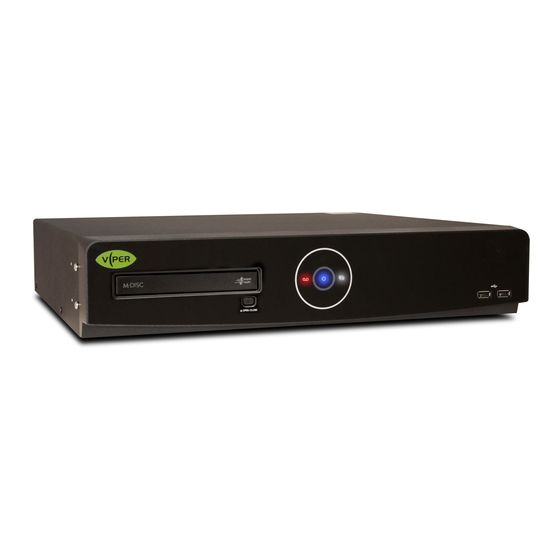

H264 4, 8 and 16 channel nvr 1u
Hide thumbs Also See for Viper:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
H264 4, 8 and 16 channel
NVR 1U
User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viper and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vista Viper

Summary of Contents for Vista Viper

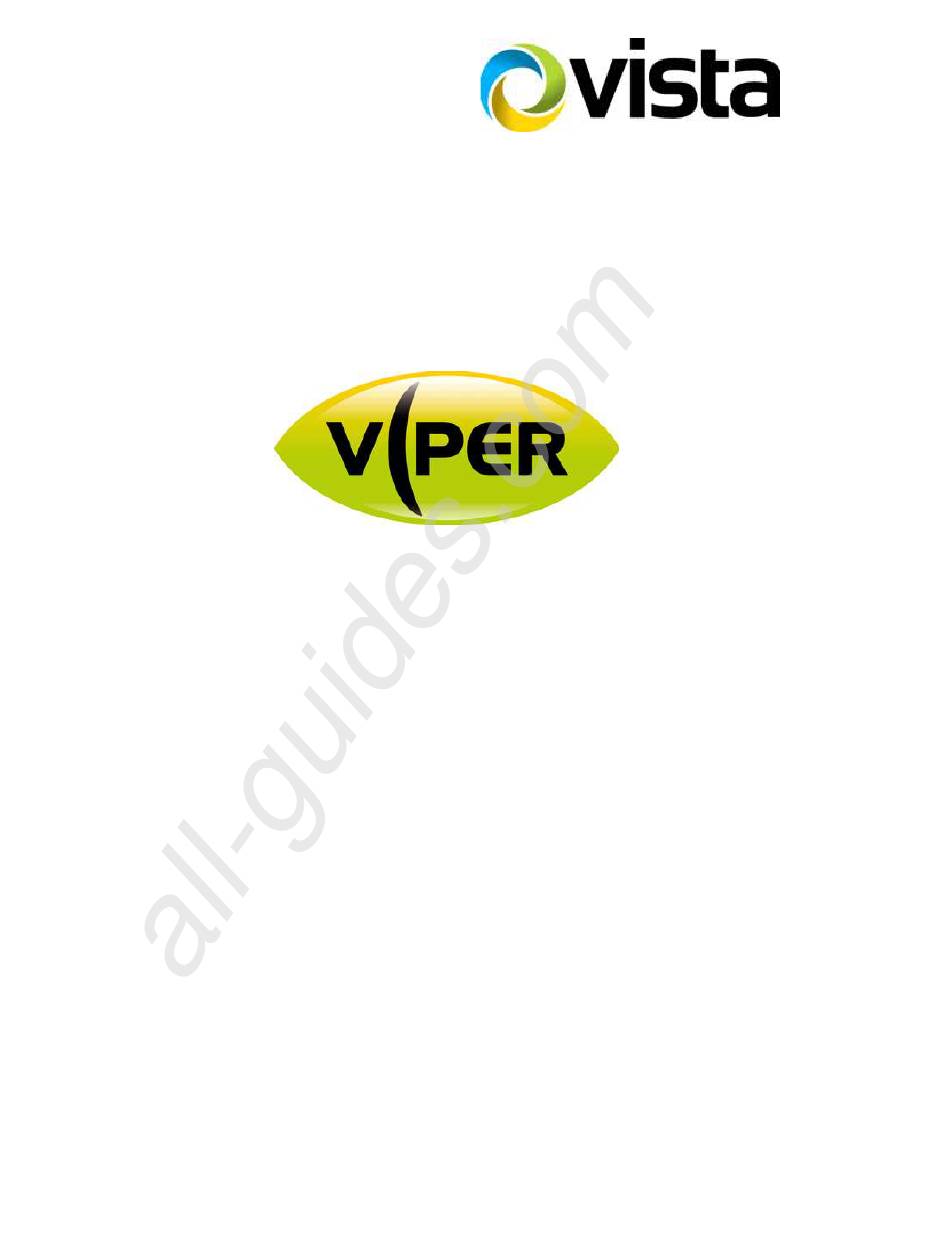

  • Page 1 All manuals and user guides at all-guides.com H264 4, 8 and 16 channel NVR 1U User manual...
  • Page 2 All manuals and user guides at all-guides.com Please read this manual thoroughly before use and keep it handy for future reference.

  • Page 3: Warnings And Cautions

    All manuals and user guides at all-guides.com Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 4 All manuals and user guides at all-guides.com IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8.
  • Page 5 All manuals and user guides at all-guides.com...

  • Page 6: Table Of Contents

    Quick menu ..........................17 3.3.1 PTZ Control ........................ 18 3.3.2 Camera Registration ....................20 3.3.3 Status > System log ....................21 3.3.4 Status > Event......................22 3.3.5 Status > Record ......................23 3.3.7 Status > Disk......................24 Setup menu VIPER-H4 user manual V1.0...
  • Page 7 Video Loss > Setup ..................... 67 4.6.5 Notification ......................... 68 NETWORK ..........................70 4.7.1 Basic .......................... 70 4.7.2 DVRNS/DDNS ......................72 4.7.3 E-Mail ........................74 4.7.4 Warp ......................... 75 Search/Play Search ............................ 76 Playback..........................82 Webviewer Products Specifications VIPER-H4 user manual V1.0...
  • Page 8 All manuals and user guides at all-guides.com VIPER-H4 user manual V1.0...

  • Page 9: Table Of Contents

    Illuminated if playback is in progress Illuminated if connected via network IR Remote Control Receives all incoming signals from the remote control. Sensor USB port For connection of Mouse and USBdrives for download and firmware upgrading 4ch NVR VIPER-H4 user manual V1.0...
  • Page 10 Audio output port VGA output port e-SATA e-SATA storage connection connector HD Output HD output port USB port is connected for data back-up Alarm In/Out Alarm connector Power Switch On/Off the Power Power Input Connect power supply VIPER-H4 user manual V1.0...
  • Page 11 All manuals and user guides at all-guides.com VIPER-H4 user manual V1.0...

  • Page 12: Installation

    All manuals and user guides at all-guides.com Installation Connect external devices as per the diagram below. Figure 2-1 Connection map VIPER-H4 user manual V1.0...

  • Page 13: Installing Hdd

    2 When fully booted a buzzer will sound and the live screen will be displayed 3 In Log in screen, enter the ID, Password and press OK. Note Default ID & Password is admin/admin Please change password after login due to security. Attention VIPER-H4 user manual V1.0...

  • Page 14: Quick Set Up

    3.Press the Save button to save newly set ID and Password. 4. Press Next button to move to the next set up stage  Default ID/Password is admin/admin. Note  Change the password for security.  Maximum 16 characters VIPER-H4 user manual V1.0...

  • Page 15: System

    Selecting the device ID. ensure that the each devise has a unique ID  HD Output / VGA: Set resolution of the monitor connected to the device.  2 Press Save button. Press Next to move to the next set up stage VIPER-H4 user manual V1.0...

  • Page 16: Network

    IP Address, Subnet Mask, Gateway, DNS, and Port: As for dynamic IP, enter information in each  space. 2 Press Save button to save set value. 3 Press Next to move to the next set up stage VIPER-H4 user manual V1.0...

  • Page 17: Time/Date

    Time Zone: Select time zone for the system being installed.  DST Start/End: For applying Daylight saving time, set the application period.  2 Press Save button to save set value. 3 Press Next to move to the next set up phase VIPER-H4 user manual V1.0...

  • Page 18: Live Screen Configuration

    Launcher menu is located on the bottom edge of screen. See section “3.2 Live menu Launcher ” for more detailed information. Quick menu Clicking the right mouse button to display the Quick menu. See section “0 3.1.1 Backup (Down loading of video footage) VIPER-H4 user manual V1.0...
  • Page 19 Formatting the USB device ( Will remove any information from device) Calculate Start the back-up process Format Close the backup screen Start Select the channels to be downloaded Cancel Select or clear all channels. Quick ” for more detailed information. VIPER-H4 user manual V1.0...

  • Page 20: Icons In Live Screen

    PTZ control function in process Recording in alarm event mode Recording in motion event mode Recording in panic recording mode Recording in consecutive recording mode Video loss icon Mic ON/OFF Speaker ON/OFF Displaying present date and time VIPER-H4 user manual V1.0...

  • Page 21: Live Launcher Menu

    Make a backup video of users want. See “0 ” to display detailed information about back-up. Searching recording data (time, event, and thumbnail). See “5.1 Search” to display detailed information about search. Go to Playback mode Panic record mode Locking or releasing launcher menu (toggle ON /OFF) VIPER-H4 user manual V1.0...

  • Page 22: Backup (Down Loading Of Video Footage)

    Formatting the USB device ( Will remove any information from the USB device) Calculate Start the back-up process Format Close the backup screen Start Select the channels to be downloaded Cancel Select or clear all channels. VIPER-H4 user manual V1.0...

  • Page 23: Quick Menu

    Opens a pop-up displays IP camera registration. Registration Status Opens a pop-up menu showing: device system log, event, and recording status (system log, event, and record). Log in/Log out Log in/Log out. Shutdown Shuts down or restarts the device (shutdown, restart). VIPER-H4 user manual V1.0...

  • Page 24: Ptz Control

    Place cursor on this spot , click and drag to make PTZ camera move Adjusting screen focus automatically Zoom Out Zoom function of PTZ camera Zoom In IRIS OFF Iris adjustment IRIS On Focus Far Manual focus adjustment Focus Near VIPER-H4 user manual V1.0...
  • Page 25 Description Preset Go Go to a preset position Preset Save Save a preset position Tour Run Tour function. Scan Run Scan function. Pattern Run Pattern function. Exit Exit to live screen menu in PTZ Control menu VIPER-H4 user manual V1.0...

  • Page 26: Camera Registration

    Auto Assign Automatically assign channel numbers Port Show the detected camera port (WAN or PoE). Assign Selecting the channel windows manually. Model Show detected camera model number. Show detected camera IP address. Status Show connection status. VIPER-H4 user manual V1.0...

  • Page 27: Status > System Log

    Selecting or clearing all log types (toggle). /Unselect All Pressing search button search on the basis of set condition System log list Displays system log lists USB Export Export the log data to USB thumb drive. Cancel Exit VIPER-H4 user manual V1.0...

  • Page 28: Status > Event

    Table 3-10 Status > Event Item and Description in Quick menu Item Description Temporary fixing or releasing an event list (toggle). Refresh Deleting the event list Event list Displaying the event list Cancel Exit the status screen VIPER-H4 user manual V1.0...

  • Page 29: Status > Record

    Figure 3-11 Status > Record in Quick menu Table 3-11 Status > Record Item and Description in Quick menu Item Description Record time Displays the first and last recorded time Record list Displays the record setting status Cancel Exit VIPER-H4 user manual V1.0...

  • Page 30: Status > Disk

    Figure 3-12 Status > Disk in Quick menu Table 3-12 Status > Disk Item and Description in Quick menu Item Description Disk Info Display disk temperature and S.M.A.R.T information. Rec. Info Display recording period. Cancel Exit the status screen VIPER-H4 user manual V1.0...

  • Page 31: Setup Menu

    Description SYSTEM Set the system settings CAMERA Set the camera settings DEVICE Set the non camera devices connected to the DVR RECORD Set the recording parameters EVENT Set each event parameters NETWORK Set the network parameters VIPER-H4 user manual V1.0...
  • Page 32 Setup DEVICE Disk iSCSI Serial Device Serial Device TEXT TEXT Schedule Schedule Main Stream RECORD Stream Second Stream Panic System System/Disk Disk Setup Alarm In Schedule Setup EVENT Motion Schedule Video Loss Setup Periodic Notification Schedule VIPER-H4 user manual V1.0...
  • Page 33 All manuals and user guides at all-guides.com Level 1 Level 2 Level 3 Basic WAN Port DVRNS/Dashboard NETWORK DVRNS/DDNS DDNS E-Mail E-Mail VIPER-H4 user manual V1.0...

  • Page 34: General Buttons In Setup Menu

    Item Description Default Reverse changed setting value back to factory default. Save Save the set content. Cancel Cancel the set value. Restore Cancel the set value, and reverse it to default. Apply Apply the content set. VIPER-H4 user manual V1.0...

  • Page 35: System

    Keyboard ID Select keyboard ID (1~255). Remote Control ID Select wireless remote control ID (1~99). Select Quick setup wizard ( Note: Change DVR to Hybrid mode within System start Quick set up) Run Quick set up wizard. VIPER-H4 user manual V1.0...
  • Page 36 Table 4-5 SYSTEM > System > F/W Upgrade Item and Description Name Function Current Version Displaying the present tool version. Connect USB memory stick, that has new firmware files saved within it’s Device root menu, to the USB port, select files to upgrade. Then click “Upgrade” VIPER-H4 user manual V1.0...

  • Page 37: Time/Date

    For using a specific network time server, click the Use checkbox and enter Sync the server address.  Sync. Interval: Select synchronization period (1~7-hour)  Last Sync. Time: Displaying the final synchronized time NTP Server Select whether to make the DVR an NTP server. VIPER-H4 user manual V1.0...
  • Page 38 Figure 4-6 SYSTEM > Time/Date > Holiday Table 4-7 SYSTEM > Time/Date > Holiday Item and Description Name Function Year Select years to set holidays. Delete selected holidays. Add Holiday Add holidays. List Display holiday dates added to the system VIPER-H4 user manual V1.0...
  • Page 39 Enter the holiday name. Date Display chosen date. Type Select the holiday types. e.g.,) Selecting Relative and 1, first, and Sun, which designates annual January of the 1 Sunday as a holiday. Calendar Select the holiday to add. VIPER-H4 user manual V1.0...

  • Page 40: Account > User

    Select automatic logout time (Null, 1 min, 2 min, 3 min, 4 min, 5 min, 6 min, 7 min, 8 min, 9 min, 10 min, and 30 min). Auto Login Adds extra User groups ( each can have it’s own user levels) Auto Logout Add users to a selected group. VIPER-H4 user manual V1.0...
  • Page 41 Table 4-11 SYSTEM > Account > User > Add User Item and Description Name Function Name Enter the user name. Enter the user ID. Password Enter the password. Confirm Password Confirm the password. Group Select to the group to which the user is to be added. VIPER-H4 user manual V1.0...

  • Page 42: Configuration (Config)

    Save the set information in the USB.  Export Config with network setup: Save the information including network setting one from the setting information to be exported. Export button: Save the set information in the USB. VIPER-H4 user manual V1.0...
  • Page 43 Table 4-13 SYSTEM > Config > Factory Default Item and Description Name Function Select All Select/deselect all items to be defaulted /Unselect All Default Item Select/deselect individual items to be defaulted. Default button Default the system to the factory settings. VIPER-H4 user manual V1.0...

  • Page 44: Camera

    Table 4-14 CAMERA > Basic > Basic Item and Description Name Function Shows the channel number Title Edit the camera name. Convert Select the cameras to be set in covert mode Copy Covert Copy covert settings to other channels. Setup VIPER-H4 user manual V1.0...
  • Page 45 Table 4-15 CAMERA > Basic > Basic > Copy Covert Setup Item and Description Name Function From Select a channel to copy settings from Select a channels to be copied too. Select All Select/deselect all channels. /Unselect All VIPER-H4 user manual V1.0...
  • Page 46 Figure 4-15 CAMERA >Basic > Audio In/Out Table 4-16 CAMERA > Basic > Audio In/Out Item and Description Name Function Display channels of audio Select/deselect whether to use audio. Assign Select channels to be assigned audio. Record Select/deselect whether to save audio. VIPER-H4 user manual V1.0...

  • Page 47: Advanced (Video, Stream And Vca)

    Video Setup camera image such as Colour, White Balance, WDR, AE and etc. Stream Setup camera stream such as Resolution, Framerate, Bitrate and etc. Video Analytics Setup Video Analytics function if the camera supports this function. VIPER-H4 user manual V1.0...

  • Page 48: Device

    Table 4-18 DEVICE > Display > Display Item and Description Name Function HD Output/VGA Select the resolution of the display device (1024x768. 1280x720, 1920x1080, and automatic). Event Popup Set duration of event popup. Monitor Relay Send alarm out when screen layout changed. Switch VIPER-H4 user manual V1.0...
  • Page 49 Select what is displayed in the camera titles (Off, CH+Title, CH). Live Bar Select the way to display the live bar (Always On, Auto Hide). Display Icon Select/deselect the icons to be displayed on each camera split screen segment. VIPER-H4 user manual V1.0...
  • Page 50 Set the remaining time for automatic conversion (3 sec~30 sec) Dwell Time Reverse to changed set value in default. Default Revise the list. Delete the list. Click the “use” box to allow sequence of quad 4 way displays VIPER-H4 user manual V1.0...
  • Page 51 Table 4-21 DEVICE > Display > Sequence > Add Sequence Item and Description Name Function Dwell Time Select time to play (3 sec, 5 sec, 10 sec, 15 sec, and 30 sec). Division Select the partition screen to play (Full, Quad). Channel Selection Select channels to play. VIPER-H4 user manual V1.0...

  • Page 52: Disk > Setup

    Display the disk list select/deselect disc to be formatted Format Format the disk selected. Overwrite When the disks are full it will automatically overwrite the oldest Recording information. Auto Delete Select/deselect to use the function to delete saved data automatically (1- 365 days). VIPER-H4 user manual V1.0...
  • Page 53 Table 4-23 DEVICE > Disk > iSCSI Item and Description Name Function Register Opens iSCSI registration window. Delete Delete registered iSCSI storage. Detail Display selected iSCSI IP address and port number. Clicking Register displays iSCSI register screen. VIPER-H4 user manual V1.0...
  • Page 54 All manuals and user guides at all-guides.com Name Function Target Address Input IP address and ports for iSCSI Target Port HTTP Port Discover Click to search iSCSI storage. Click to register the discovered iSCSI storage. VIPER-H4 user manual V1.0...

  • Page 55: Ptz > Ptz

    Select protocol of camera connected to relevant channels. Speed Select pan-tilt of camera connected to relevant channels (1-5).  For more information about camera ID, protocol information, and details, see Note Instruction of relevant PTZ Function camera. VIPER-H4 user manual V1.0...

  • Page 56: Serial Device > Serial Device (Ptz, Keyboard, Or Text Device)

    Set communication transmission value of USB device. RS-485 Set communication transmission value of RS-485 connector. Set the communication transmission value based on the device to be connected and select the medium (PTZ, keyboard, or Text device). VIPER-H4 user manual V1.0...

  • Page 57: Text > Text

    Select ID and port no. to correspond with the text input device. Input Char. Set Select a character format of the text input device. Copy to TEXT As for connecting multiple units, duplicate set value to others. Setup VIPER-H4 user manual V1.0...
  • Page 58 Table 4-27 ICE > TEXT > TEXT > Copy to TEXT Setup Item and Description Name Function From Select channels set. Select the device to be copied. Select All Select/deselect all channels. /Unselect All Copy Item Select/deselect items to be copied. VIPER-H4 user manual V1.0...

  • Page 59: Record

    Select channels to set schedules. Schedule Type Select the types of schedules. Selection Schedule Table Display the schedule users set. Drag Field Display the area dragged with a mouse. Copy Schedule Setup Copy set recording schedule to other channels. VIPER-H4 user manual V1.0...
  • Page 60 3 Position the mouse to the schedule table. 4 Drag the area to be scheduled with a mouse. 5 Selected field is presented as scheduling type colors. 6 Click Copy Schedule Setup if you want to copy the schedule to other channels. VIPER-H4 user manual V1.0...
  • Page 61 All manuals and user guides at all-guides.com 7 Copy Schedule Setup screen displays. 8 Select channels to be copied. 9 Select channels to apply copied content. 10 Copy the schedule by pressing Apply. 11 Press Save to save the schedule. VIPER-H4 user manual V1.0...

  • Page 62: Stream

    5 sec). Post-Alarm Recording after set time until event ends (null, 5 sec, 10 sec, 30 sec, 1 min, 5 min, and 10 min). Copy Stream Copy main recording image set value to other channels. Setup VIPER-H4 user manual V1.0...
  • Page 63 Table 4-31 RECORD > Stream > Main Stream > Copy Stream Setup Item and Description Name Function From Select the channel set. Select the device to be copied. Select All Select/deselect all channels. /Unselect All Copy Item Select/deselect items to be copied. VIPER-H4 user manual V1.0...
  • Page 64 Table 4-32 RECORD > Stream > Second Stream Item and Description Name Function Display channels. Resolution Show camera second stream setup status. Framerate Bitrate Pre-Alarm Start recording before set time, if event occurs. Post-Alarm Recording after set time until event ends. VIPER-H4 user manual V1.0...
  • Page 65 Select/deselect to use immediate recording function. Display channels. Resolution Panic recording stream follows the Event stream. Frame rate Quality Dwell Time Select recording duration (No limits, 10 sec, 30 sec, 1 min, 5 min, 10 min, and 30 min). VIPER-H4 user manual V1.0...

  • Page 66: Event

    Select/deselect whether to use system restart event. Notification Select/deselect whether to use mailing in case of an event. User Login Select/deselect whether to use when a user logs in Record Transaction Select/deselect whether to use record transaction event occurs. VIPER-H4 user manual V1.0...
  • Page 67 Select/deselect whether to use mailing in case of event. Disk Full Set disk capacity for disk full event (Off, 50%, 60%, 70%, 80%, 90%, and 100%). S.M.A.R.T. Fault Select/deselect whether to use S.M.A.R.T. Fault event of HDD. VIPER-H4 user manual V1.0...

  • Page 68: Alarm In

    Set email notices. Preset Set preset of PTZ camera. Copy to Alarm Copy alarm set value to other channels. For more information about set Setup value copy, see section “4.5.2 Stream > Main Stream in Stream.” VIPER-H4 user manual V1.0...
  • Page 69 Channel selection screen opens. Remote Select/deselect whether to use remote mailing or Push. Notification Preset Preset of PTZ camera is running.  Use: Select/deselect whether to use preset.  CH: Select channels.  Preset: Set preset value. VIPER-H4 user manual V1.0...
  • Page 70 Copy the schedule on alarm set to other sensors. For more information about set value copy, see section “4.5.2 Stream > Main Stream in Schedule 버튼 Stream.” For more details about scheduling recording time when alarm occurs across sensors, Note see section “4.5.1 Schedule > Schedule.” VIPER-H4 user manual V1.0...

  • Page 71: Motion

    Placing your mouse on Alarm, Group Rec, Noti., Preset and clicking editing icon( ) in right corner displays Event : Alarm screen. For more information about Note Event : Motion screen, see section “4.6.2 Alarm In > Setup in Alarm In.” VIPER-H4 user manual V1.0...
  • Page 72 “4.5.2 Stream > Main Stream in Stream.” For more information how to schedule record time when the motion sensor detects Note across channels, see section “4.5.1 Schedule > Schedule.” VIPER-H4 user manual V1.0...

  • Page 73: Video Loss > Setup

    Placing your mouse on Alarm, Group Rec, Noti., Preset and clicking editing icon( ) in right corner displays Event : Video Loss screen. For more information Note about Event : Video Loss screen, see section “4.6.2 Alarm In > Setup in Alarm In.” VIPER-H4 user manual V1.0...

  • Page 74: Notification

    Event: sending the event information Interval Set the alarm interval (5 min, 10 min, 30 min, and 1 hour, 2-hour, 6-hour, 8-hour, 12-hour, and 24-hour). Select CH Select channels users want. Select All Select/deselect all channels /Unselect All VIPER-H4 user manual V1.0...
  • Page 75 Displays each day of the week in hourly segments Drag Field Set the areas to be set by clicking and dragging the mouse. For more information how to schedule record time when the alarm is detected, see Note section “4.5.1 Schedule > Schedule.” VIPER-H4 user manual V1.0...

  • Page 76: Network

    Enter TCP port. Port (Web) Enter Web port. Bandwidth Limit Select bandwidth to limit (no limits, 50Mbps, 10Mbps, 5Mbps, 2Mbps, 1Mbps, 500Kbps, 400Kbps, 300Kbps, 200Kbps, and 100Kbps). Ping Test Enter IP in Ping test and click “Test”. VIPER-H4 user manual V1.0...
  • Page 77 Table 4-45 NETWORK > Basic > PoE Ports Item and Description Name Function DHCP Server Select whether to enable DHCP server. DHCP (Dynamic) Select whether to use DHCP (Dynamic). IP Address Enter the each information properly. Subnet Mask Gateway VIPER-H4 user manual V1.0...

  • Page 78: Dvrns/Ddns

    DVRNS/DDNS > DVRNS/Dashboard This allows the user to register all their VIPER devices on a remote server under a unique account. They can then login into the server to view: Live images; Set up the devices and view the status of each device.
  • Page 79 Figure 4-45 NETWORK > DVRNS/DDNS > DDNS Table 4-47 NETWORK > DVRNS/DDNS > DDNS Item and Description Name Function DDNS Site Select DDNS site Host Name Enter the host name. User Name Enter the user name. User Password Enter the user password. VIPER-H4 user manual V1.0...

  • Page 80: E-Mail

    Select/deselect whether to attach JPG image. Authentication Select/deselect using authentication and password. Enter the email ID. Password Enter the email password. Sender Write the sender. Receiver Write the receiver. Test Verify whether the email server is set correctly. VIPER-H4 user manual V1.0...

  • Page 81: Warp

    Register the recorder to monitor and control remotely. Figure 4-47 NETWORK > Warp > Registration Table 4-49 NETWORK > Warp > Registration Name Function Use Warp Select whether to enable Warp. Delete registered recorder. Add Recorder Register the recorder to monitor and control. VIPER-H4 user manual V1.0...

  • Page 82: Search/Play

    Set the time to be viewed Bookmark Select any pre-defined bookmarks Timeline Displays the timelines across channels Preview Previewing video clips searched Play Playing video clips. For more information about Live bar, see section “ Playback.” Cancel Exit the search screen VIPER-H4 user manual V1.0...
  • Page 83 Searching the event Event List Displaying event list searched Thumbnail Field Displaying thumbnail images of selected event Playing video clips selected. For more information about Live bar, see Play section “5.2 Playback.” Cancel Exit search screen VIPER-H4 user manual V1.0...
  • Page 84 Select dates to search Select channels to search Time Select time to begin search Interval Setting time interval between images to be displayed Time This plays each displayed segment forward in time lapse mode Lapse/Pause Cancel Exit search screen VIPER-H4 user manual V1.0...
  • Page 85 Set up the area of the screen in which analysis is to be carried out Start Setting starting time to search Setting ending time to search (Note: Maximum period for search is limited to a one hour period) VIPER-H4 user manual V1.0...
  • Page 86 Click to start search Event List Displaying event list searched Thumbnail Field Displaying thumbnail images of selected event Play Play the selected video clip. For more information about Live bar, see section “5.2 Playback.” Cancel Exit search screen VIPER-H4 user manual V1.0...
  • Page 87 Table 5-7 Search: VCA Item and Description Item Description Select CH Selecting channels to be searched Start, End Set start time and end time. Event Type Selecting VCA event type. Search Search VCA event. Play Playback selected event. VIPER-H4 user manual V1.0...
  • Page 88 Selecting the partition mode to mark in the screen Searching the recorded data (time, event, and thumbnail). For more information about search, see section “5.1 Search.” Go to Live mode Opening or closing the record timelines Activating/deactivating automatic hidden function of Launcher menu VIPER-H4 user manual V1.0...

  • Page 89: Webviewer

    Viewer: playing NVR Live images  Setup: setting menu in similar ways with NVR connected monitor. In case of selecting Viewer For using Viewer, users need to download Java. The way to download is shown as follows: Click Viewer. VIPER-H4 user manual V1.0...
  • Page 90 All manuals and user guides at all-guides.com When Java download screen opens, download and install JAVA. Live images may be monitored. Selecting Setup Users can set the menu in similar ways with NVR connected monitor. Figure 6-1 Setup screen VIPER-H4 user manual V1.0...
  • Page 91 Text, Smart(motion) Text, Smart(motion) Smart(motion) STORAGE Internal HDD 1 SATA Interface 2 SATA Interfaces 2 SATA Interfaces External Storage iSCSI iSCSI iSCSI Backup Backup File Format AVI, H4V, MP4 AVI, H4V, MP4 AVI, H4V, MP4 FUNCTION VIPER-H4 user manual V1.0...
  • Page 92 14W(Include 1HDD, 20W(Include 2HDD, 20W(Include 2HDD, Without Power Consumption Without PoE) Without PoE) PoE) Dimension(WxHxD) 300x47x209mm 378x47x317mm 378x47x317mm Approx. 1Kg(Exclude Approx. 2.5Kg(Exclude Net Weight Approx. 2.9Kg(Exclude HDD) HDD) HDD) ※ Specifications are subject to change without notice. VIPER-H4 user manual V1.0...
  • Page 93 All manuals and user guides at all-guides.com VIPER-H4 user manual V1.0...

Table of Contents
