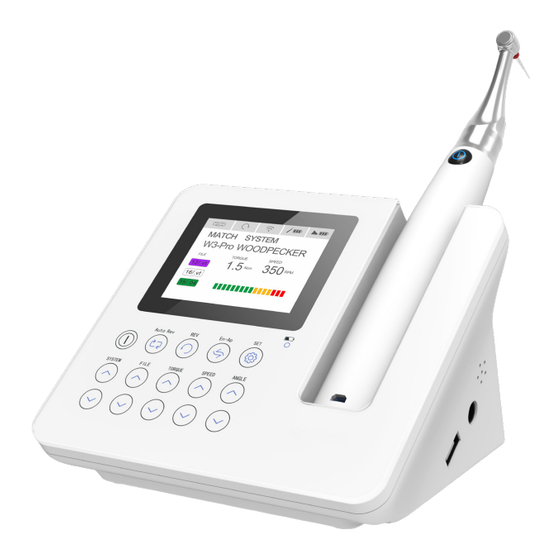

Endo Radar Plus Endo Motor
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Endo Radar Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Guilin Woodpecker Medical Instrument Endo Radar Plus

Summary of Contents for Guilin Woodpecker Medical Instrument Endo Radar Plus

  • Page 1 Endo Radar Plus Endo Motor INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents 1 Introduction ................... 1 2 Installation and setting ................6 3 Motor alone mode ................1 4 4 Apex locator alone mode ..............1 7 5 Combined length determination mode ..........2 2 6 Trouble shooting ................2 4 7 Cleaning, Disinfection and Sterilization ..........

  • Page 3: Introduction

    1.2 Introduction Endo Radar Plus is mainly used in Endodontic treatment. It is a cordless endo motor with root canal measurement capability. It can be used as a endo motor for preparation and enlargement of root canals, or device for measuring canal length.
  • Page 4 1.3 Product configuration 1.3.1 Structure Endo Radar Plus is composed of Motor h andpiece, Contra-angle, measuring wire, USB wire , Power adapter, etc... 1.3.2 Product accessories Motor h andpiece Contra-angle Power adapter Base Measuring wire File clip Lip hook Touch probe...
  • Page 5 Protective silicon cover 1.4 Indications for use Endo Radar Plus is a cordless endo motor with root canal measurement capability. It can be used as a endo motor for preparation and enlargement of root canals, or device for measuring canal length. It can be used to enlarge the canals while monitoring the position of the file tip inside the canal.
  • Page 6 oxygen, or nitrous oxide. 1.7.7 Applied part: contra-angle, lip hook, file clip, touch probe. 1.7.8 The contact duration of applied part: 1 to 10 minutes. 1.7.9 The temperature of the surface of applied part may reach 46.6℃. 1.8 Primary technical specifications 1.8.1 Battery: Base: built in a 11.1V/2600mAh Li-ion battery pack, and charge voltage is 15Vd.c.,1.6A...
  • Page 7 1.10.6 If the handpiece works for 10 minutes continnously, the temperature of the surface of the handpiece and contra-angle may reach 56℃. Contra-angle 1.10.7 Only use the original contra-angle. Do not use any other contra-angle or other reduction rate other than original one. 1.10.8 Never press the contra-angle push button when the motor handpiece is running or if it is coming to a stop.

  • Page 8: Installation And Setting

    where it is easy to disconnect from the supply mains. 2 Installation and setting 2.1 Reset function Use the needle to push the internal button for more than 3 seconds to complete the reset by the reset hole indicated by the arrow below, to solve the accidental crash of the base or accidental failure of the touch button.
  • Page 9 The contra-angle is free to rotate, adapting to the root canal of different positions, and it is convenient to watch the screen when operating. 2.2.2 Removing When removing the contra-angle, pull it straight out. When inserting and removing the contra-angle, turn the motor handpiece power off beforehand.
  • Page 10 2.5 Touch button of base(Motor alone mode) 1 POWER Power on or power off 2 AUTO REV Automatic protection mode 3 REV Forward or reverse 4 En-Ap The mode button 5 SET Long press to enter the Contra-angle Calibration and Wireless Match interface In reciprocating mode, switch to choose forward angle or reverse angle 6 LED...
  • Page 11 2.6 Touch button of base(Apex locator alone mode) 1 En-Ap The mode button 2 3 ANGLE +- Set the apical point, it can be set anywhere from 10 to apex(00) 2.7 Touch button of base(Combined length determination mode) Combined length determination mode parameter setting: 1 SET Touch the button for more than 1 seconds, enter combined length determination mode parameter setting.
  • Page 12 4 5 SPEED +- Select “AP.REV/AP.STOP/AP.OFF”, “ ”, ” 6 En-Ap Select “AP.REV” or “AP.STOP or AP.OFF”, enable or disable “ ”, enable or disable “ ” Auto apical point reverse The file will reverse when the file tip reaches the apical point. Auto apical point stop The file will stop when the file tip reaches the apical point.
  • Page 13 2.8 LCD screen...
  • Page 14 1 SYSTEM Display the selected file system 2 FILE Display the selected file type 3 SPEED Display the rotation speed(applied only to continuous rotation mode) 4 TORQUE Display the limiting value of torque 5 TORQUE BAR Display the limiting value of torque in the bar 6 AUTO REVERSE Display the selected auto reversing protection mode: AUTO REVERSING...
  • Page 15 8 Wireless communication connection status indication The motor handpiece is connected to the base wirelessly Wireless communication has been disconnected or the motor handpiece is not turned on to establish a wireless communication 9 Display the current remaining battery power of the motor handpiece Fully charged The remaining battery power is about 70% The remaining battery power is about 30%...

  • Page 16: Motor Alone Mode

    Note: the description on reciprocating mode is only applicable for the device that has reciprocating mode. 3 Motor alone mode 3.1 Base start and stop 3.1.1 starting: If power off, press and hold the POWER button for several second, welcome screen will appear. 3.1.2 shutdown: When power on, press and hold the POWER button for 1 second, the screen slowly get dark, and the device shutdown.
  • Page 17 3.3.2 AUTO STOP: During operation, if the load exceeds a preset value, The motor reverse automatically and the base alarms .if the load lower the preset value, The motor stops. Push the handpiece button twice to restart the handpiece. 3.3.3 AUTO REVERSE OFF If the load lower the preset value, The motor stops.
  • Page 18 range: 0.4-5.0Ncm) 3.7 User-defined system PROGRAM Mode: 8 sets of User-defined continuous rotary system speed and torque parameters can be set, and the user defined file system number (File system number: 1-8) can be switched by the button. RECIPROCATING Mode: 3 sets of User-defined reciprocating system speed, torque, forward angle and reverse angle parameters can be set.

  • Page 19: Apex Locator Alone Mode

    After charging, pull out the power adapter. 3.9.2 Motor handpiece charging The motor handpiece has a built-in energy storage lithium battery and is equipped with wireless inductive charging. When the base is in the power-on state, put the motor handpiece correctly in the motor handpiece slot of the base, the wireless charging indicator on the base starts to flash, and the base can start wireless induction charging of the motor handpiece.
  • Page 20 Picture 1 Attention: a. Please be careful to use the device, keep it stable and avoid hit. Incautious use will lead to the damage or the failure of the machine. b. Measurement cannot be proceeded without the complete insertion of the plug. c.
  • Page 21 b. Make sure if the plug of the measuring wire is inserted into the socket correctly. c) Make sure if the file clip and lip hook are connected well to the measuring wire. d) Make the lip hook touch the bent wire of the file clip [as showed in picture 3] to confirm all the instruction bars are displayed on the LCD screen and static display the digital ‘-3’, otherwise , it means that the file clip or the measuring wire is damaged, should be replaced.
  • Page 22 4.4 Testing the device by tester. (Two weeks test again) User can use the tester to check if the device work properly, specific operation is as follows: a. Pulling out the measure wire and turn off the device. b. Insert the tester c.
  • Page 23 Attention: a. When grip the root canal with a needle file, please grip the upper of the metal part(near the root canal at the needle handle). If you grip the lower part (bladeor moving part),it will wear the metal part of the file folder and the resin part.

  • Page 24: Combined Length Determination Mode

    Picture 9 4.7 Cleaning and disinfection 4.7.1 You can use the alcohol or the soap clean the machine and the measuring wire. 4.7.2 Don’t use the chemical reagent. 4.7.3 The hip hook,filp clip,touch probe and the contra-angle must be cleaned, disinfected before you start the treatment. WARNNING Measuring wire cannot be clean by high temperature and high pressure.
  • Page 25 5.1.3 Insert the USB wire’s male plug (big) into the right side USB’s female socket of the base. 5.2 Contra-angle & Motor handpiece installing 5.2.1 Put the protective silicon cover onto the contra-angle. 5.2.2 Install the contra-angle into the motor handpiece. 5.2.3 Install the file into the contra-angle, clamp the file.

  • Page 26: Trouble Shooting

    5.5 Hook the lip hook in the corner of the patient’s mouth. 5.6 Power on the motor handpiece to operate. 5.7 The display of root hole magnified area display in combined length determination mode: 1 Approx 2mm to apical foramen 2 Approx 0.6mm to apical foramen 3 Apex(apical foramen) 6 Trouble shooting...
  • Page 27 Problem Cause Solution After the motor 1. The wireless 1.Press the handpiece “ON/ handpiece is connection has failed OFF” button more than 5 activated, if 2. Handpiece far from seconds to power off and the wireless the base. power on again. communication 2.

  • Page 28: Cleaning, Disinfection And Sterilization

    7 Cleaning, Disinfection and Sterilization 7.1 Foreword For hygiene and sanitary safety purposes, the the contra-angle, the lip hook, the file clip, the protective silicon cover and the touch probe must be cleaned, disinfected and sterilized before each usage to prevent any contamination.
  • Page 29 7.3.1 Pre-Op processing Before each use, the handpiece, charger, and base must be cleaned and disinfected. The specific steps are as follows: Warning: The handpiece, charger, and base cannot be cleaned and disinfected with automatic equipment. Manual cleaning and disinfection is required. 7.3.1.1 Manual cleaning steps: 1.
  • Page 30 Tools: Nap-free soft cloth, tray 1. Remove the contra-angle from the handpiece, place it in a clean tray, and then remove the disposable isolation sleeve from the handpiece. 2. Soak the nap-free soft cloth with distilled water or deionized water, and then wipe all the surfaces of the components such as the handpiece, charger, base, etc.
  • Page 31 sufficiently validated equipment and product-specific procedures are used for cleaning/disinfection and sterilization, and that the validated parameters are adhered to during every cycle. Please also observe the applicable legal requirements in your country as well as the hygiene regulations of the hospital or clinic, especially with regard to the additional requirements for the inactivation of prions.
  • Page 32 Disassembling steps a) Press the push-button and pull out the shank/file. b) Sliding it in the direction of the socket of handpiece and then removed with contra-angle. Otherwise it will be damaged. c) When removing the protective silicon cover, pull it straight out slowly.
  • Page 33 distilled water, deionized water or multi-enzyme. But please ensure that the selected cleaning agent is compatible with the product. b) In washing stage, the water temperature should not exceed 45 °C, otherwise the protein will solidify and it would be difficult to remove. c) After cleaning, the chemical residue should be less than 10mg / L.
  • Page 34 protein will solidify and it is difficult to remove. (c3) The solution used can be pure water, distilled water, deionized water or multi-enzyme solution, etc., and only freshly prepared solutions can be used. (c4) During the use of cleaner, the concentration and time provided by manufacturer shall be obeyed.
  • Page 35 1. Check the product. If there is still visible stain on the product after cleaning/disinfection, the entire cleaning/disinfection process must be repeated. 2. Check the product. If it is obviously damaged, smashed, detached, corroded or bent, it must be scrapped and not allowed to continue to be used.
  • Page 36 are prohibited: ·The steam sterilizer complies with EN13060 or is certified according to EN 285 to comply with EN ISO 17665; ·The highest sterilization temperature is 138 ° C; ·The sterilization time is at least 4 minutes at a temperature of 132 ° C / 134 °...

  • Page 37: Storage, Transport And Maintenance

    b) Product storage must be batched and marked and recorded. 7.4.10 Transportation 1. Prevent excessive shock and vibration during transportation, and handle with care; 2. It should not be mixed with dangerous goods during transportation. 3. Avoid exposure to sun or rain or snow during transportation. 8 Storage, transport and maintenance 8.1 Storage 8.1.1 This equipment should be stored in a room where the relative...

  • Page 38: Environmental Protection

    the running properties can change with usage, cleaning and sterilization. See section 3.8 for details. 8.3.6 Battery replacement 8.3.6.1 When the battery of the base or motor handpiece cannot be charged, or the base or the motor handpiece cannot be switched on and the battery needs to be replaced, it must be sent back to the manufacturer or replaced by the service personnel authorized by the manufacturer.

  • Page 39: Statement

    Table 1: Declaration - electromagnetic emissions Guidance and manufacturer’s declaration - electromagnetic emissions The model Endo Radar Plus is intended for use in the electromagnetic environment specified below. The customer or the user of the model Endo Radar Plus should assure that it is used in such an environment.
  • Page 40 Table 2: Guidance & Declaration - electromagnetic immunity Guidance & Declaration — electromagnetic immunity The model Endo Radar Plus is intended for use in the electromagnetic environment specified below. The customer or the user of the model Endo Radar Plus should assure that It is used in such an environment.
  • Page 41 Conducted RF & Radiated RF Guidance & Declaration - Electromagnetic immunity The model Endo Radar Plus is intended for use in.the electromagnetic environment specified below. The customer or the user of the models Endo Radar Plus should assure that it is used in such an environment.
  • Page 42 Conducted RF 3 Vrms Portable and mobile RF lEC 61000-4-6 150 kHz to 80 communications equipment Conducted RF 3V/m should be used no closer to any lEC 61000-4-6 6 Vrms part of the models Endo Radar Radiated RF Plus, including cables, than the lEC 61000-4-3 frequency recommended separation distance...
  • Page 43 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model Endo Radar Plus is used exceeds the applicable RF compliance level above, the model Endo Radar Plus should be observed to verify normal operation.
  • Page 44 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) accordable to the transmitter manufacturer.
