Kvaser Hybrid Pro CAN/LIN User's Guide
Copyright 2021 Kvaser AB, Mölndal, Sweden
https://www.kvaser.com
th
Printed Sunday 14
November, 2021
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Advertisement
Table of Contents
Related Manuals for Kvaser Hybrid Pro CAN/LIN
Summary of Contents for Kvaser Hybrid Pro CAN/LIN
- Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
- Page 2 Kvaser Hybrid Pro CAN/LIN User’s Guide 2 (24) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
4.6 Updating the firmware ......4.7 Kvaser MagiSync ...... -
Page 4: About This Manual
Kvaser Hybrid Pro CAN/LIN User’s Guide 4 (24) 1 About this manual This manual is intended for Kvaser Hybrid Pro CAN/LIN users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer. -
Page 5: Introduction

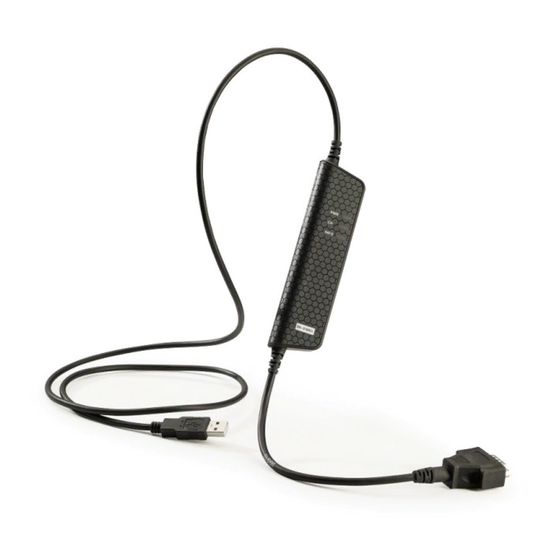

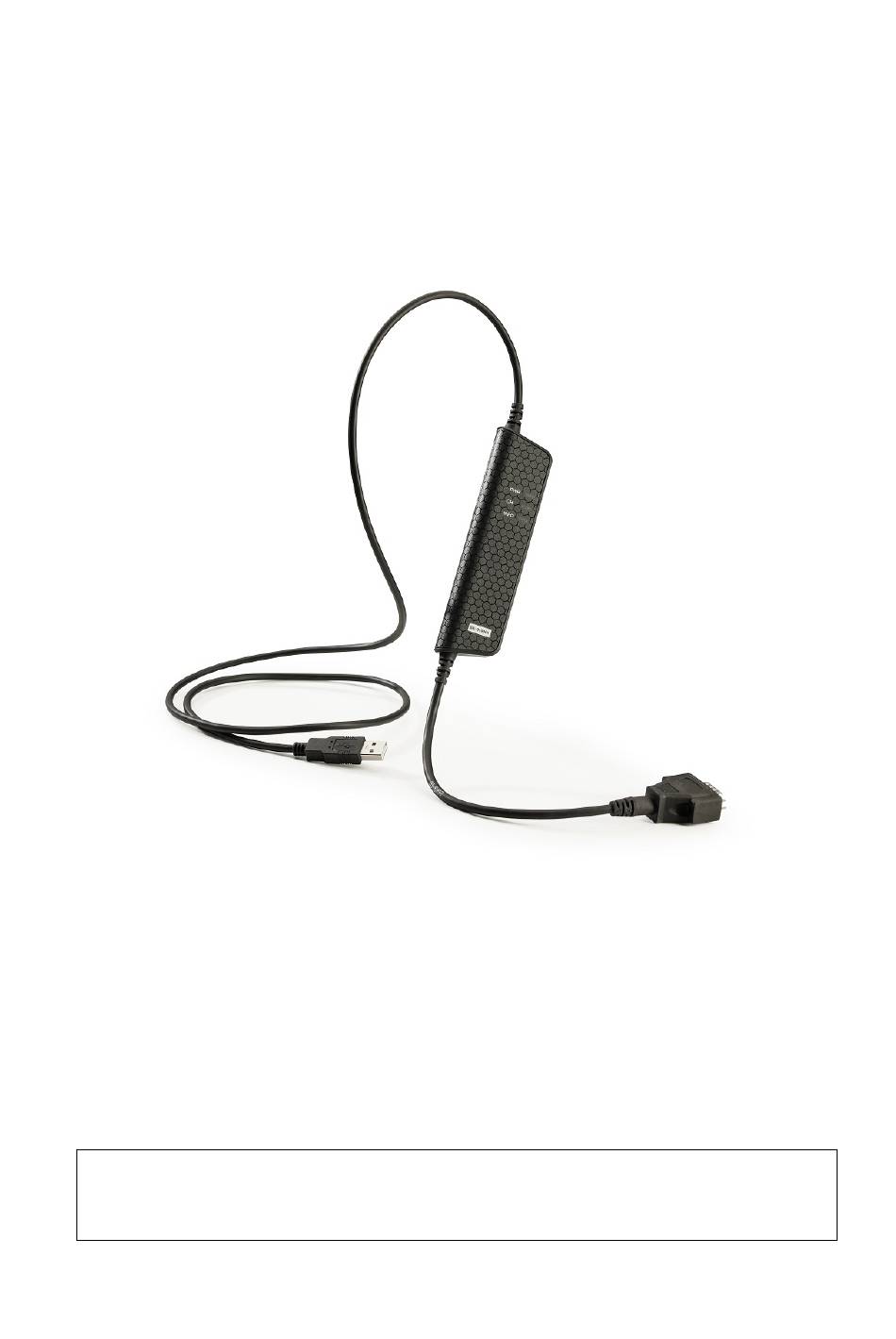

2.1 Welcome to Kvaser Hybrid Pro CAN/LIN Figure 1: Kvaser Hybrid Pro CAN/LIN Kvaser Hybrid Pro CAN/LIN is a single channel interface where the channel can be opened either as CAN or LIN. The Kvaser Hybrid Pro CAN/LIN is compatible with applications that use Kvaser’s CANlib and LINlib. -
Page 6: Major Features
2.4 The t programming language The Kvaser t programming language is event oriented and modelled after C. It can be used to customize the behavior of the Kvaser Hybrid Pro CAN/LIN and other Kvaser t capable devices. A t program is invoked via hooks, which are entry points that are executed at the occurrence of certain events. -
Page 7: Restrictions In T Functionality
(RTC), logger or SD card functionality, neither does the Kvaser Hybrid Pro CAN/LIN include dedicated I/O pins. This means that the t functionality listed in Table 2 on Page 7 is not available on Kvaser Hybrid Pro CAN/LIN (the table shows version 3.10 of the t language compiler). -
Page 8: Additional Software And Documentation
8 (24) 2.6 Additional software and documentation The Kvaser CANlib SDK includes everything you need in order to develop software applications interacting with Kvaser CAN hardware. The SDK contains full documentation and many sample programs, written in C, C++, C#, Delphi, Python and Visual Basic. -
Page 9: Kvaser Hybrid Pro Can/Lin Hardware
The driver is installed by running the file The Kvaser Hybrid Pro CAN/LIN may be inserted in any free USB socket on the host computer. You do not need to switch the power off before inserting or removing the device. -
Page 10: Can/Lin Channel
Figure 3: CAN/LIN connector on Kvaser Hybrid Pro CAN/LIN 3.4 Power supply The Kvaser Hybrid Pro CAN/LIN is powered from the USB port. You also need to apply a reference voltage to the LIN reference power pin when running the channel in LIN mode. -
Page 11: Led Indicators
11 (24) 3.5 LED Indicators The Kvaser Hybrid Pro CAN/LIN has a single power LED as well as one traffic LED and one Informational LED for the CAN/LIN channel as shown in Figure 4 on Page 11. Their functions are described in Section 4.1, Definitions of LED states and colors, on Page 12. -
Page 12: Appendices
As an example, "Slow Waver (Green/Yellow)" means that the LED is slowly blinking by alternating between green and yellow. The Kvaser Hybrid Pro CAN/LIN has three LEDs as shown in Figure 4 on Page 11. Their functions are shown in Table 4 on Page 13. - Page 13 Table 5: Yellow Power LED shows problems in Interface mode. 4.1.2 CAN and LIN usage Kvaser Hybrid Pro CAN/LIN is ready to be operated as either a CAN or LIN interface when connected to the PC without further configuration. You can use the same CANlib and LINlib API calls as with other Kvaser interfaces, use CANlib for CAN and LINlib for LIN related usage.
-
Page 14: Start And Stop Of T Programs
CAN overrun Table 6: Traffic LED shows CAN bus status in CAN Interface mode. 4.1.4 LIN interface mode When Kvaser Hybrid Pro CAN/LIN is used as a LIN interface, the traffic LED is used as described in Table 7. Traffic LED... -
Page 15: Technical Data
Kvaser Hybrid Pro CAN/LIN User’s Guide 15 (24) 4.3 Technical data In Table 8 on Page 15 you will find the Kvaser Hybrid Pro CAN/LIN’s technical specifications. CAN/LIN Channels 1 (Configurable as CAN or LIN) CAN Transceivers TJA1051T/E (Compliant with ISO 11898-2) -
Page 16: Can Bus Termination
USB connector. The Reference Voltage (pin 9) must be connected to a voltage supply in the range of 6 V to 27 V (absolute maximum rating is 40V) to ensure proper behaviour of the transceiver. The Kvaser Hybrid Pro Ω... -
Page 17: Updating The Firmware
The latest versions of firmware and drivers can be downloaded for free at www.kvaser.com/download. Connect the Kvaser Hybrid Pro CAN/LIN to your PC with the USB cable and start the update.exe application. A window opens showing the Firmware Update Instructions, read and follow those carefully. - Page 18 Kvaser Hybrid Pro CAN/LIN User’s Guide 18 (24) Figure 6: An example setup where all devices are synchronized via MagiSync. Figure 7: Not all devices are synchronized via MagiSync in this setup. Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 19: Disposal And Recycling Information
Kvaser Hybrid Pro CAN/LIN User’s Guide 19 (24) 5 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: https://www.kvaser.com/en/kvaser/recycling-policy.html... -
Page 20: Legal Acknowledgements
KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 21: Eu Regulatory Compliance
Kvaser Hybrid Pro CAN/LIN User’s Guide 21 (24) 6.2 EU Regulatory Compliance EU Declaration of Conformity (DoC) Kvaser AB M¨ o lndal Company Name: City: Aminogatan 25 +46 31 886344 Postal address: Telephone number: 431 53 sales@kvaser.com Postcode: E-mail address:... -
Page 22: Fcc Regulatory Compliance
Kvaser Hybrid Pro CAN/LIN User’s Guide 22 (24) 6.3 FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Hybrid Pro CAN/LIN Type: 73-30130-01288-2 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules. -
Page 23: Patents, Copyrights And Trademarks
Adobe Systems Incorporated in the United States and/or other countries. DeviceNet is a trademark of Open DeviceNet Vendor Association, Inc. NMEA 2000 is the registered trademark of the National Marine Electronics Association, Inc. For information about Kvaser related CAN patents, see www.kvaser.com/patent. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 24: Document Revision History
Kvaser Hybrid Pro CAN/LIN User’s Guide 24 (24) 7 Document Revision History Version history for document UG_98243_hybrid_pro_can_lin: Revision Date Changes 2021-10-25 Initial version Kvaser AB, Mölndal, Sweden — www.kvaser.com...
