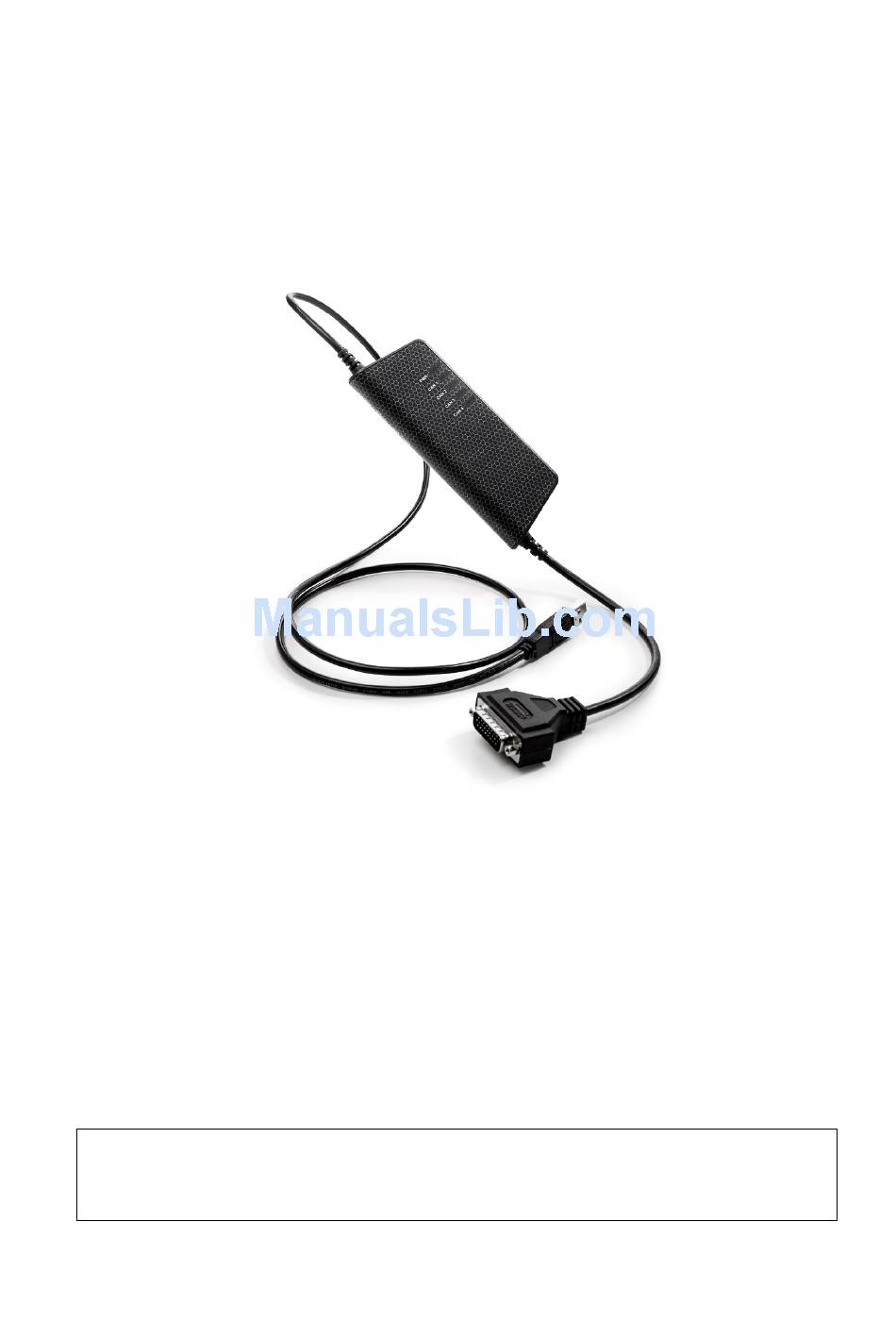

Kvaser USBcan Light 4xHS User's Guide
Copyright 2015-2018 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
Printed Wednesday 16
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
th
May, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USBcan Light 4xHS and is the answer not in the manual?

Questions and answers

Related Manuals for Kvaser USBcan Light 4xHS

Summary of Contents for Kvaser USBcan Light 4xHS

  • Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
  • Page 2 Kvaser USBcan Light 4xHS User’s Guide 2 (20) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...

  • Page 3: Table Of Contents

    2 Introduction 2.1 Welcome to Kvaser USBcan Light 4xHS ....2.2 Major features ......

  • Page 4: About This Manual

    Kvaser USBcan Light 4xHS User’s Guide 4 (20) 1 About this manual This manual is intended for Kvaser USBcan Light 4xHS users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer.

  • Page 5: Introduction

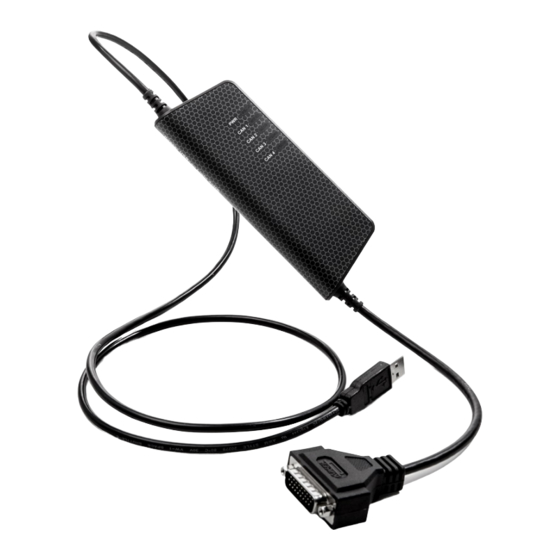

    2.1 Welcome to Kvaser USBcan Light 4xHS Figure 1: Kvaser USBcan Light 4xHS Kvaser USBcan Light 4xHS is a small, yet advanced, portable multi channel CAN to USB real time interface that handles transmission and reception of standard and extended CAN messages on the CAN bus with a high time stamp precision. The Kvaser USBcan Light 4xHS is compatible with applications that use Kvaser‘s...
