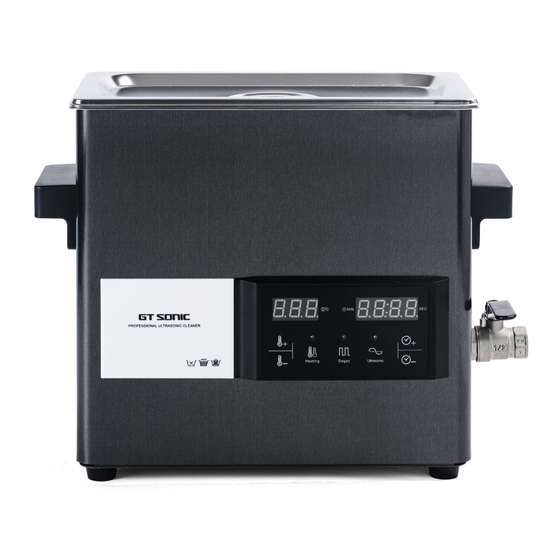

GT SONIC-S SERIES ULTRASONIC CLEANER
USER MANUAL
Thank you for purchasing GT SONIC ultrasonic cleaner. Please take
the time to read these operating instructions before use and retain
them for future reference. Failure to follow these instructions may
lead to serious personal injury and damage to property.
Advertisement
Related Manuals for GT SONIC S Series
Summary of Contents for GT SONIC S Series
- Page 1 GT SONIC-S SERIES ULTRASONIC CLEANER USER MANUAL Thank you for purchasing GT SONIC ultrasonic cleaner. Please take the time to read these operating instructions before use and retain them for future reference. Failure to follow these instructions may lead to serious personal injury and damage to property.
-
Page 2: Table Of Contents
Content 01.Overview /Scope of Delivery 4 7 - 02.Safety Instructions 03.Applications 7 9 - 04.Introduction 9 11 05.Operation 11 13 06.Care and maintenance 13-14 07.Specifications 01. OVERVIEW/SCOPE OF DELIVERY Note:Check that all accessories are include and undamaged. C:Warning marking D: Housing A : Lid B:Handles F: Controlpanel... - Page 3 Contents: a: Main machine c: Power cord b: Soundproof lid d: Outlet filter e: Mesh basket f: User manual available for 6L-9L...
-
Page 4: Safety Instructions
02. SAFETY INSTRUCTIONS Intended use The cleaner can be used for commercial purpose indoors only. Possible misuse The cleaner must only be used according to the purposes described in these instructions. DANGER for children //This cleaner is not intended to use by individuals with restricted physical sensory or metal capacities or those with lack of experience or knowledge, include children, unless they are supervised by an individual who is responsible for their safety or have received training... - Page 5 DANGER of electric shock //Do not operate the cleaner if it or the cable shows visible signs of damage or if the cleaner has been dropped. //Only connect the mains plug to a properly installed socket,which is easily accessible and supplies voltage matching the rating plate. The socket must still be easily accessible after connection.
- Page 6 DANGER of electric shock as a result of moisture //Do not use this cleaner in the vicinity of bathtubs, showers, washbasins or other vessels containing water. //Never put the cleaner down in such a way that it could fall into water //Protect the cleaner from moisture,dripping water or splash water.
-
Page 7: Applications
WARNING !To prevent damage to the cleaner //Do not operate the cleaner when the tank is empty. Dry running will damage the cleaner. //When filling the tank, always ensure that the water immersed the 1/2 of tank and do not exceeded the max line. //Do not place parts or containers directly on the bottom of the cleaning tank;... - Page 8 Objects to be cleaned(application examples): Jewelry especially gold, silver & platinum Laboratory Hospital &Dental Beauty& Nail tools Automotive and motor parts Metal parts cleaning Industrial parts and tools Laser Component Electronic Boards The list is almost endless. Provided the product is non porous and can normally be immersed in water almost anything can be thoroughly cleaned.
-
Page 9: Introduction 9
Items Not suitable for ultrasonic cleaning: Soft Jewelry: Pearls, emerald, ivory, coral. Agate, sea turtle shells, etc. Welded, Plated and Glued Items: Welded or plated metal items, glued items. Watches: Except diver’s watches with depth rating over 50m(150ft). Others: Ceramic, camera filters with preexisting cracks. 04. - Page 10 A: LED display temperature. B: LED display cleaning time. C: Heating button: Touch this button to start/stop heating. (Note 1: The new machine will display the ambient temperature when first time use.) D: Increase Temperature: Touch this button to set the temperature. ℃...
- Page 11 Ultrasonic cleaning is extremely effective in removing dirt and grime which would normally require tedious manual cleaning . It is used to clean a wide variety of instruments and mechanical parts ,returning them to almost “like new” condition without damage to delicate parts. 05.OPERATION Step Action...
- Page 12 Touch to start/stop heating. Touch to setting the temperature. Note: 1. To get the best cleaning result, the solution’s temperature we suggest is 40-60℃. Warm water and dish washing liquid can soften grease and improve Heating cleaning result. 2.When setting the temperature, if the setting temperature exceeds the ambient temperature, touch key, the heating working, and indicator...
-
Page 13: Care And Maintenance
After timer and temperature setting, Touch “ultrasonic” key, the corresponding indicator on and the device will work: continuously working with full ultrasonic power and countdown display. Ultrasonic Mode If you want to transfer to other mode, just touch , the “ultrasonic” indicator turn off and indicator for “degas”... -
Page 14: Specifications
//DO not impact ,hit the device. Handle with care when move the device. 07.SPECIFICATIONS Volume Ultrasonic Power Frequency Heating Power Timer Heating Temperature Tank Size Unit Size Model (℃) (L*W*H)mm (Min) (L*W*H)mm (kHz) GT SONIC-S2150x140x100 175x165x230 1-99 30-80 240x140x100 330x165x230 1-99 30-80 GT SONIC-S3 GT SONIC-S6 300x150x150 400x175x305 1-99 30-80...
