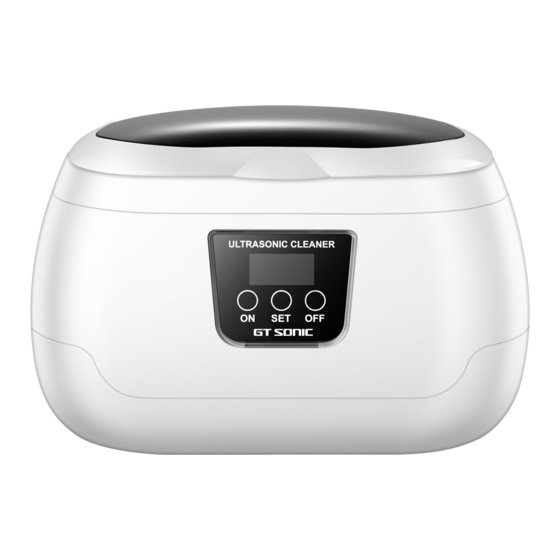

GT SONIC GT-F5 User Manual
  1. Manuals
  2. Brands
  3. GT SONIC Manuals
  4. Ultrasonic Jewelry Cleaner
  5. GT-F5
  6. User manual

GT SONIC GT-F5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ULTRASONIC CLEANER
GT-F5
USER MANUAL
Thank you for purchasing GT SONIC ultrasonic cleaner. Please take
the time to read these operating instructions before use and retain
them for future reference. Failure to follow these instructions may
lead to serious personal injury and damage to property.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-F5 and is the answer not in the manual?

Questions and answers

Related Manuals for GT SONIC GT-F5

Summary of Contents for GT SONIC GT-F5

  • Page 1 ULTRASONIC CLEANER GT-F5 USER MANUAL Thank you for purchasing GT SONIC ultrasonic cleaner. Please take the time to read these operating instructions before use and retain them for future reference. Failure to follow these instructions may lead to serious personal injury and damage to property.

  • Page 2: Overview/Scope Of Delivery

    Content 01.Overview /Scope of Delivery 02.Safety Instructions 03.Introduction 04.Operation 9-10 05.Methods of Use 10-11 06.Care and Maintenance 07.Specifications 01. OVERVIEW/SCOPE OF DELIVERY Note:Check that all accessories are include and undamaged. View window "ON" button Digital display time “OFF" button “SET" button Basket Watch holder...

  • Page 3: Safety Instructions

    02. SAFETY INSTRUCTIONS Intended use The device is designed for private home use only and must not be used for commercial purposes. The device must only be used indoors. Possible misuse The device must only be used according to the purposes described in these instructions.
  • Page 4 DANGER of electric shock as a result of moisture //Do not use this device in the vicinity of bathtubs,showers,washbasins or other vessels containing water. //Never put the device down in such a way that it could fall into water while still connected. //Protect the device from moisture,dripping water or splash water.
  • Page 5 //Only connect the mains plug to a properly installed socket,which is easily accessible and supplies voltage matching the rating plate. The socket must still be easily accessible after connection. //Ensure that the cable not damaged by sharp edges or hot surfaces. Do not wrap the cable around the device (cable break danger!) //Make sure the cable is not trapped or crushed.
  • Page 6 //Do not operate the device when the tank is empty. Dry running will damage the device. //When filling the tank,always ensure that the “MAX” marking is not exceeded. //Do not run the device for extended time or continuously . //Do not use aggressive or abrasive cleaners. //Do not hit the device.Be careful when moving the device.
  • Page 7 CAUTION! Loosely framed stones,glued ornaments on decorative items as well as loose items could be detached during the cleaning process.Ask your dentist particularly in case of dentures including veneers. The following object are not suitable for ultrasonic cleaning: //Genuine pearls,semi-precious stones,costume jewelry or soft stones such as pearls,turquoise,coral,emeralds,etc.
  • Page 8 03. INTRODUCTION The principle of ultrasonic cleaning SUS304 TANK Solution Transducer Generator Detergent Tiny vibration Cavitation Debris come off Ultrasonic cleaning is based on the cavitation effect caused by the vibration of high frequency ultrasonic waves in the liquid . Microscopic bubbles are formed.These implode causing the cavitation which create an intense scrubbing action on the surface of the item being cleaned.

  • Page 9: Operation

    Ultrasonic cleaning is extremely effective in removing dirt and grime which would normally require tedious manual cleaning . It is used to clean a wide variety of instruments and mechanical parts such, returning them to almost “like new” condition without damage to delicate parts.

  • Page 10: Methods Of Use

    5)If you would like to stop cleaning during working, please press"OFF" button. SET OFF 6)When cleaning is completed, unplug the power cord, open the lid, remove cleaned items. Then pour out the dirty water from tank, clean and wipe the tank dry and keep away from child.

  • Page 11: Care And Maintenance

    Partial cleaning For the partial cleaning of bigger objects,use the device with its lid open. Do not touch the liquid during operation! Ultra cleaning Whenitemsrequireextensivecleaning,use "Thorough Cleaning"procedurefirst,replace waterandrepeat" Thorough Cleaning" process untilitemscompletelyclean. 06. CARE AND MAINTENANCE DANGER!Before cleaning the device,pull out the power plug .Never immerse the device,cable or power plug in water or another liquid for cleaning and care purpose.
  • Page 12 AC100~120V, 60Hz or AC220~240V, 50Hz Ultrasonic Power Tank Size 150x90x50(L*W*H)mm Overall Size 206x145x133(L*W*H)mm 895g N.W. 1.20Kg G.W. Guangdong GT Ultrasonic Co.,Ltd T e l: +86-755-23356705 Fax: +86-755-29918628 E-mail: service@gtsonic.cn Web: www.gtsonic.net Factory Add: GT SONIC Technology Park, Meizhou City, Guangdong, China...
