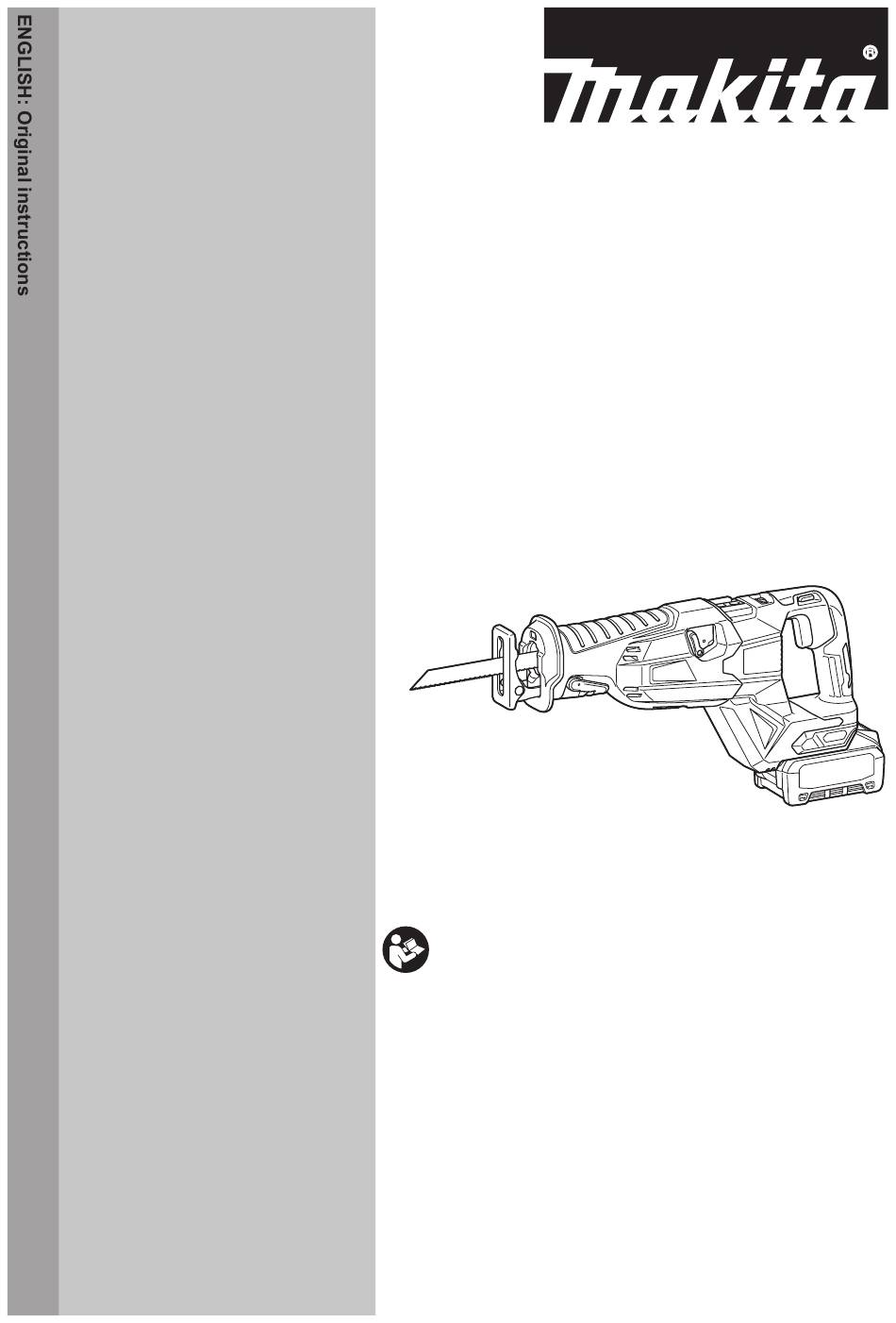

- Page 1 INSTRUCTION MANUAL Cordless Recipro Saw JR002G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: JR002G Length of stroke 32 mm Strokes per minute 0 - 3,000 min Max. cutting capacities Pipe 130 mm Wood 255 mm Overall length with BL4025 436 mm with BL4050F 473 mm Rated voltage D.C. 36 V - 40 V max Net weight 4.6 - 5.8 kg... -
Page 3: Ec Declaration Of Conformity
Electrical safety Vibration Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any The vibration total value (tri-axial vector sum) deter- adapter plugs with earthed (grounded) power mined according to EN62841-2-11: tools. Unmodified plugs and matching outlets will Work mode: cutting boards reduce risk of electric shock. Vibration emission (a ) : 8.5 m/s Avoid body contact with earthed or grounded... - Page 4 If devices are provided for the connection of Keep cutting tools sharp and clean. Properly dust extraction and collection facilities, ensure maintained cutting tools with sharp cutting edges these are connected and properly used. Use of are less likely to bind and are easier to control. dust collection can reduce dust-related hazards. Use the power tool, accessories and tool bits Do not let familiarity gained from frequent use etc.
- Page 5 Follow your local regulations relating to rules stated in this instruction manual may cause disposal of battery. serious personal injury. 12. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, exces- sive heat, explosion, or leak of electrolyte. 5 ENGLISH...
-
Page 6: Functional Description
18. Keep the battery away from children. and result in damage to the tool and battery cartridge SAVE THESE INSTRUCTIONS. and a personal injury. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life Charge the battery cartridge before completely discharged. -
Page 7: Overload Protection
Turn the tool off, and then turn it on again to restart. Charge the battery(ies) or replace it/them with recharged battery(ies). Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Indicating the remaining battery Fig.3 capacity ► 1 . Lever Press the check button on the battery cartridge to indi- This tool can be operated with an orbital or a straight cate the remaining battery capacity. The indicator lamps line cutting action. -
Page 8: Switch Action
Speed adjusting dial Switch action CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. CAUTION: When not operating the tool, depress the lock-off button from A side to lock the switch trigger in the OFF position. -
Page 9: Adjusting The Shoe
Cleaning inside of the shoe NOTE: Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or You can remove the shoe and clean dust or chip inside it may lower the illumination. of the tool. NOTE: When the tool is overheated, the lamp blinks Pull the shoe adjusting lever fully. -
Page 10: Electronic Function
This tool is equipped with an electric brake. If the tool that the recipro saw blade cannot be extracted even consistently fails to quickly stop after the switch trigger though you try to pull it out. is released, have the tool serviced at a Makita service center. Electronic function The tool is equipped with the electronic functions for easy operation. -
Page 11: Operation
If the CAUTION: shoe is removed or held away from the workpiece These accessories or attachments during operation, strong vibration and/or twisting will are recommended for use with your Makita tool be produced, causing the blade to snap dangerously. specified in this manual. The use of any other accessories or attachments might present a risk of CAUTION: Always wear gloves to protect your injury to persons. Only use accessory or attachment... - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885947-223 www.makita.com 20211103...
