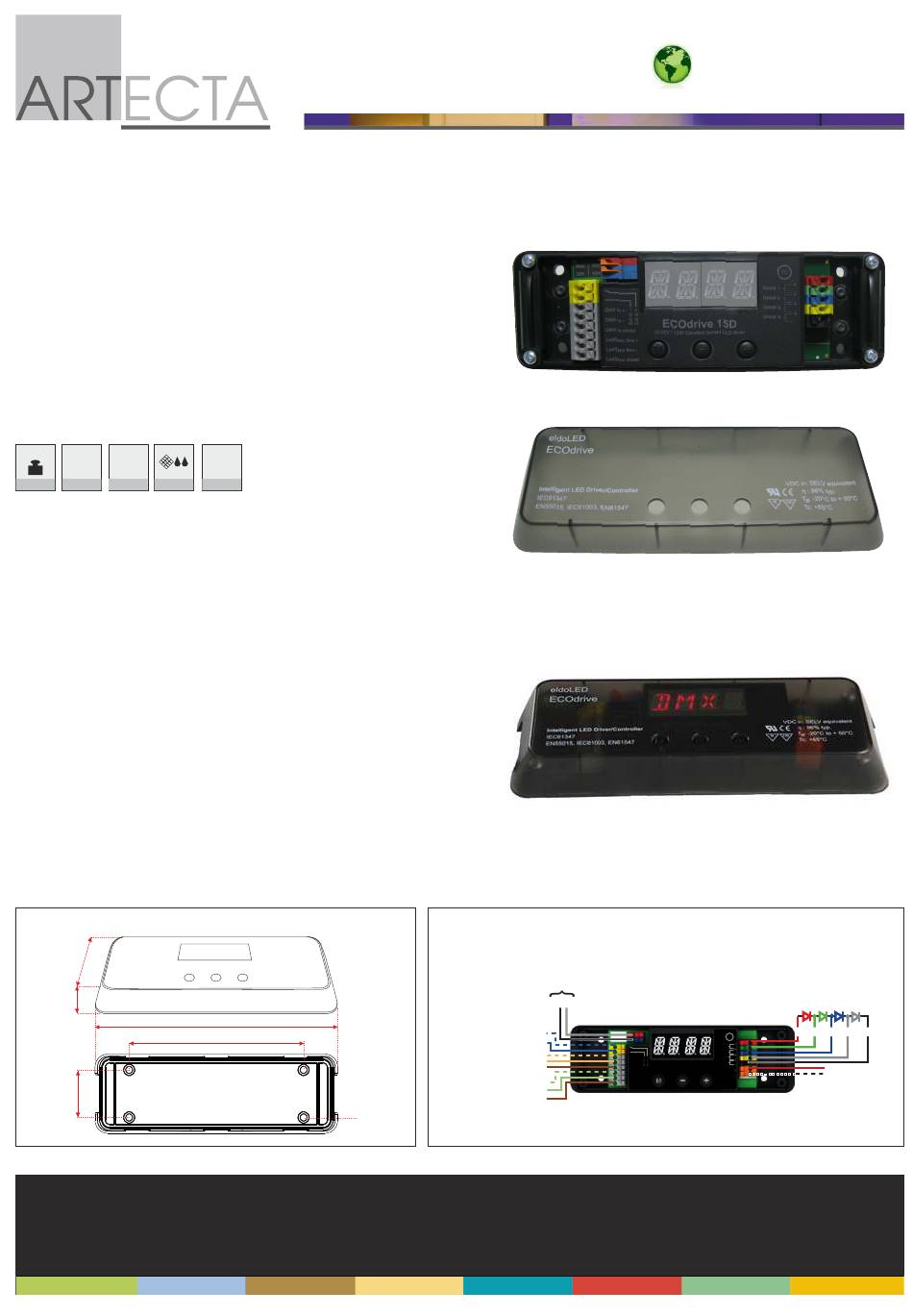

A9950030 ECOdrive DC15W
Constant Current RGB(W) LED driver/controller
The ECOdrive DC15W is a highly integrated, cost effective, enclosed and by display easy-to-configure
constant current driver/controller for indoor LED lighting applications. The ECOdrive can be integrated
in a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), the
ECOdrive DC15W is the ideal choise for powering 200mA - 500mA HB LED`s
Technical specifications:
LED current settings:200-500mA (in 50mA steps)
Power output range: 0-15 Watt
Operarating supply: 12V-32V DC (Efficiency up to 95%)
Independed LED groups: up to 4
Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
Cooling: Passive (integrated heat spreader)
Relative huminity: non condensing
Network input: USITT DMX-512, LedSync
Network output: USITT DMX-512, LedSync
Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
Certifications: CE: IEC 61347, EN 55015, IEC61003, EN 61547
KG Operat.
Class
Power
Class III IP-20
0.126 12-32V DC
Mode Settings: Color (stand-alone with speed and intensity), Show (9-20 sequences), DMX
DMX control mode: a. 1-1L 1-DMX-channels for LED group 1) (group 2+3+4 are disabled)
b. 2-2L 2-DMX-channels for LEDgroup 1+2) (group 3+4 are disabled)
c. 3-3L 3-DMX-channels for LED group 1+2+3) (group 4 is disabled)
d. 4-4L 1-DMX-channels for LED group 1+2+3+4)
e. 2-4L 2-DMX-channels for 2 LED groups 1+2 & 3+4)
f. 1-4L 1-DMX-channels (4 groups 1+2+3+4)
g. RGB 3-DMX-channels for 3 LED groups (Red & Green & Blue)
h. RGBW 4-DMX-channels for 4 LED groups (Red & Green & Blue & White)
i. RGBA 4-DMX-channels for 4 LED groups (Red & Green & Blue & Amber)
j. RRGB 3-DMX-channels for 4 LED groups (2x Red & Green & Blue)
k. RGGB 3-DMX-channels for 4 LED groups (1x Red & 2x Green & 1xBlue)
l. CCWW 2-DMX-channels for 4 LED groups (2x same color & 2x White)
m. CWWW 2-DMX-channels for 4 LED groups (1-group & 3-groups)
Ext input mode: 1. POTM: 0-10V (turn off or dim the light)
2. SWITT: Show sequence
Dimensions in mm
50
M
23
30
L
IGHTING
L 155
mm
W 50
mm
H 23
mm
Dimensions
- +
155
110
Bottom view
Ø4.2 (4x)
Architainment
12V-32V DC IN
VDC- VDC+
Ext in +
Ext in -
{
DMX in +
DMX
DMX in -
in
DMX in shield
{
LedSync thru +
LedSync
LedSync thru -
thru
LedSync thru shield
LED
technology
R
TC
Group 1
Group 2
Group 3
DMX in +
Group 4
DMX in -
ECOdrive 15D
DMX in shield
12-32V / 15W Constant current LED driver NTC
LedSync thru +
NTC
LedSync thru -
LedSync shield
LED groups
G B W LGND
{
NTC + Thermal
NTC -
feedback
