- Page 1 A9915062 (black) A9915063 (white) ART-8D User Manual...

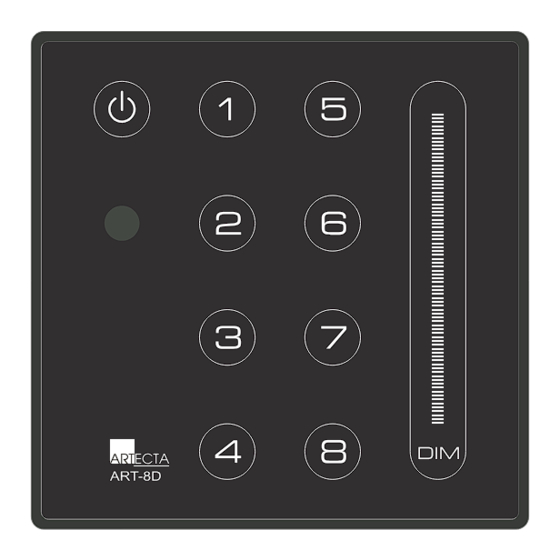

- Page 2 DESCRIPTIONS The ART-8D is a simple 8 scenes lighting controller with touch interface, featuring the function of online control, data copy, infrared remote control and so on. FEATURES 8 Scenes, 8 DMX Channels for each Scene Fade-In-Time and SwitchOff Fade-Time can be set for each Scene Function of front panel and programme lockable Infrared remote control External timing trigger controllable, different Scene can be timing raised and closed...
- Page 3 OPERATION GUIDE User Mode 1)In user mode, press and hold on any a figure button for 0.5 second that can raise Scene 1~8, just then use DIM-SLIDER to adjust the master intensity level for the raised Scene. Adjust intensity Raise a scene 2)Tap any a figure button may select DMX channel 1~8 for the current scene, now use DIM-SLIDER can adjust the DMX value for the selected Scene.
- Page 4 2)Selecting a Scene you want to edit. For example, press SCENE1 and hold it on for 3 seconds. The "ON/OFF" and "SCENE1" flash on and off that means you selected SCENE1. 3)Selecting a DMX channel from 1 to 8. For example, press figure button 1 and it lights that means you selected DMX channel 1.
- Page 5 9) Press "ON/OFF" for 3 seconds to access SwitchOff Fade-Time mode.The M1 and button 1~8 flash on and off . 10) Press figure button 1~8 may set the SwitchOff Fade-Time as 1~8 second(s) for SCENE 1. 11) If want to edit the other scenes, press and hold on the responding Scene for 3 seconds, repeat the step 2~10 to complete it.
- Page 6 Also you can press 2 figure buttons in order that the first figure Tens digit button is tens digit and the second one is ones digit. Just then, the tens digit indicator flashes and the ones digit indicator Ones digit lights.
- Page 7 Programme Lock Press and hold on "M 1 " + "ON/OFF", simultaneously adjust the DIM-Slider. 1)When DIM-Slider fully lights, the programme was locked. Now it is not allowed to access the programme mode or store a modified scene. 2)When DIM-Slider blacks out, the programme was unlocked.
- Page 8 Recover Default Synchronously press "M1" and "8", hold down them for 10 seconds, the device will recover it's factory default. Power failure protection This function will protect your data from power failure. REMOTE CONTROLLER The ART-8D is available in infrared remote control. Press the figure button 1~8 and hold down it for 0.5 second that the corresponding Scene can be raised, use DIM+/DIM- can adjust the master intensity of the scene.
