Summary of Contents for Artecta Domotion DLC-4 RGB

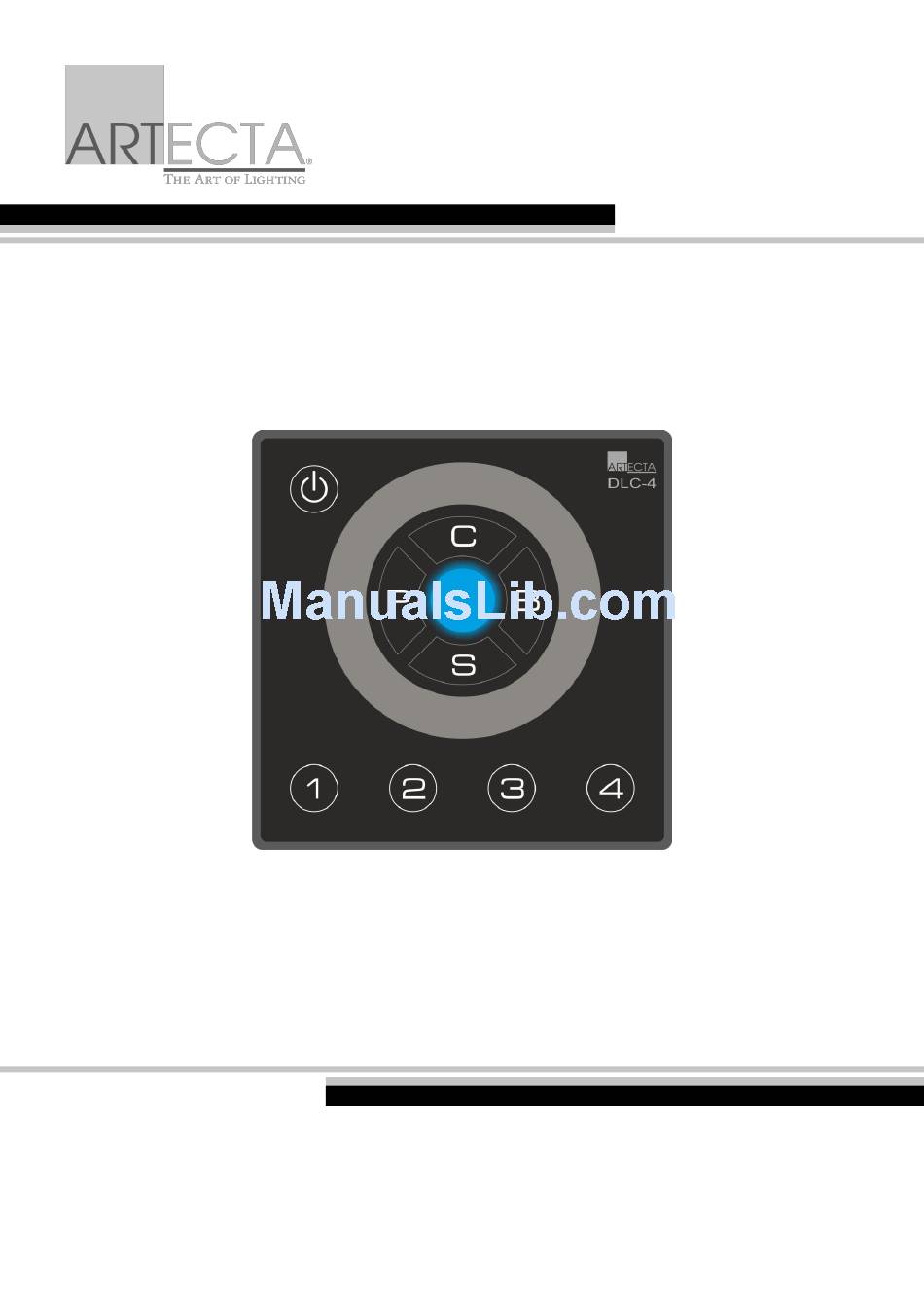

- Page 1 MANUAL ENGLISH Domotion DLC-4 RGB ordercode: A9915060/A9915061 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Domotion DLC-4 RGB Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Optional accessories..............................6 Frontside..................................7 Backside .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Artecta Domotion DLC-4 RGB User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ... - Page 4 • If your Artecta device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Artecta dealer for service.
-
Page 5: Operating Determinations
Domotion DLC-4 RGB Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 6: Return Procedure
Domotion DLC-4 RGB Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device
Domotion DLC-4 RGB Description of the device Features The Domotion DLC-4 RGB is a compact RGB LED controller from Artecta. It is easy to use and has a built-in PWM dimmer pack. LED indicator to display the current output ... -
Page 8: Frontside
Domotion DLC-4 RGB Frontside Fig. 01 01) Power ON/OFF 02) Built-in Program button 03) Color button 04) Brightness button 05) Output indicator 06) Speed button 07) Circular Touchpad 08) Figure buttons Backside Fig. 02 09) 4-pin terminal Link In 10) 4-pin terminal DMX out 11) 6-pin terminal PWM out &... -
Page 9: Installation
Domotion DLC-4 RGB Installation Remove all packing materials from the Domotion DLC-4 RGB. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Power Function
Domotion DLC-4 RGB 1. Power function When the DLC-4 is connected to a 12V or 24V power supply, the power button lights up. The device is ready to operate and resumes with the last known settings. In normal mode you can press the Power button for 2s and the device will switch to standby mode. -
Page 11: Speed
Domotion DLC-4 RGB 4. Speed With this function you can set the speed of the built-in programs. 01) Press the S-button for 1 second to activate the speed menu. 02) The button clicks and will light up. 03) Scroll through the circular touchpad to adjust the speed of the current built-in program. -
Page 12: Scene
Domotion DLC-4 RGB Scene With this menu you can save a scene, playback a scene or lock/unlock recording a scene. 6.1 Save scene 01) Press the P- or S-button for 1 second to activate the automatic mode. 02) The button clicks and will light up. -
Page 13: Maintenance
03) The electric power supply cable must not show any damages or material fatigue. The Domotion DLC-4 RGB requires almost no maintenance. However, you should keep the unit clean. Wipe the cover with a damp cloth. Do not immerse in liquid. Wipe the unit clean with glass cleaner and a soft cloth. - Page 14 Domotion DLC-4 RGB Problem Probable cause(s) Solution No power to the unit • Check if the unit is connected to The unit does not the power supply function at all Bad cable connection • Inspect connections and cables. Correct poor connection. Repair or replace damaged cables.
-
Page 15: Product Specifications
Domotion DLC-4 RGB Product Specifications Model: Artecta Domotion DLC-4 RGB Input Voltage: 12-24 VDC Power: 2A/kanal, total 6A max Channels: Dimming: IP rating: IP20 Protection class: Dimensions: 85 x 85 x 15 mm (LxWxH) Weight: 0,1 kg Min. operating temperature t 0°C... - Page 16 ©2017 Artecta...
