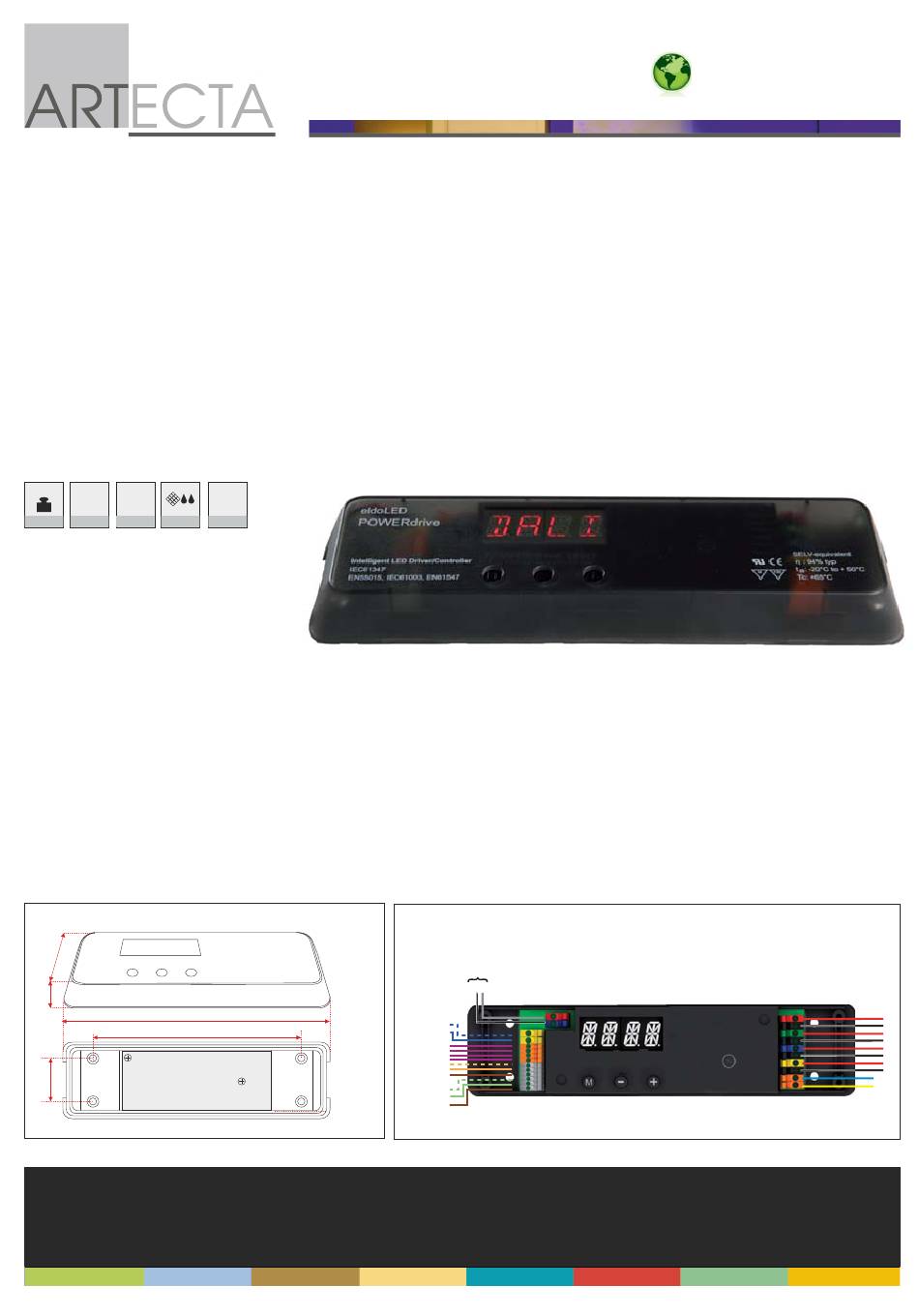

Artecta POWERdrive 45D Quick Start Manual

T A
HE RT OF
A9950040 POWERdrive DC45W
Constant Current RGB(W) LED driver/controller
The POWERdrive 45D is a highly integrated, enclosed and easy-to-configure constant current driver/
controller with multiple current sources for high-brightness, indoor LED lighting applications requiring up to 45 watts 200mA-500mA.
The POWERdrive 45D can be integrated in a network or used as standalone devices and is DMX, DALI and LedSync compatible,
the latter allowing 15-bit dimming and colour control and bidirectional communication for driver configuration and temperature readout.

Technical specifications:

LED current settings:200-500mA (in 50mA steps)
Power output range: 0-45 Watt
Operating supply: 12V-32V DC (Efficiency up to 95%)
Current max.: 2.2A
Independed LED groups: up to 4
Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
Cooling: Passive (integrated heat spreader)
Relative huminity: non condensing
Network input: USITT DMX-512, LedSync
Network output: USITT DMX-512, LedSync
Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
Certifications: CE: IEC 61347, EN 55015, IEC61003, EN 61547
KG Operat. Class
Power
Class III IP-20
0.196 12-32V DC

Mode Settings:

Color (stand-alone with speed and intensity), Show (9-20 sequences), DMX
DMX control mode: a. 1-1L 1-DMX-channels for LED group 1) (group 2+3+4 are disabled)
b. 2-2L 2-DMX-channels for LEDgroup 1+2) (group 3+4 are disabled)
c. 3-3L 3-DMX-channels for LED group 1+2+3) (group 4 is disabled)
d. 4-4L 1-DMX-channels for LED group 1+2+3+4)
e. 2-4L 2-DMX-channels for 2 LED groups 1+2 & 3+4)
f. 1-4L 1-DMX-channels (4 groups 1+2+3+4)
g. RGB 3-DMX-channels for 3 LED groups (Red & Green & Blue)
h. RGBW 4-DMX-channels for 4 LED groups (Red & Green & Blue & White)
i. RGBA 4-DMX-channels for 4 LED groups (Red & Green & Blue & Amber)
j. RRGB 3-DMX-channels for 4 LED groups (2x Red & Green & Blue)
k. RGGB 3-DMX-channels for 4 LED groups (1x Red & 2x Green & 1xBlue)
l. CCWW 2-DMX-channels for 4 LED groups (2x same color & 2x White)
m. CWWW 2-DMX-channels for 4 LED groups (1-group & 3-groups)
Dimensions in mm
50
-
+
M
23
192
150
30
Bottom view
L
IGHTING
L 192
mm
W 50
mm
H 23
mm
Dimensions
Mounting:
4x M4
screws
Architainment
12V-32V DC IN
VDC- VDC+
Ext IN +
Ext IN -
DALI IN +
DALI IN -
DALI OUT +
DALI OUT -
DMX IN +
DMX IN -
DMX IN shield
LED-Sync OUT +
LED-Sync OUT -
LED-Sync shield
LED
POWERdrive 45D
12-32V / 45W Constant current LED driver
technology
Group
1+
1-
2+
2-
3+
3-
4+
4-
NTC+
NTC-
