Connecting Aria 8

1

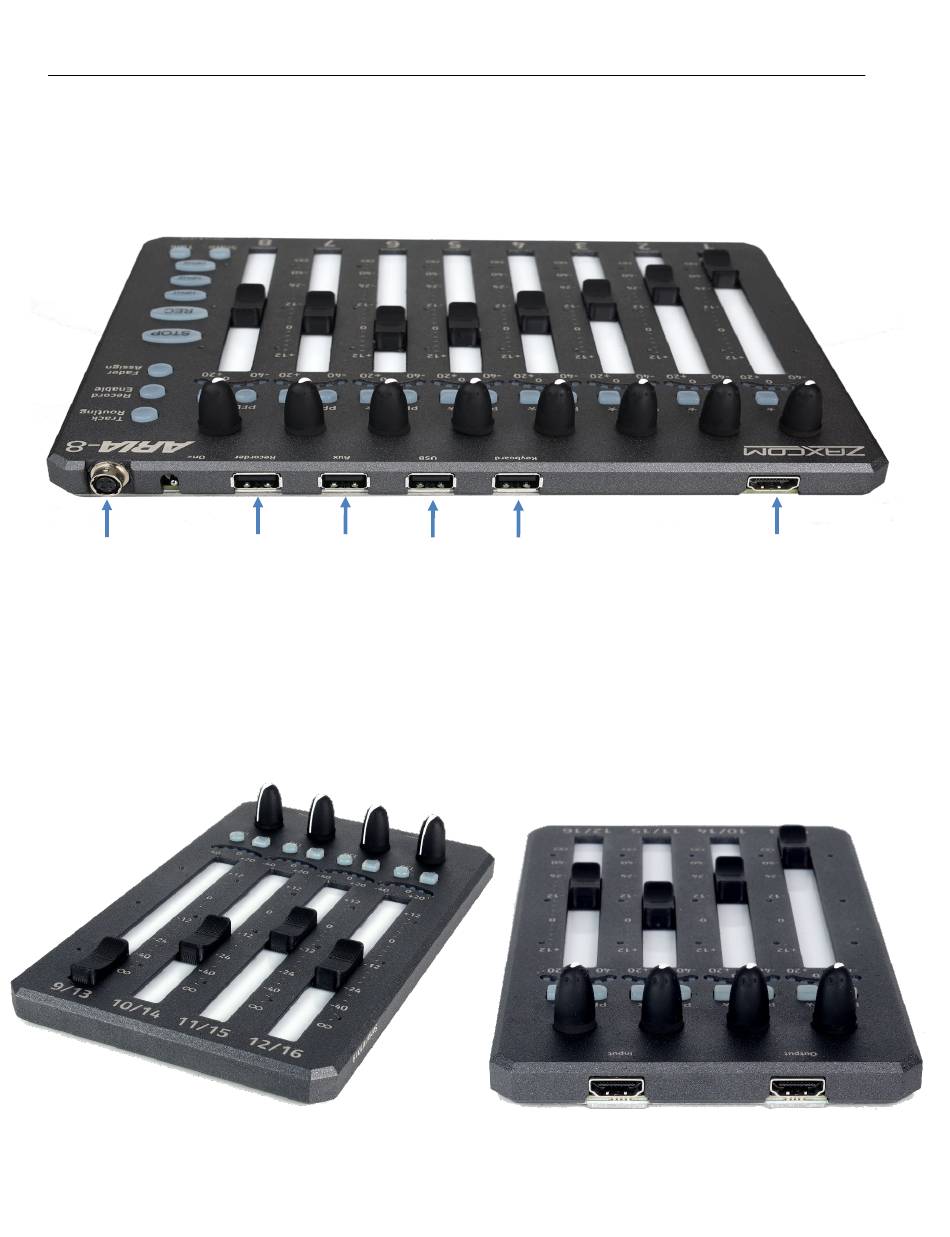

1. Power Input (Hirose 4 female) - Aria 8 will accept 8 to 18 volts DC.
2. Recorder (USB) - Connects Aria 8 to Nova.
3. Aux - USB connection for future expansion.
4. USB - USB connection for nova touch.
5. Keyboard - (USB) - For a hardwired or wireless USB keyboard gets connected.
6. Aria 4 connection (HDMI) - Connects Aria 8 to the Aria 4 Input connector. An additional Aria 4 can be connected
from the output of the Aria 4 to the input of the second Aria 4.
2 3 4 5
4
Aria
6
