Change Batteries - WEBTEC HPM110 Operation Manual

Operation
4.15

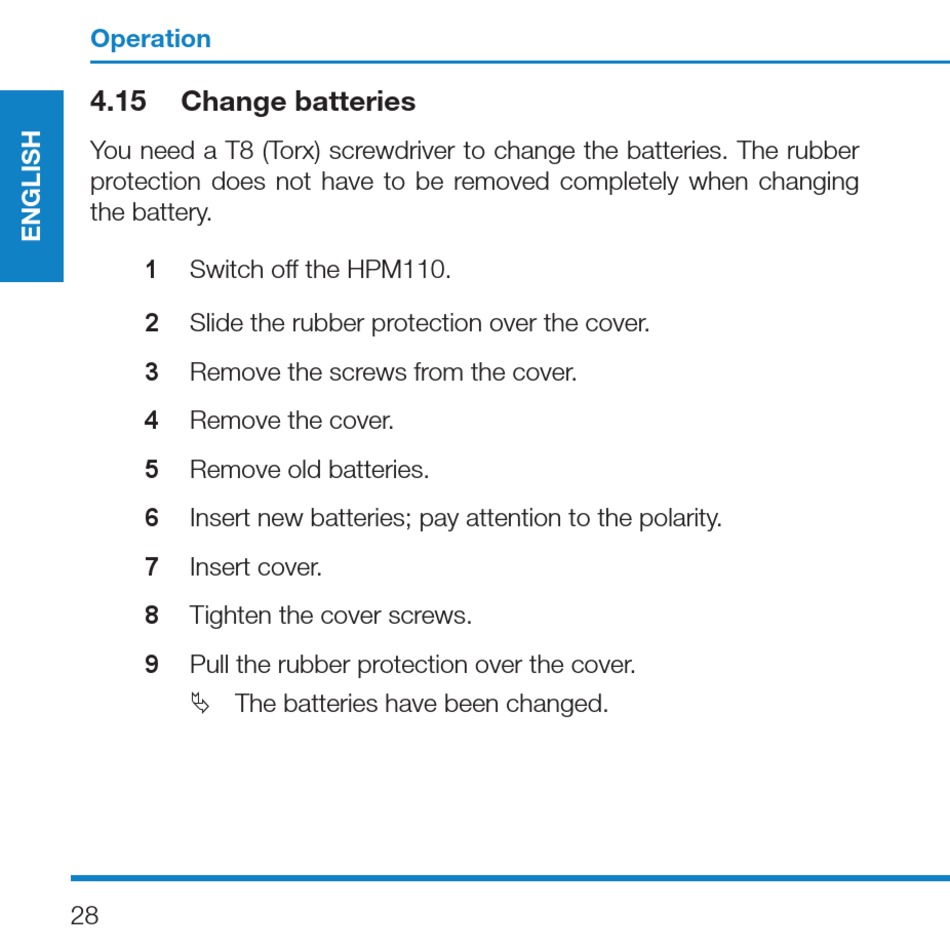

Change batteries

You need a T8 (Torx) screwdriver to change the batteries. The rubber
protection does not have to be removed completely when changing
the battery.
1
Switch off the HPM110.
2
Slide the rubber protection over the cover.
3
Remove the screws from the cover.
4
Remove the cover.
5
Remove old batteries.
6
Insert new batteries; pay attention to the polarity.
7
Insert cover.
8
Tighten the cover screws.
9
Pull the rubber protection over the cover.
Ä The batteries have been changed.
28
