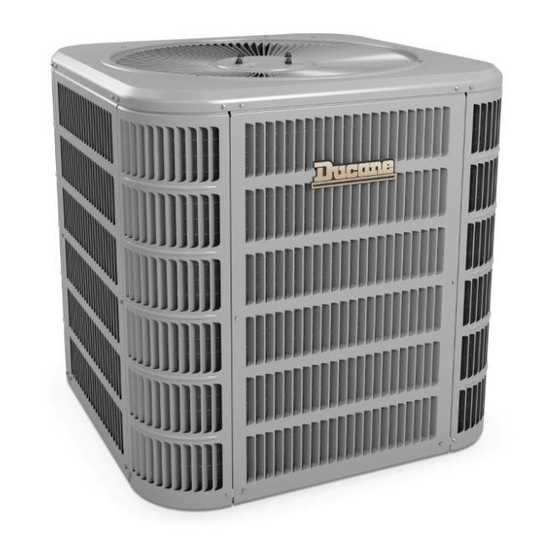

Split System Air Conditioner
• R410a Refrigerant
• High-quality condenser coil with
copper tubing and enhanced
louvered fin for maximum heat
transfer capacity
• Top discharge directs hot air away
from living area and shrubbery
• All units factory run tested
• Available with louvered panel or
wire guard coil protection option
• Easy access to electrical panels
• Hinged control panel allows simple
access to internal components
• 45-degree service valves for easy hook-up
and service
• Liquid line filter drier in every unit
(factory installed)
• Charged for 15 feet of interconnecting
tubing
• Liquid line filter drier installed in every unit
• All units ETL, ETLC approved and ARI listed
• 10 year limited parts warranty available
4 AC1 3
Features and Benefits
L Model
B Model
13
seer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ducane 4AC13
Summary of Contents for Ducane 4AC13

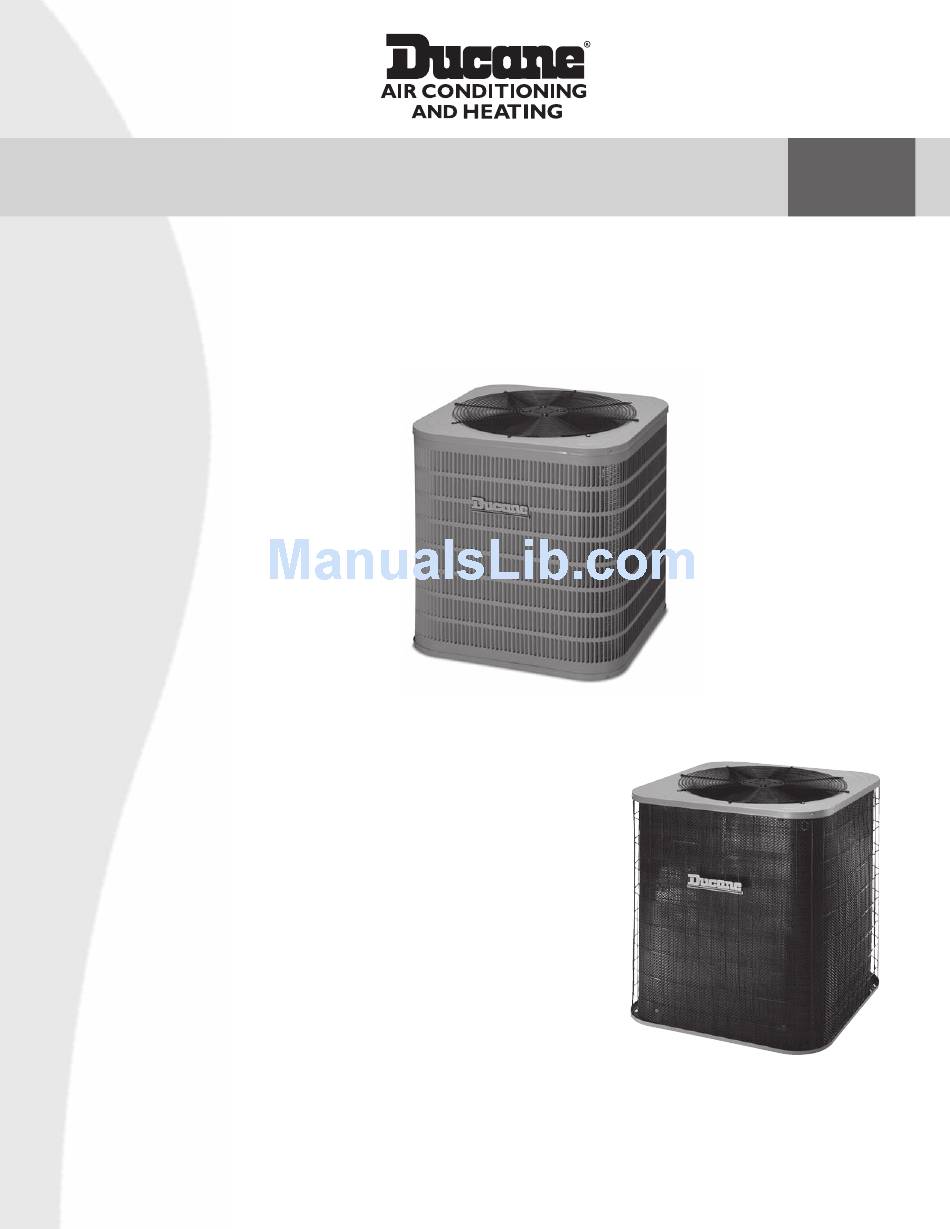

- Page 1 Split System Air Conditioner • R410a Refrigerant • High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity • Top discharge directs hot air away from living area and shrubbery • All units factory run tested • Available with louvered panel or wire guard coil protection option • Easy access to electrical panels • Hinged control panel allows simple access to internal components • 45-degree service valves for easy hook-up and service • Liquid line filter drier in every unit (factory installed) • Charged for 15 feet of interconnecting tubing • Liquid line filter drier installed in every unit • All units ETL, ETLC approved and ARI listed • 10 year limited parts warranty available 4 AC1 3 Features and Benefits L Model B Model seer...
- Page 2 4AC13 Split System Air Conditioner Model Number Guide Refrigerant – R410a AC = Condenser 13 - 13 SEER Nominal Family / Coil Protection B = Non-Louvered L = Louvered Electrical and Physical Data Voltage/ Hz/ Model Phase 4AC13(B,L)18P-1A 208-230/60/1 4AC13(B,L)24P-1A 208-230/60/1 4AC13(B,L)30P-1A 208-230/60/1 4AC13(B,L)36P-1A 208-230/60/1...
- Page 3 E(C,H,U)1P49NC 4AC13(B,L)48* E(C,U)1P60ND E(C,H,U)1P62NC E(C,H,U)1P62NC 4AC13(B,L)60* E(C,H,U)1P49NC E(C,U)1P60ND Certified in accordance with Unitary Air Conditioner Certification Program, which is based on ARI Standard 210/240. Required to achieve ARI rating. 4AC13 Split System Air Conditioner Rated Rated SEER Sensible Capacity Capacity 13.00...
- Page 4 RBCS2M36V****P RBCS2M42****P 4AC13(B,L)42 RBCS2M42V****P RBCS2M48****P 4AC13(B,L)48 RBCS2M48V****P RBCS2M60****P 4AC13(B,L)60 RBCS2M60V****P Certified in accordance with Unitary Air Conditioner Certification Program, which is based on ARI Standard 210/240. Required to achieve ARI rating. Rated Rated SEER Factory Sensible Capacity Installed Capacity 13.00 11.50...
- Page 5 EC1P42 80/67 75/63 85/72 4AC13(B,L)48 EC1P48 80/67 75/63 85/72 4AC13(B,L)60 EC1P62 80/67 75/63 4AC13 Split System Air Conditioner Outdoor Temp - DB˚F Btuh Btuh Btuh 22,700 1.26 20,800 1.48 19,300 22,100 1.25 19,100 1.46 18,000 17,700 1.24 16,600 1.46 15,700 28,500 1.65 26,700...
- Page 6 4AC13 Split System Air Conditioner Accessories Kit Number 14W00 Compressor Sound Cover 14W01 Compressor Sound Cover 14W05 Crankcase Heater 14W04 Crankcase Heater 12W19 Hard Start Kit 12W20 Hard Start kit A4TX01 A4TX02 H4TX03 14W07 Short Cycle Protection 40K58 Blower Off Delay Kit...
